100HP Dewatering Pump Station Package w/ Weatherproof Enclosure

*Missing Main Pump for 100 hp Motor*
This 100HP Dewatering Pump Station Package is complete with a weather-proof, all-temperature enclosure with heating and ventilation, a separate electrical/control room, and a main mechanical room housing a 100HP dewatering pump assembly (Missing main pump).
This package is suitable for mining and water/wastewater applications.
Structural Specifications

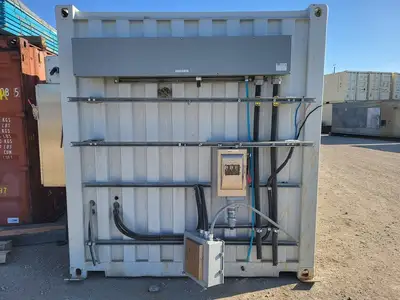

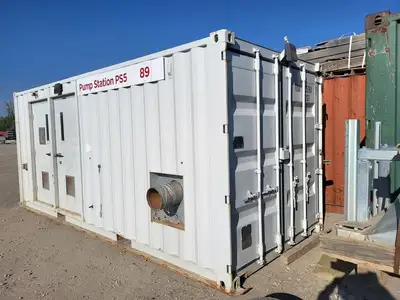

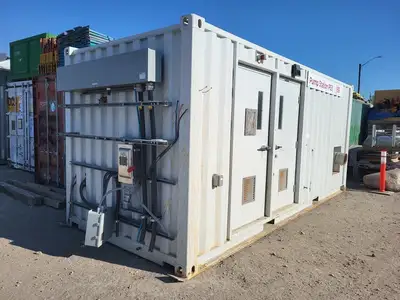

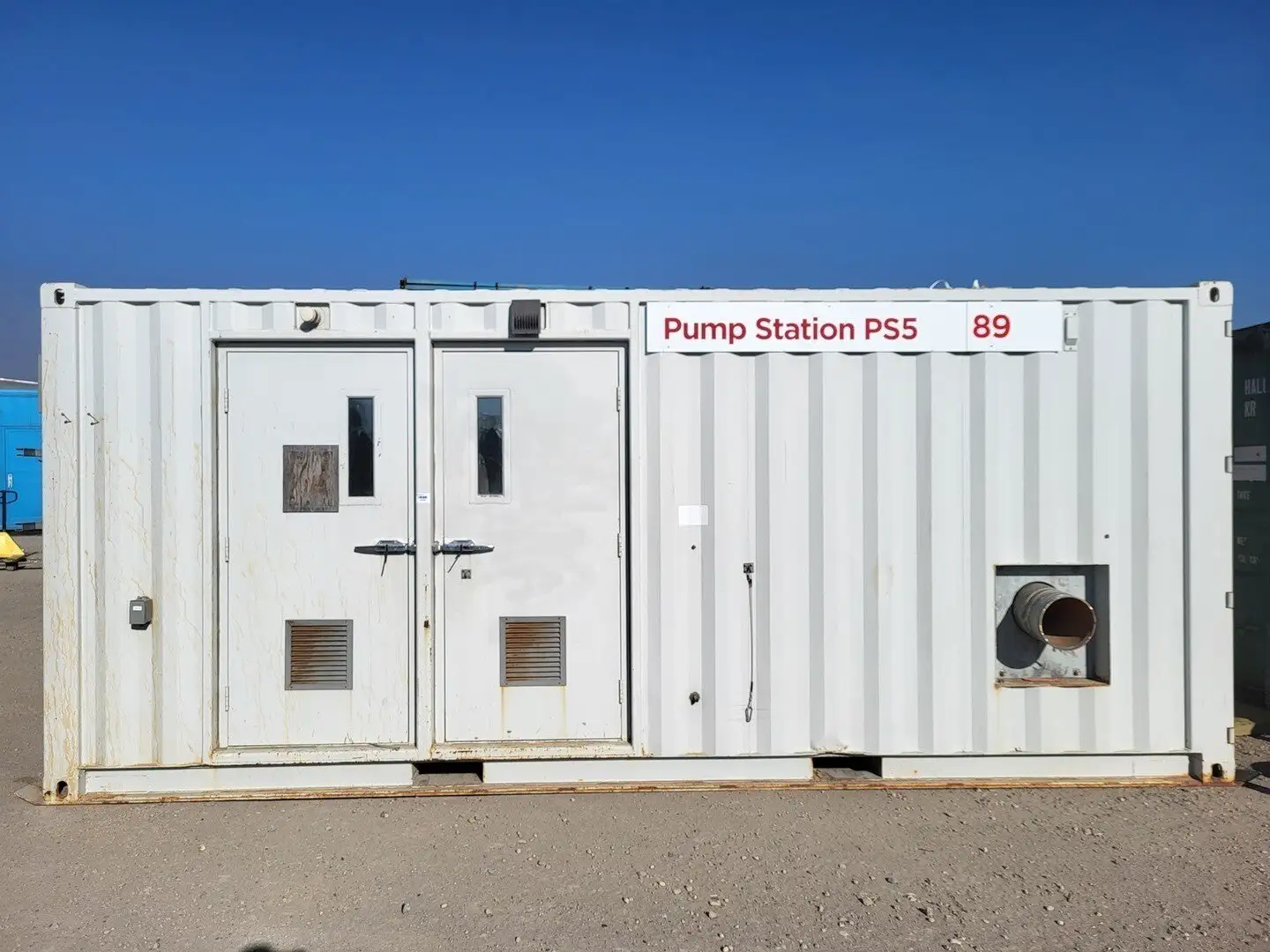

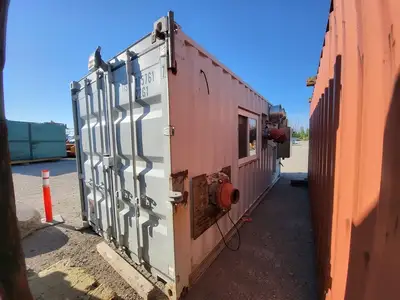

Container is a 255" x 120" x 110" (Outside) standard steel shipping container, metal-lined and insulated with a demising wall to divide the mechanical/electrical rooms
Separate insulated doors to the the mechanical/electrical rooms
The pumphouse is suitable for all-weather and temperatures between -50C to +30C
Walls, ceiling, and doors are finished with minimum 4" Thermawall (R32), secured to strapping welded throughout the interior of the container and doors
Mechanical room contains a 3ft. x 4ft. triple-pane window with a screen

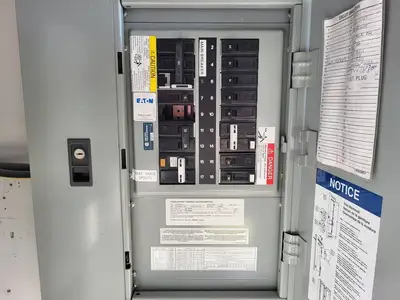

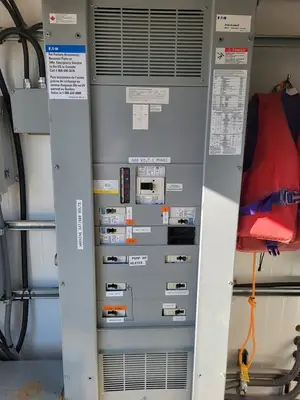

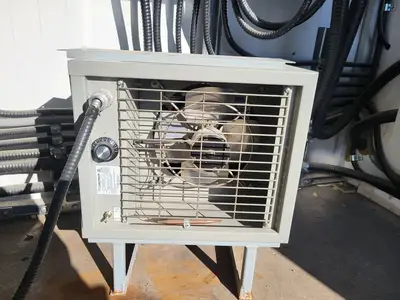

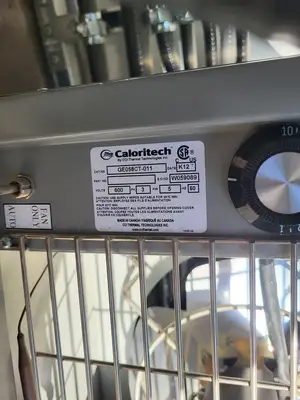

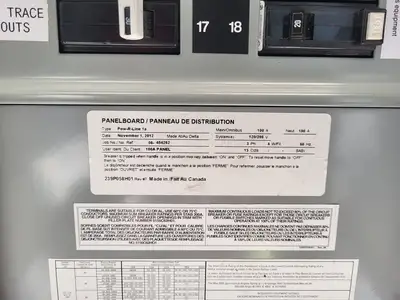

Structure contains an electrical panel with LED ceiling lighting ,switches, duplex receptacles, and 2 x 500W ceiling hung fan forced heaters with a fan-mode for warm weather
2 x 10" shutter mounted exhaust fans with back draft dampers
Undercarriage insulated with 4" polyurethane spray foam
Overhead service monorail, 1T (2200lbs)

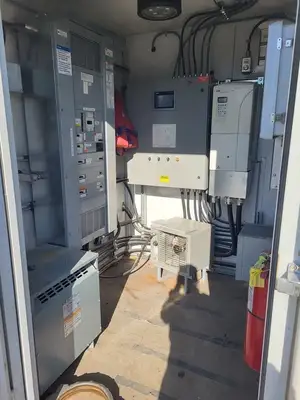

Electrical Room Components

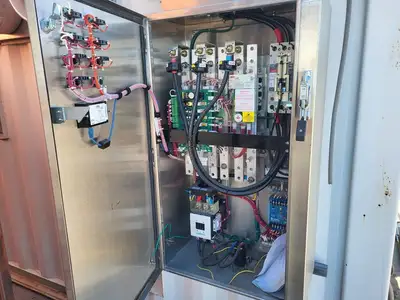

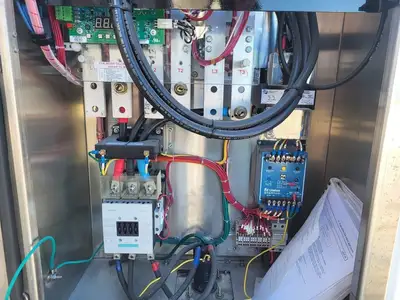

Control panel /w Siemens PLC, HMI control relay to operate jockey, pump control & miscellaneous control components and wiring materials
PLC program to operate pump systems
Transformer 600V/120-208V, 20kVA

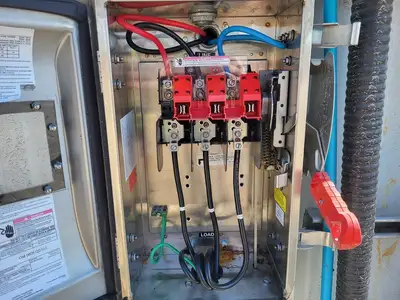

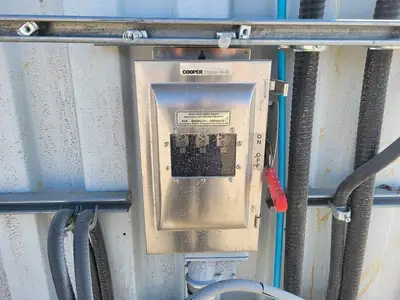

60A, 600V receptacle and circuit breaker
Pressure transducer
Junction box
100HP ABB VFD Model ASC800-U1 w/ line reactor, load reactor and line side fused disconnect device

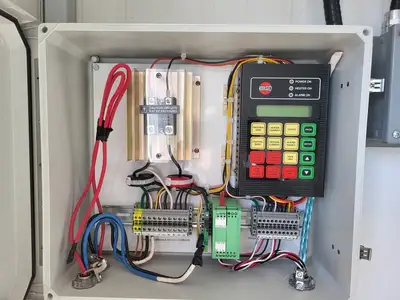

Electronic thermostat Model UTC-2030-13 w/ ground fault detection circuitry, 120-240VAC, 30A, 2-Poles in a NEMA4 painted steel enclosure
System engineering; system operation/design/drawing/manual/system software and program

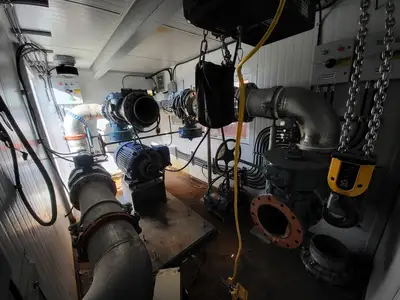

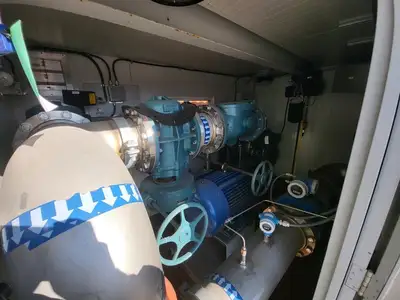

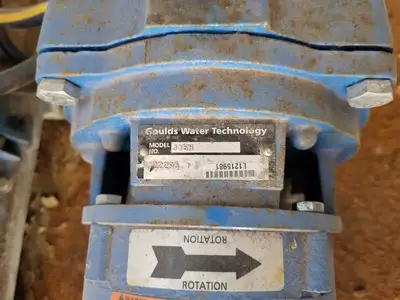

Mechanical Room Components

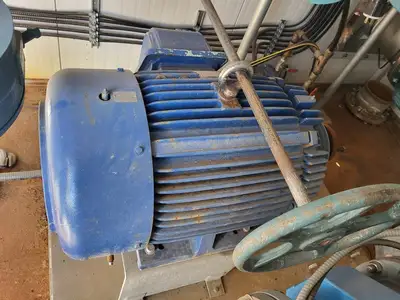

100HP, 1800RPM, 575/3/60, TEFC, 405T frame, TECO/Westinghouse Motor Advantage Plus IEEE 841
V-belt driven complete with baseplate and fabricated steel guard

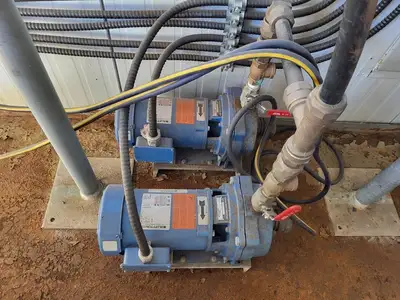

2 x AY McDonald convertible jet pump Model 8611 w/ 1HP 230/1/60 motor

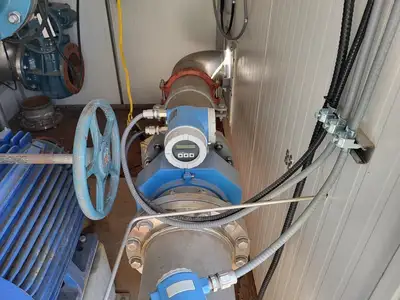

Endress-Hauser magnetic flowmeter Model 50W2F-ULHA1R10BAAA1, 10" 150# RF ANSI CS flange connections, alloy 22 bullet nose measuring electrodes, polyurethane line, 316SS grounding rings and strap kit, NEMA4X and IP67 junction box, 1/2" NPT conduit holes, standard factory calibration
Endress-Hauser integral converter, configurable graphical and alphanumeric display, NEMA4X enclosure, 1/2" NPT conduit holes, 100-230VAC power, outputs 4-20mADC, HART, ambient temperature range -20C to 60C

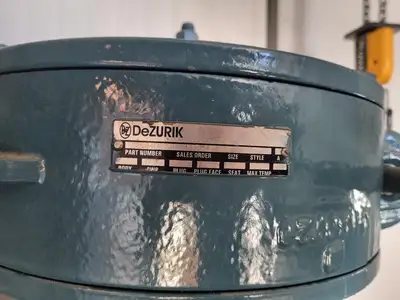

DeZurik 10" Knife Gate Valve

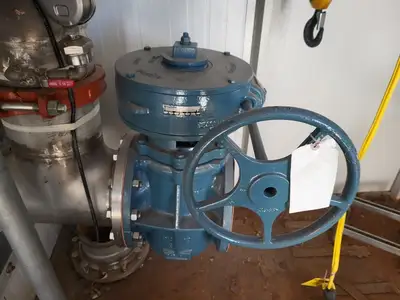

DeZurik 10" Pug Valve
CRF Flapper Check Valve
TOYO 1" Gate Valve

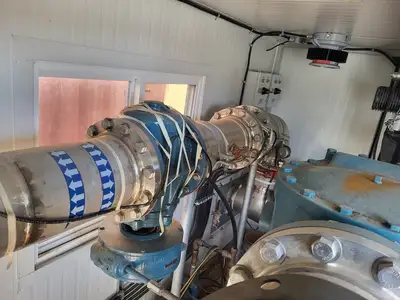

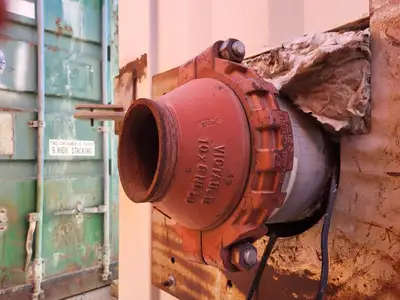

10" Shurjoint Flex Coupling

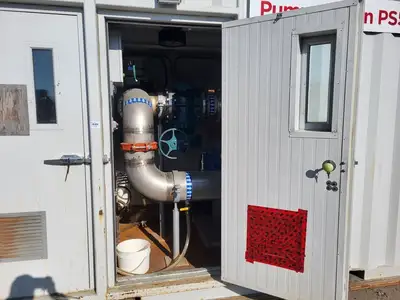

All hard piping is 10", schedule 40, 304SS pipe
SUPPORTING DOCUMENTS
Pumphouse Assembly Plan & Components List
Pumphouse Operation Plan
100HP Motor Datasheet
Electrical Installation Plan
