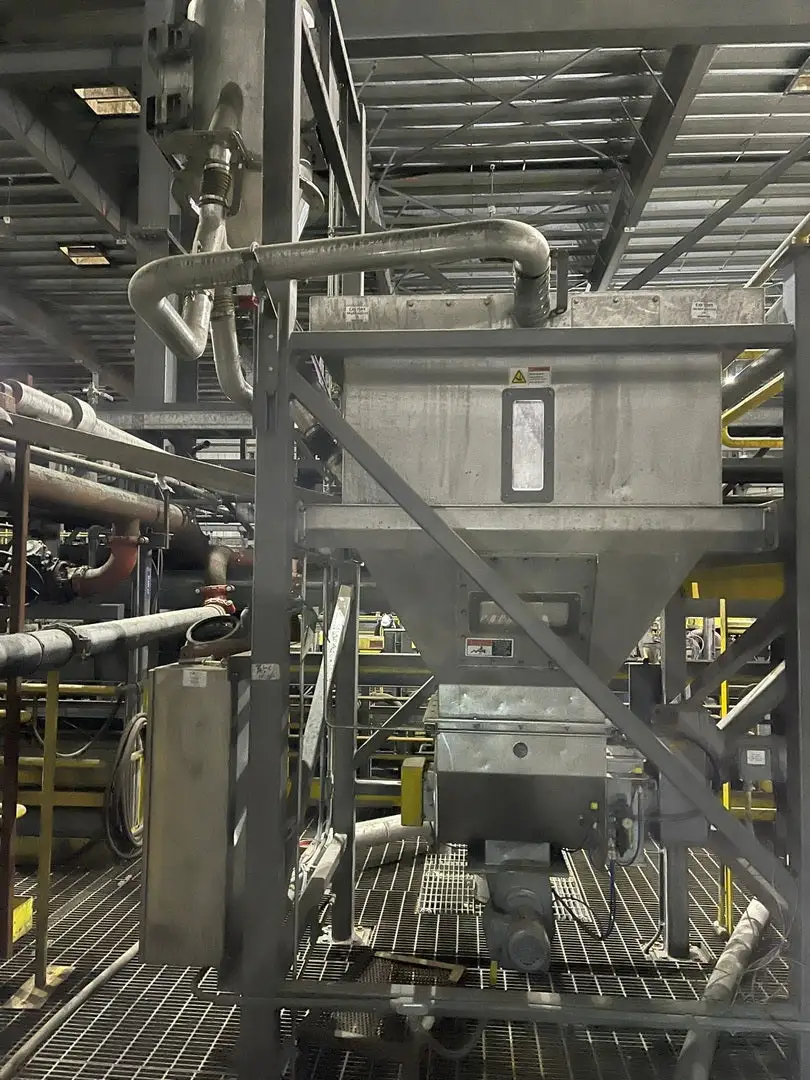

Stainless Steel Super Sack Bag Unloading System w/ Dust Collector & Push Control

Previous Application: Was used for Sodium Metabisulphite processing
Material: Stainless Steel
Density: 1.48 SG, 92 PCF
Bag Design: 1 ton bulk bag, flat bottom, 31 CF
Hopper Total Air Volume: 58 CF

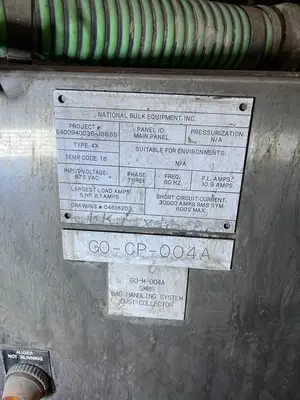

Input voltage: 575 volts
Phase: 3
FLA: 10.9 A
Largest Load Amps: 5 hp, 6.1 A
Short circuit current: 30 kA
Control Enclosure Type: 4X
Dust Collector
Type: Reverse pulse jet
Capacity: Rated to 300 CFM @ 6" w.c.
Filter Cartridge:
(1) 12.5" diameter x 26" long pleated filter cartridge
Filtration surface area of 75 sq. feet

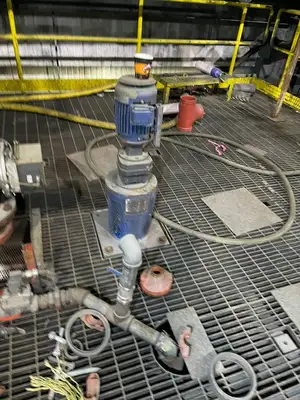

Motor: 1 hp, 575 V, 3-ph, 3600 rpm
Fan: 150 CFM @ 6" w.c.
