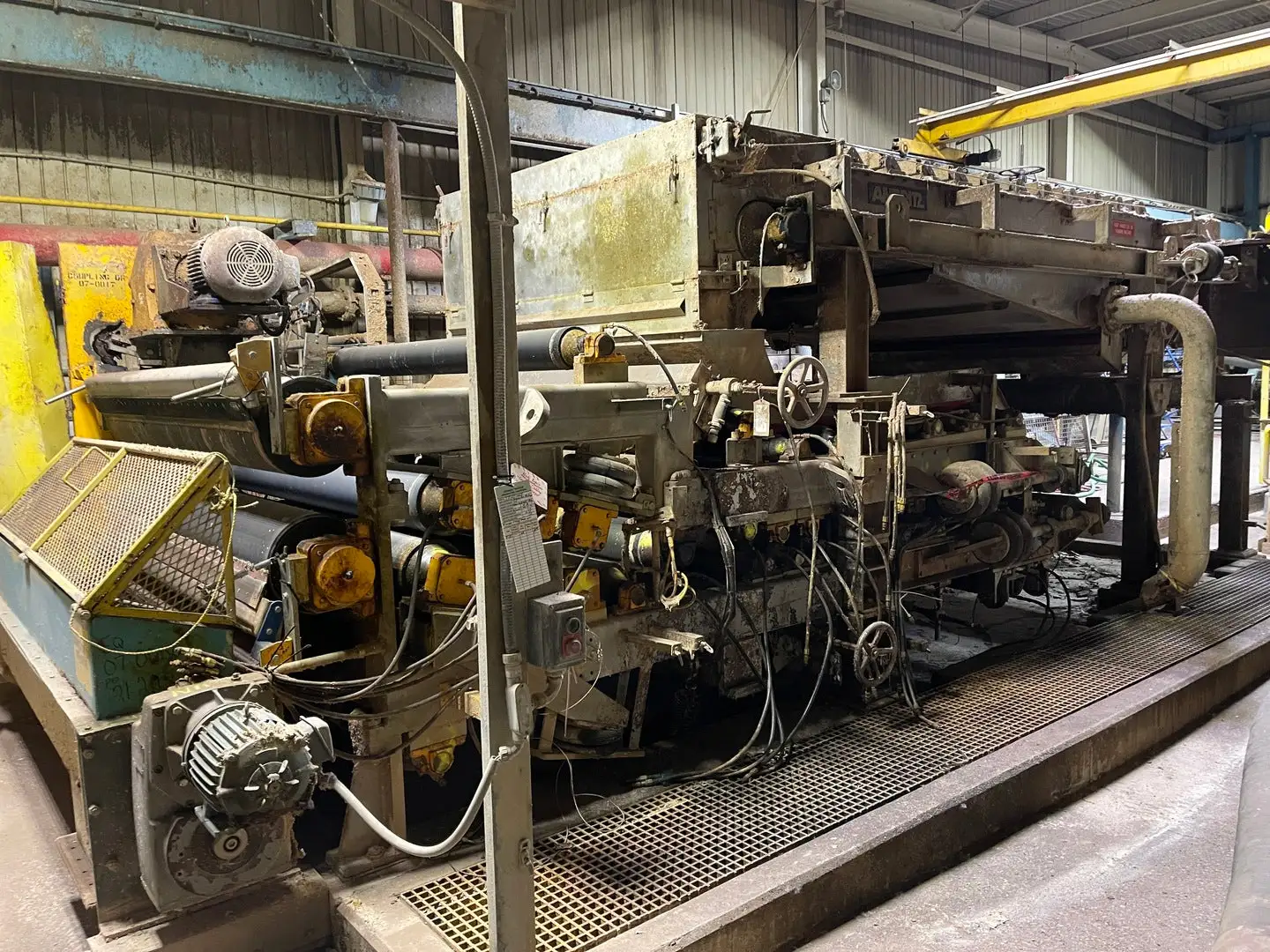

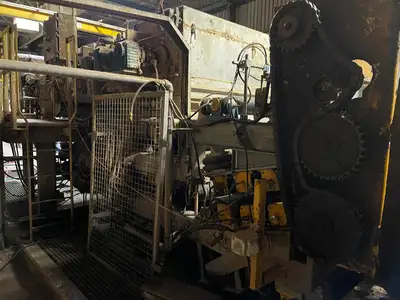

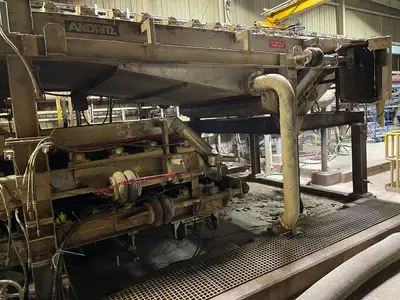

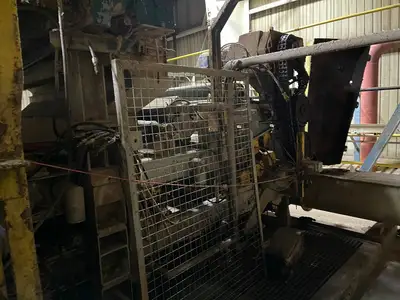

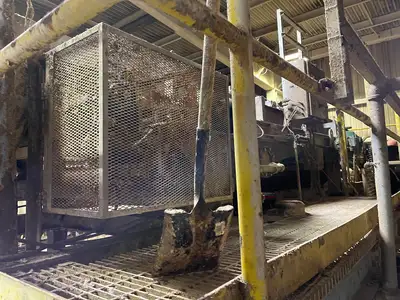

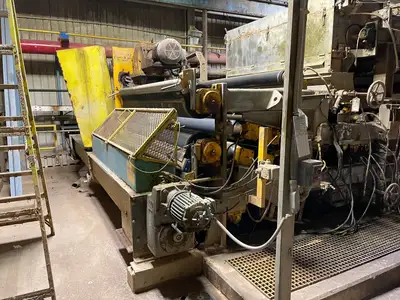

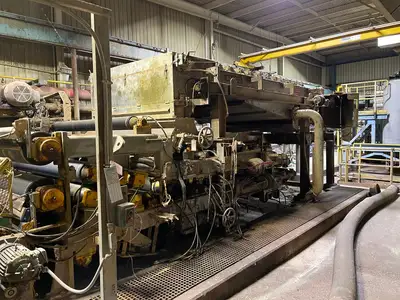

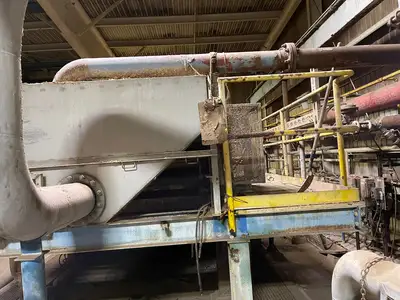

USED ANDRITZ CPF 2.0 METER SMX-P3

Water Treatment Building Preservation Route Diagram
Sludge Press Rubber Clad Rolls Diagram #1
Sludge Press Rubber Clad Rolls Diagram #2
Type of sludge: 90% fiber from CTMP pulp mill
Inlet consistency: 3% DS
Working width: 2,000 mm
Distance between bearing centres: 2,700 mm
Weight: 13 tons (approx)
Dimensions:
Length: 5,000 mm
Width: 3,500 mm
Height: 2,300 mm
Additional space required for belt changing: 5,000 x 2,500 mm
CPF clothing:
Belt width: 2,100 mm
Top belt length: 10,600 mm
Bottom belt length: 11,300 mm
