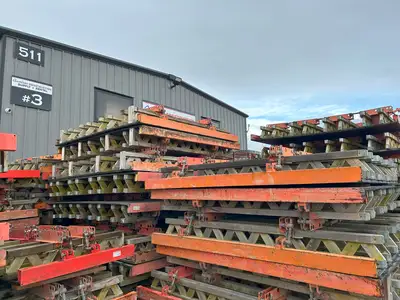

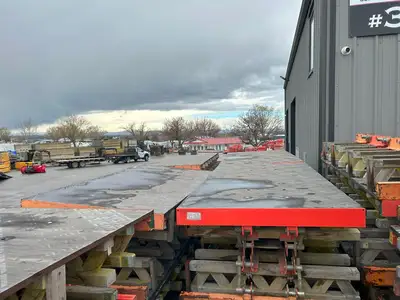

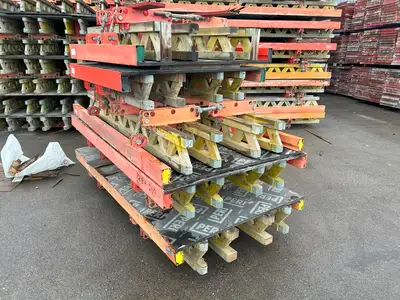

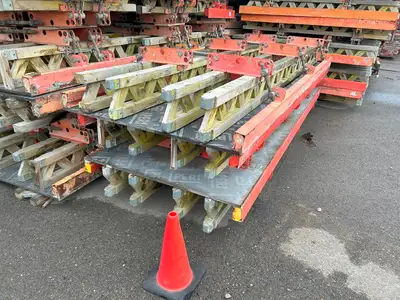

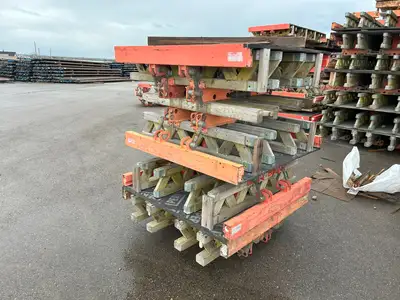

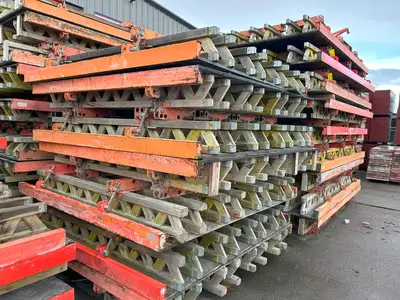

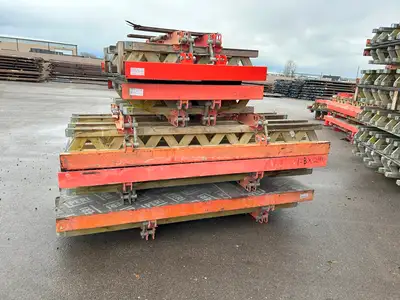

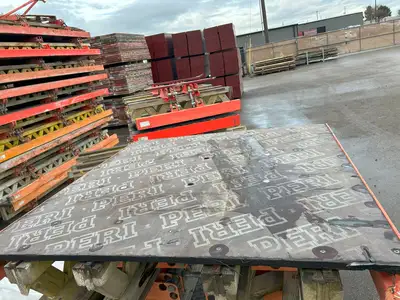

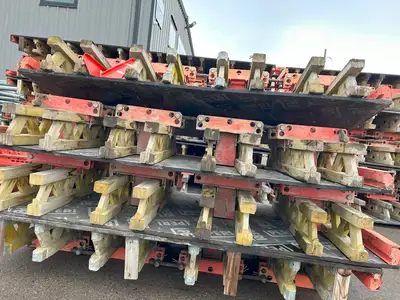

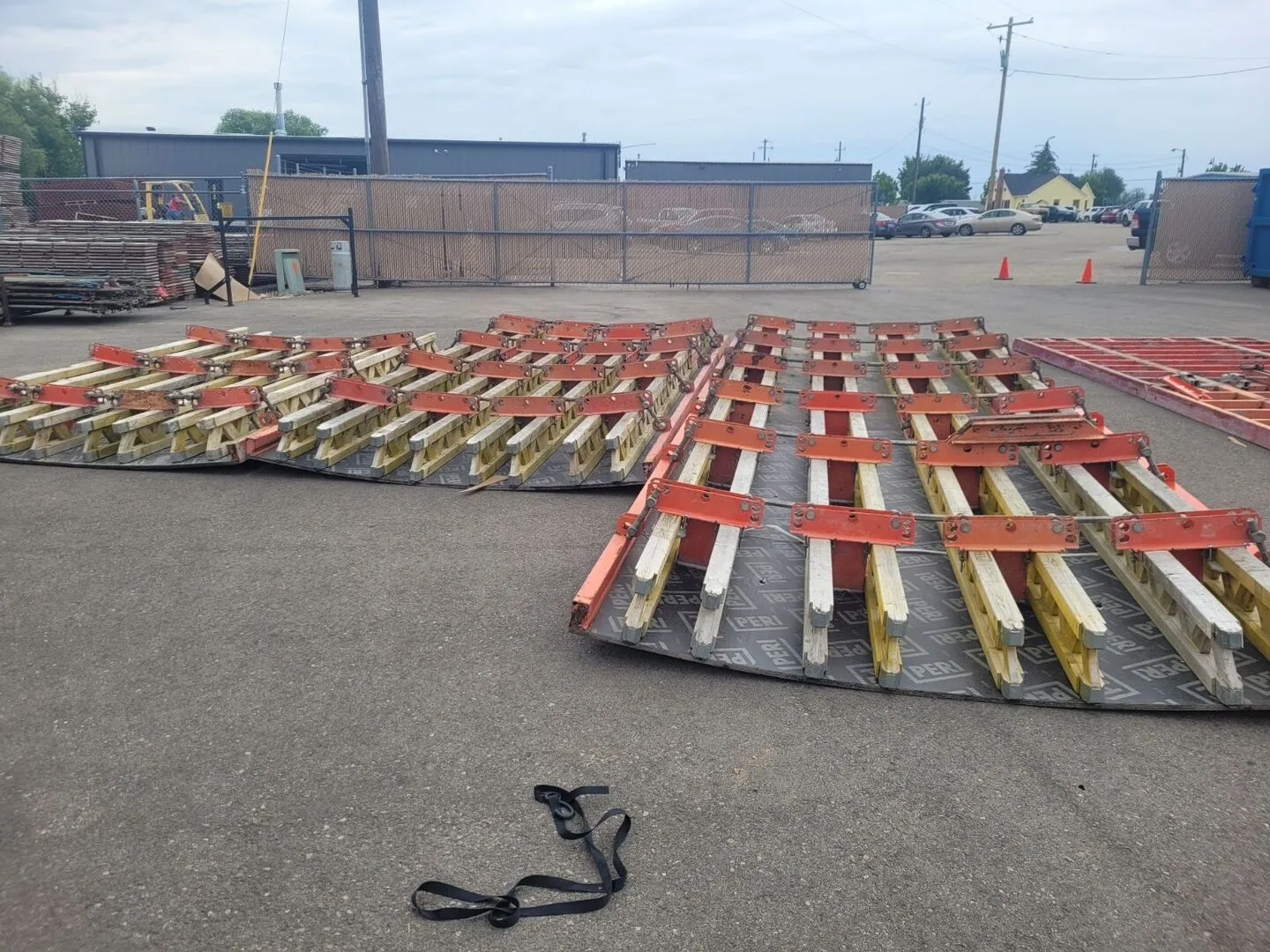

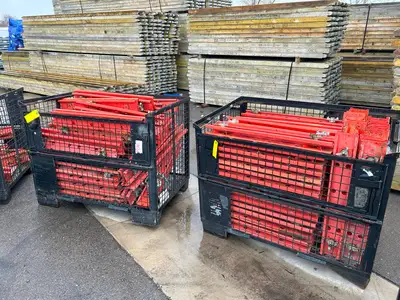

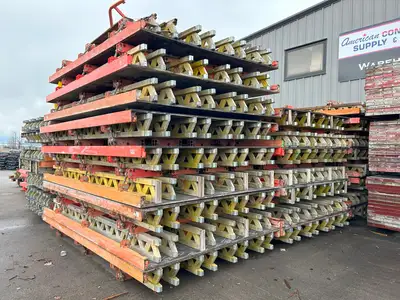

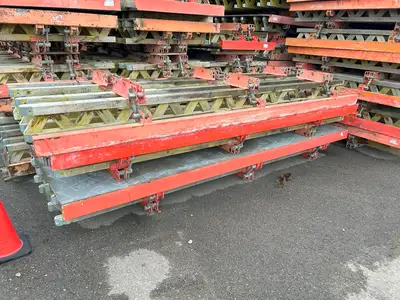

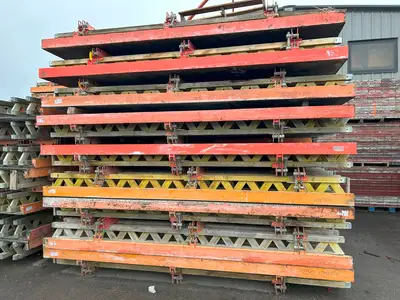

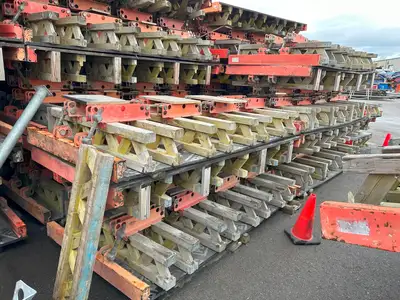

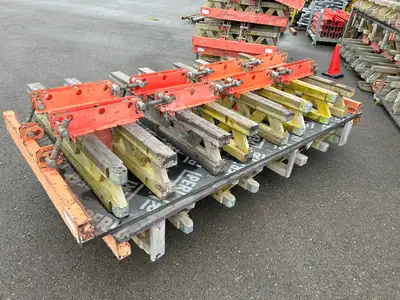

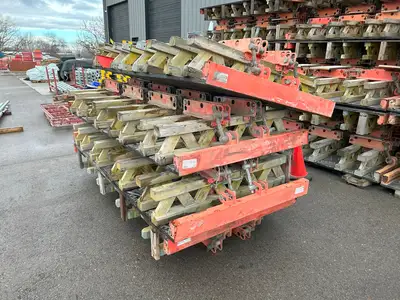

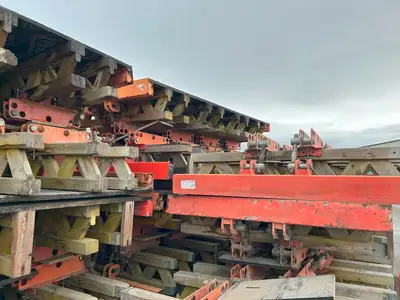

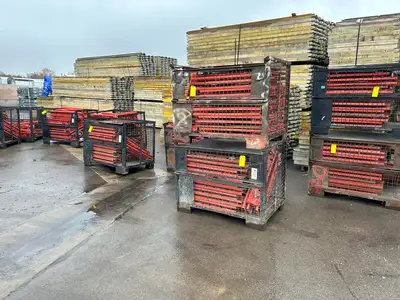

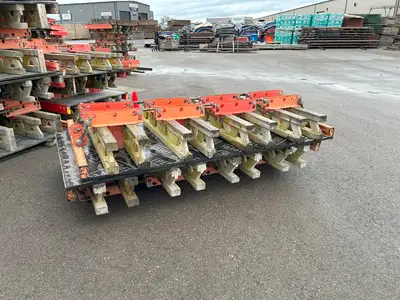

RUNDFLEX Circular Wall Formwork Continuous and quickly adjustable circular wall formwork for radii with diameters greater than 1.00 m The RUNDFLEX wall formwork provides pre-assembled standard panels for curved walls. These can be quickly adjusted to suit the required radius and without any modification work on the panel. Therefore, RUNDFLEX is especially effective for realizing structures such as wastewater treatment plants, spiral ramps for multi-storey parking facilities or silos where radii are constantly changing.
COMPONENT ITEMS: (Description // Qty)

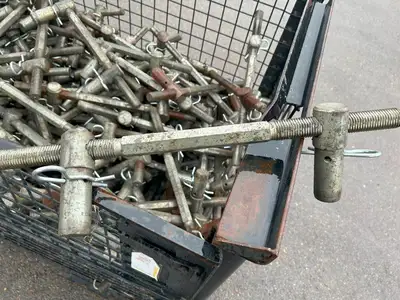

ADJUSTING SPINDLE 500 // 192
CRANE SPLICE GT 24 // 40
DISTRIBUTION WALER // 400
GIRDER HEADPIECE GT 24 // 56
GIRDER HEADPIECE GT 24/A // 28
HOOK TIE DW15 L=400MM // 32
RATCHET SPANNER SW 24 // 1
RUNDFLEX ELEMENT IN 123/120 2R // 1
RUNDFLEX ELEMENT IN 123/140 // 2
RUNDFLEX ELEMENT IN 123/360 // 2
RUNDFLEX ELEMENT IN 240/120 2R // 32
RUNDFLEX ELEMENT IN 240/240 // 16
RUNDFLEX ELEMENT IN 240/360 // 16
RUNDFLEX ELEMENT OUT 128/120 2R // 2
RUNDFLEX ELEMENT OUT 128/240 // 1
RUNDFLEX ELEMENT OUT 128/360 // 1
RUNDFLEX ELEMENT OUT 250/120 2R // 16
RUNDFLEX ELEMENT OUT 250/240 // 8
RUNDFLEX ELEMENT OUT 250/360 // 8
SCAFFOLD BRACKET GB 80 // 40

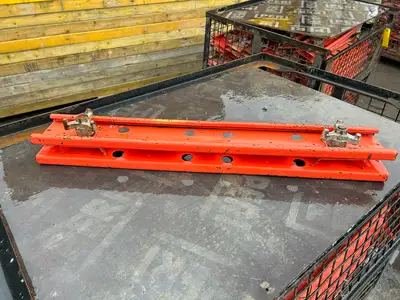

STEEL WALER SRU U120 L=1.47m // 16

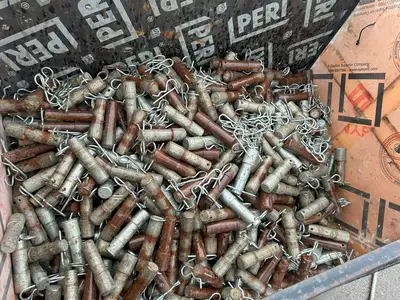

WALER BOLT F RUNDFLEX // 816
EXTENSION SPLICE 24-2 // 634

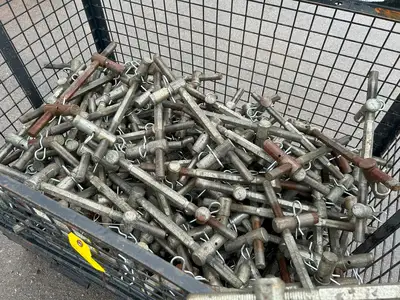

ALIGNMENT COUPLER BFD // 1637
7/8x3/4x65''/40'' TAPER TIE
WINGNUT PIVOT PLATE DW15
SCAFFOLD BRACKET GB 80
PUSH-PULL PROP RSS III
KICKER AV RSS III
BASEPLATE-2 F RSS
