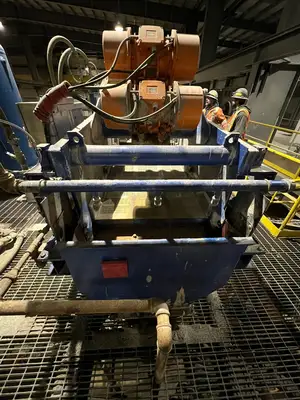

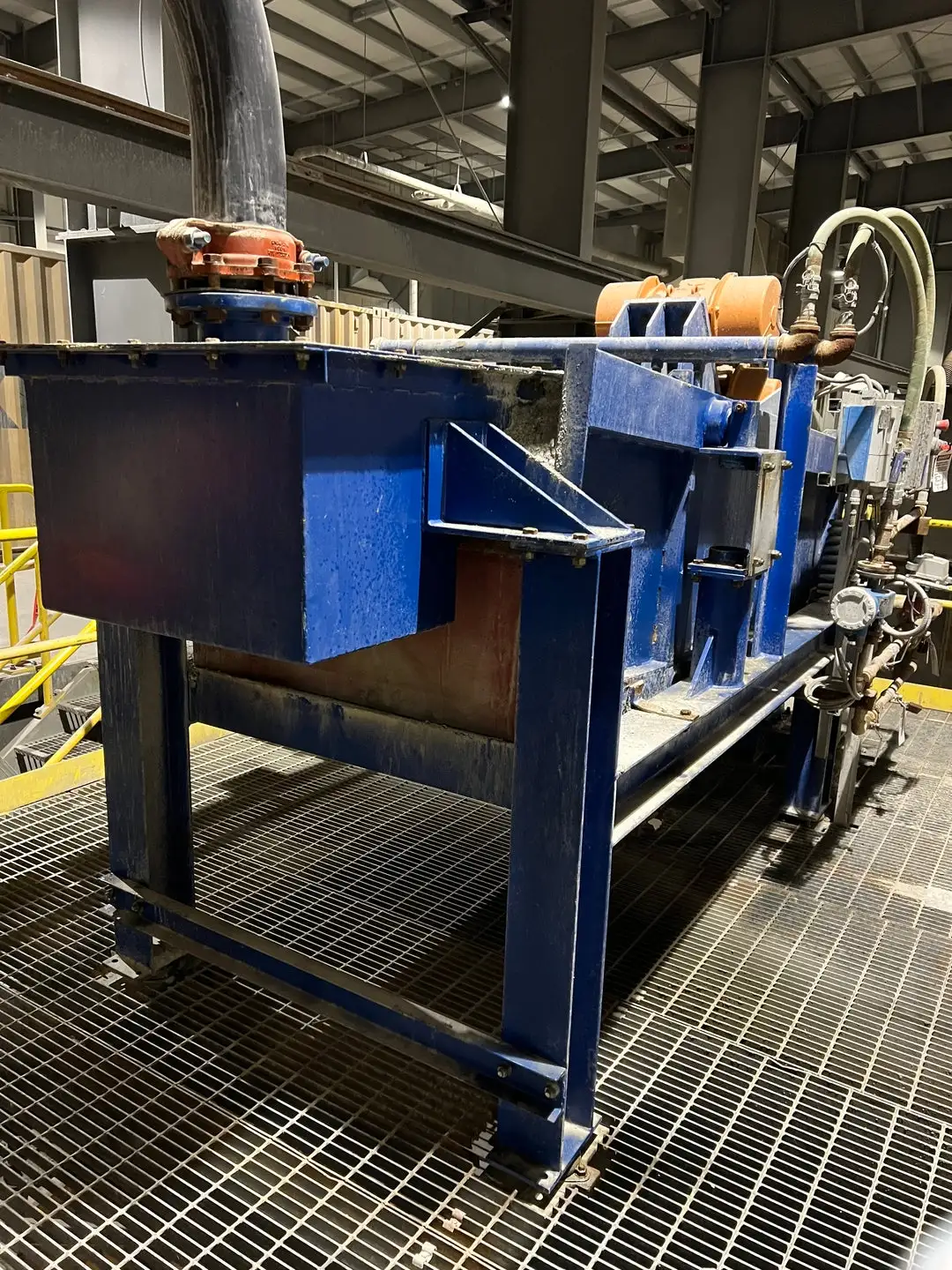

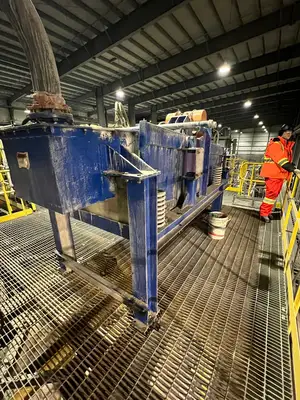

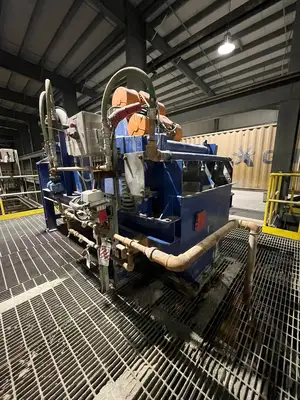

USED 2018 SIZETEC, INC. SDS38-6MV-5

Screen Description
Step deck screener consists of 4 steps.
Each step is fitted by (3) 1' x 2' modular screens side by side
Gives an overall width of 3 ft. and length of 8 ft.
Screen
Step Decks: 4
Screening Width: 3 ft.
Total Screen Length: 8 ft.
Stroke x Frequency: 4.5 mm x 1200 CPM
Vibrating Motion: 45" Upfront linear stroke
Dynamic Load: 502 kg (1108 lbs)
Total Weight: 2012 kg (4435 lbs)

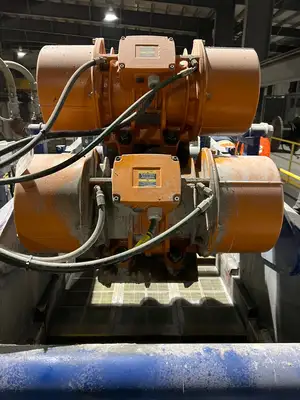

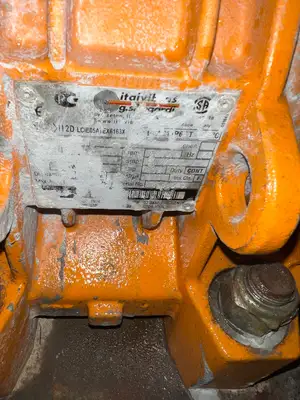

Vibrator Motor
Qty: 2
No.: MV12-6050
Horsepower: 2.3 hp
Speed: 1200 rpm
Voltage: 460 V, 3-ph
Max. Centrifugal Force: 6043 lbs
