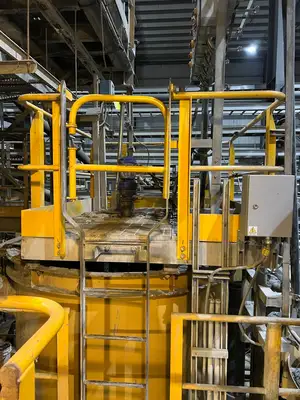

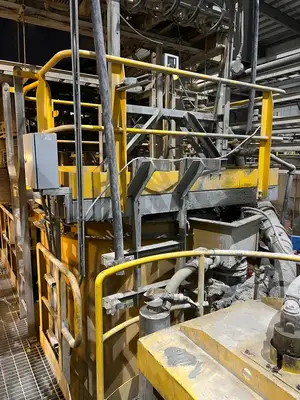

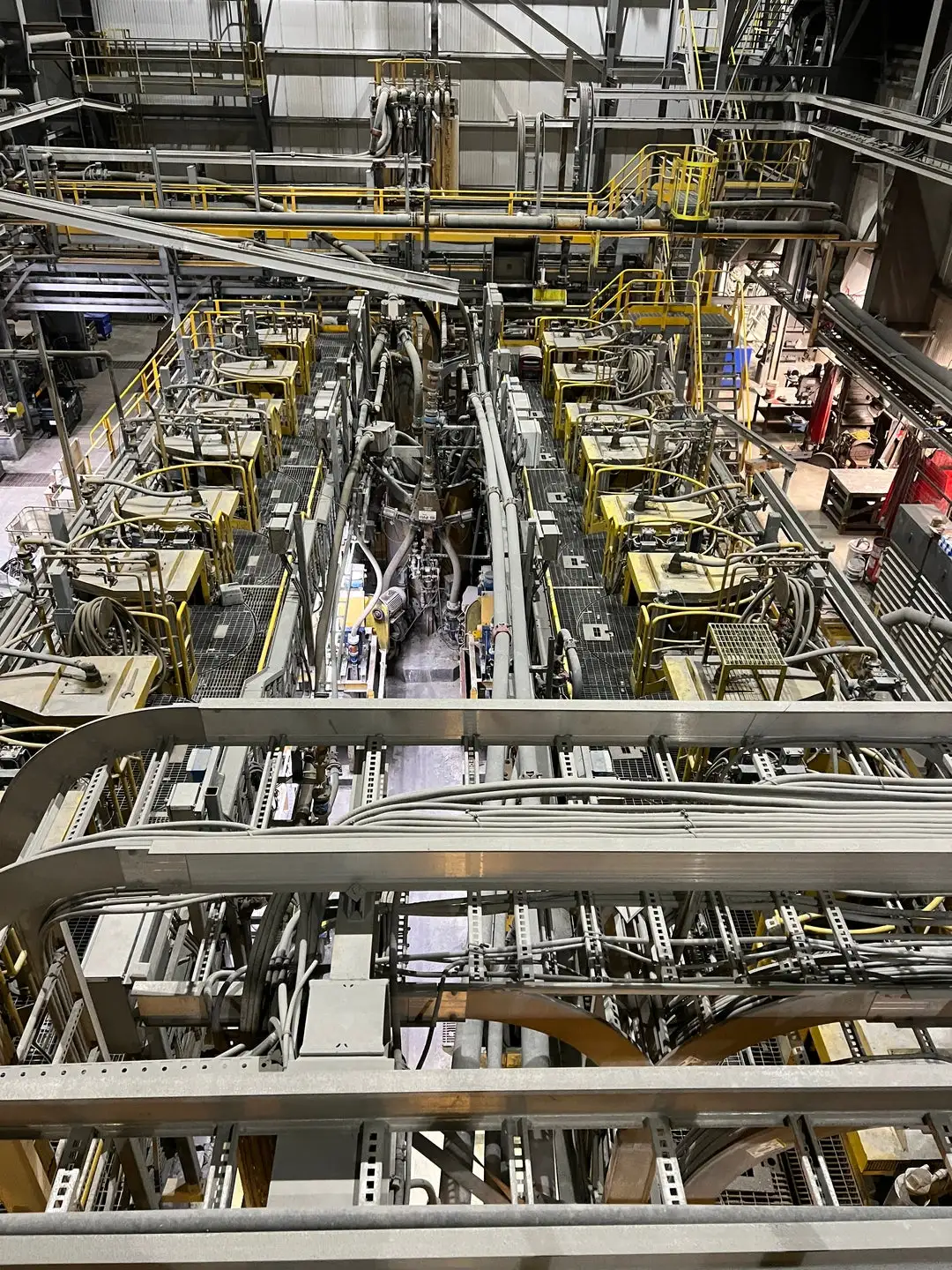

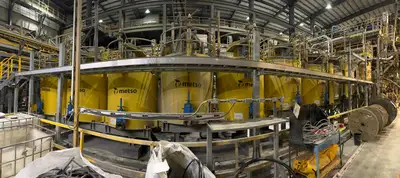

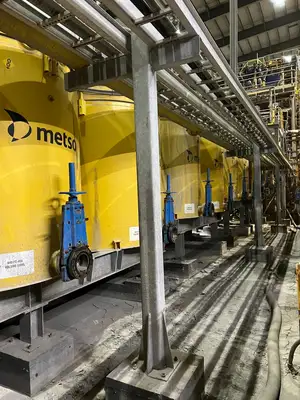

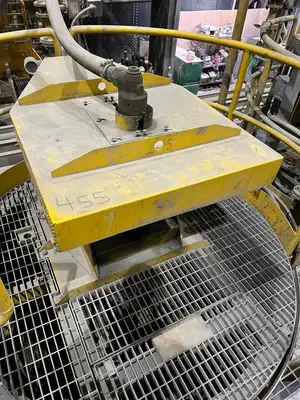

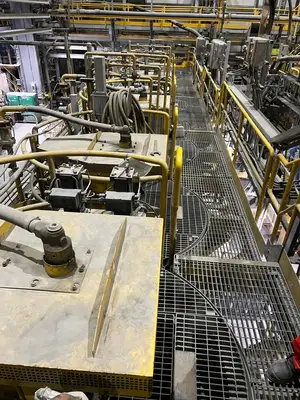

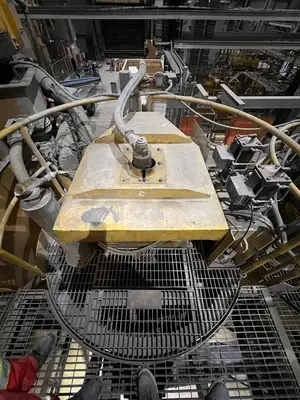

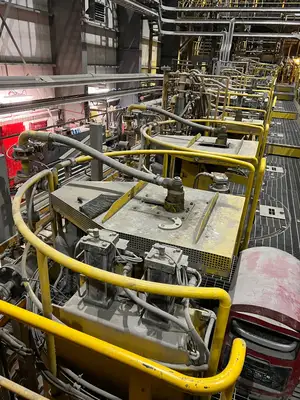

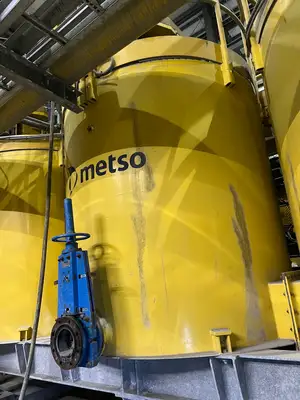

USED 2016 METSO RCS 5

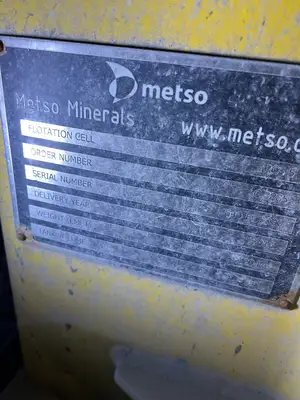

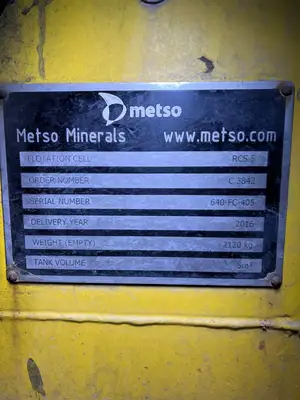

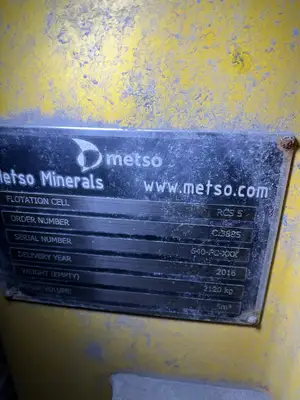

Project/Order No.: C.3842

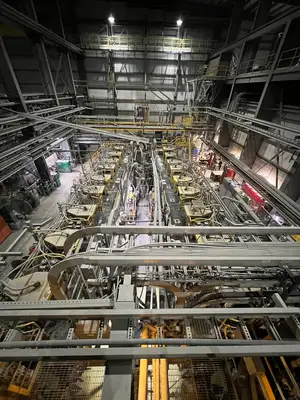

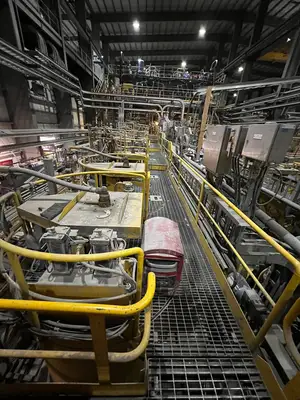

Number of lines: 1

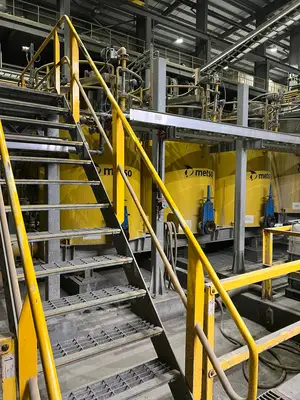

Number of cells/line: 9
Bank arrangement: FB-1-FB-1-FB-2-2-3-DB
Cell type: RCS 5
General Specifications
Tank Diameter: 2000 mm
Tank Height: 2076 mm
Cell/Tank volume: 5 m3
Cells, feed and discharge box lining: Rubber lined in high wear areas with Natural rubber.

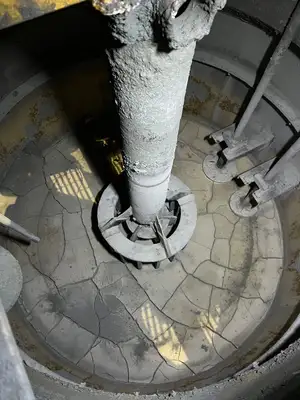

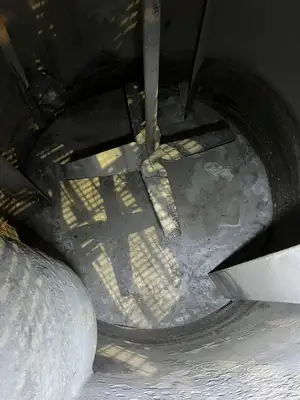

Impeller and diffuser material: Moulded polyurethane on carbon steel skeleton
Air requirement/bank: 27 Nm3 free air delivered at 19 kPag at shaft

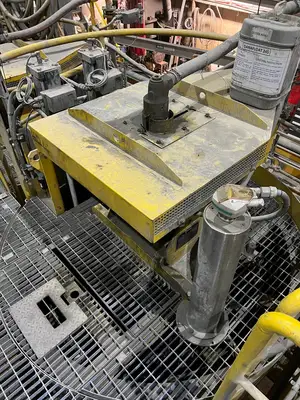

Motor/cell: 15 kW, 6-pole
Supply voltage : 575/600 V, 3Ph, 60 Hz.
Connections
Feed box, opening: 620 x 320 mm
Froth Outlet: 10" ANSI B16.5 150#
Air Control Flange: 2" ANSI B16.5 150#
Drain Flange: 6" ANSI B16.5 150#
