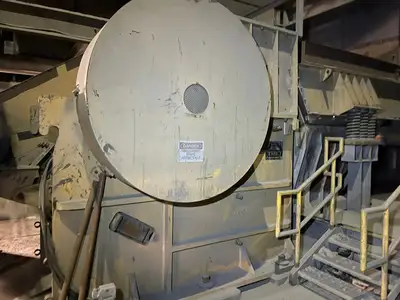

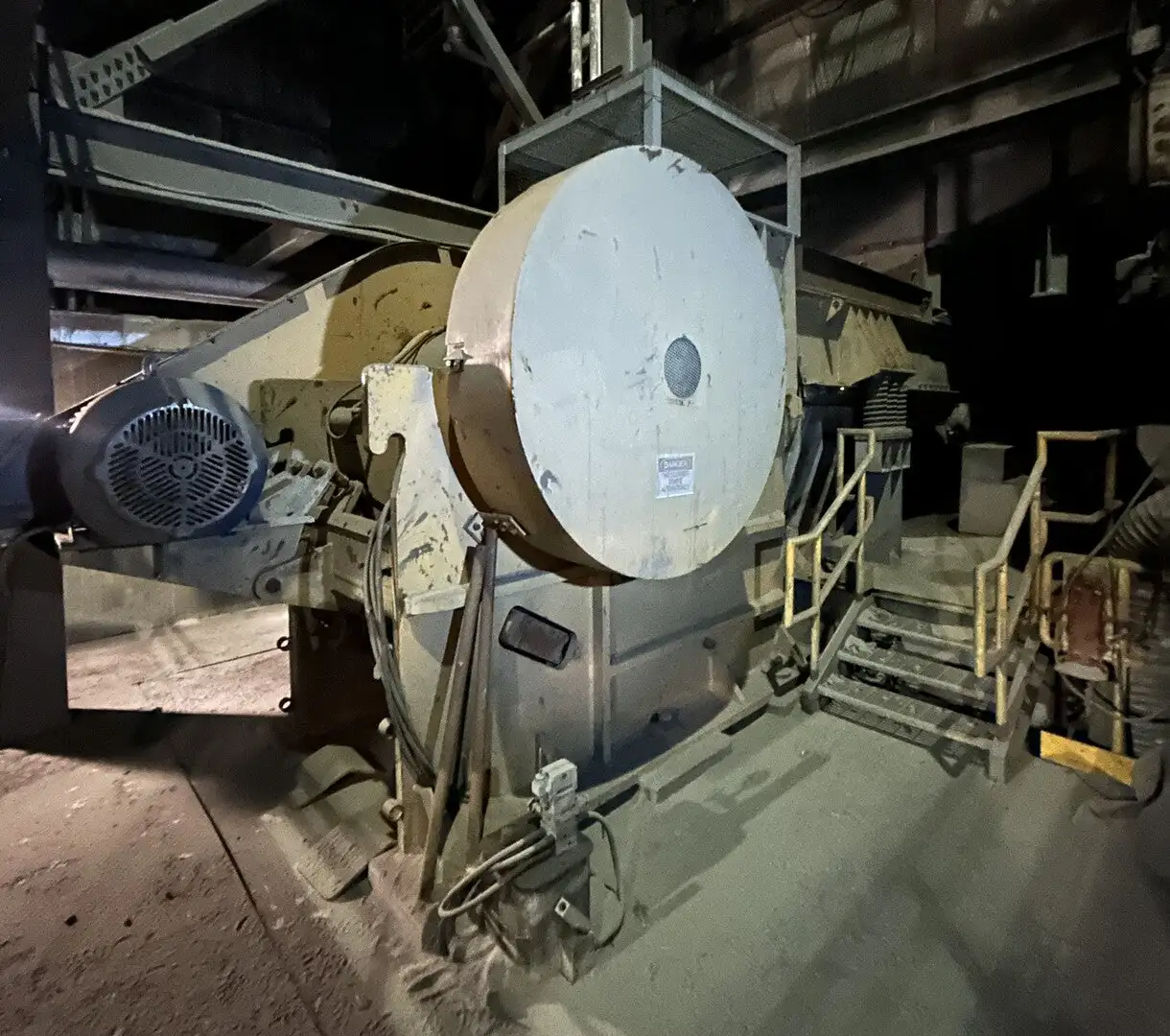

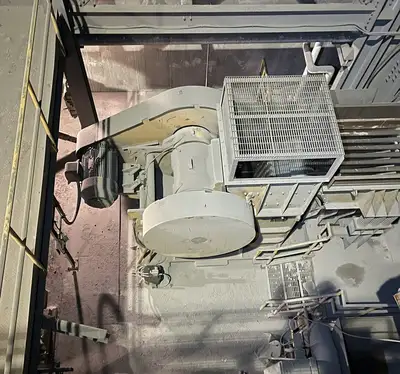

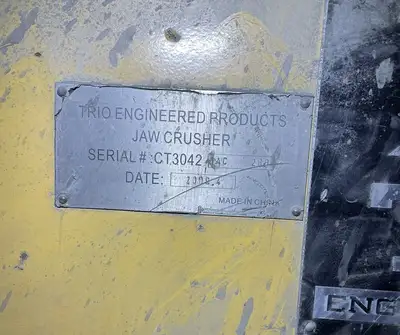

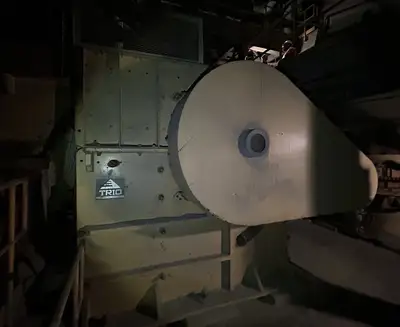

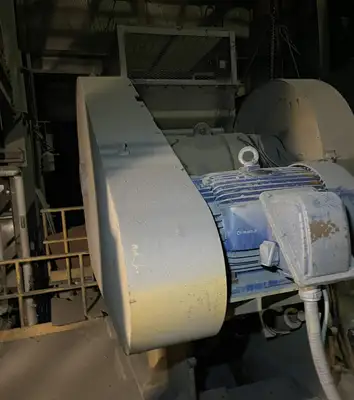

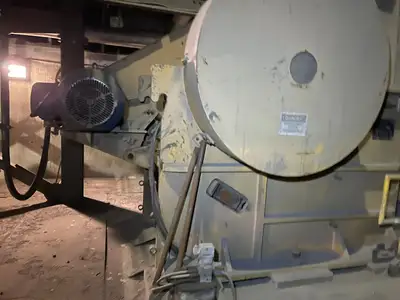

USED 2009 TRIO ENGINEERED PRODUCTS CT3042

The CT series uses high strength, low carbon alloy steel cast front and rear frames, with doweled and bolted side frames to ensure the rigidity of the machine.
The bolted main frame significantly increases the machine's loading capability. The non-welded design eliminates residual strains providing longer service life.
The modular design provides extra value by reducing transportation and installation cost for underground mining applications.
Feed opening size: 30" x 42"
Max. Capacity: 150-550 MTPH

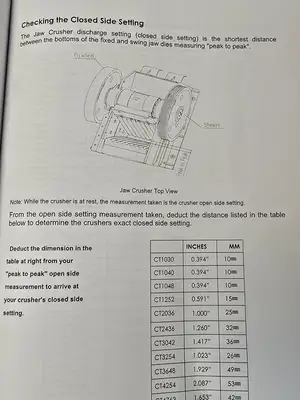

Closed side setting: 3" - 8"

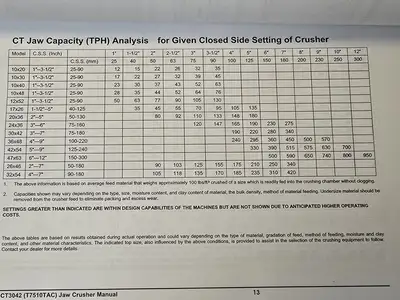

Open circuit max. capabilities:
3": 150-200 tph
3 1/2": 180-230 tph
4": 200-260 tph
5": 230-460 tph
6": 300-400 tph
7": 350-460 tph

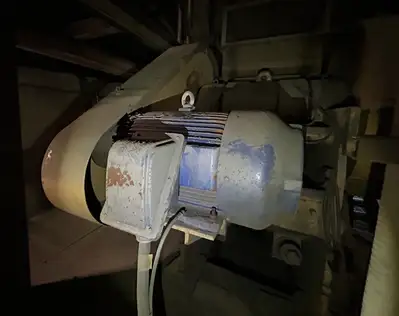

Horsepower: 250 hp
Max. Speed: 250 rpm
Power: 110 kW
Weight: 54,905 lbs
Features of CT series:
Operates in the most demanding environments
Ideal for open pit and underground primary applications
Rugged, Robust, and Reliable
Capable of high reduction ratios in high production applications
Easy transport and installation

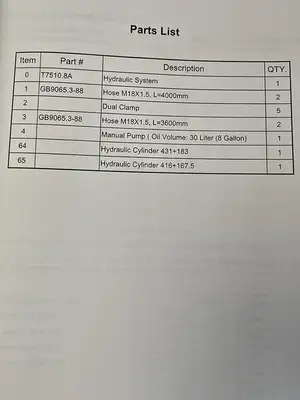

Hydraulic CSS adjustment
Easy to operate and maintain
