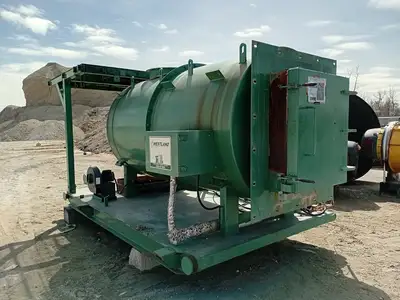

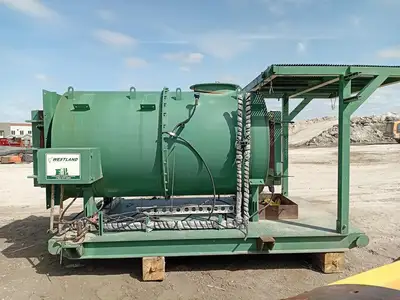

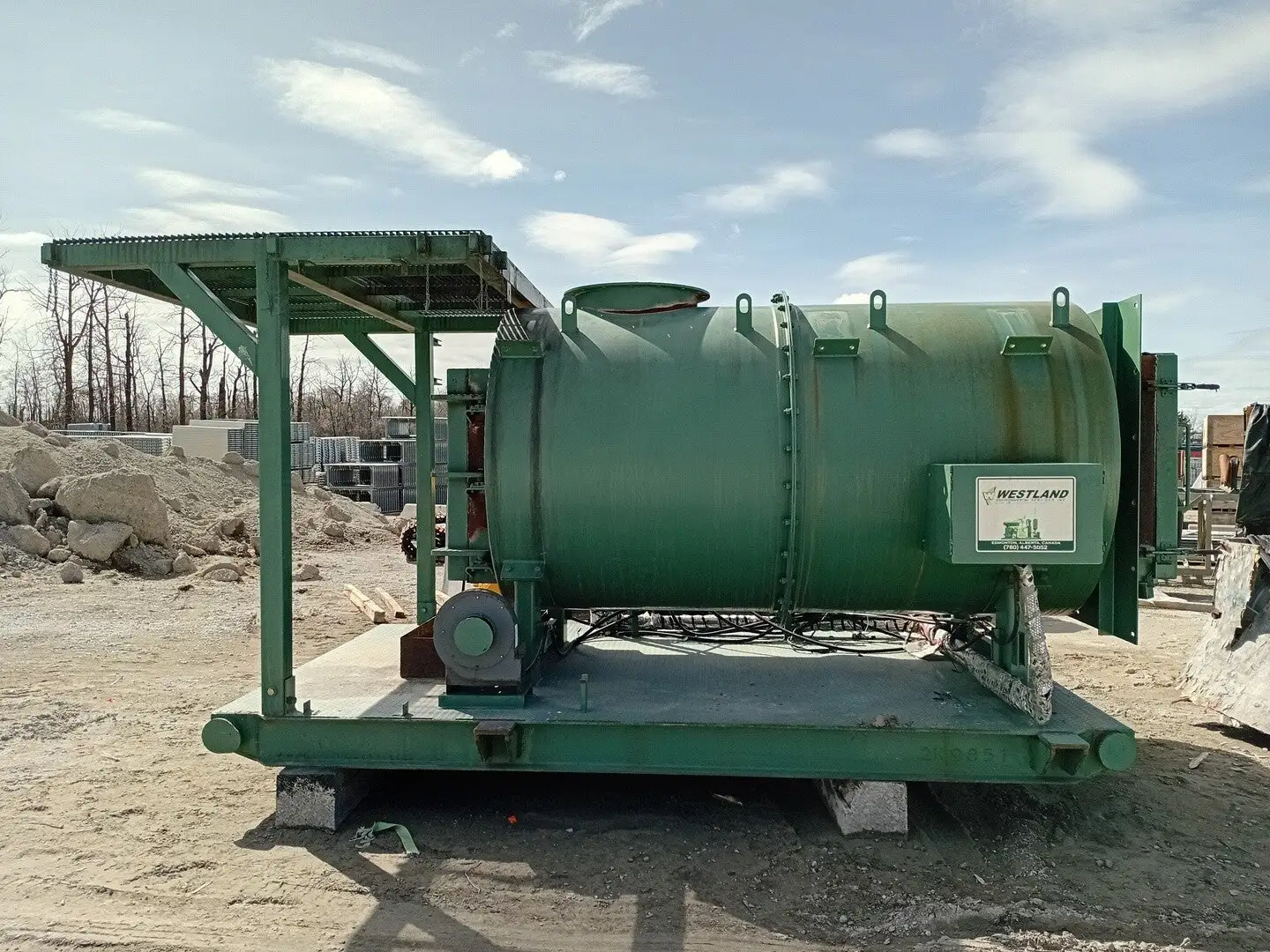

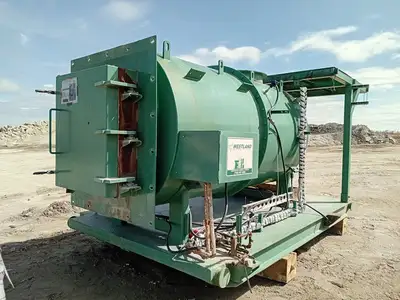

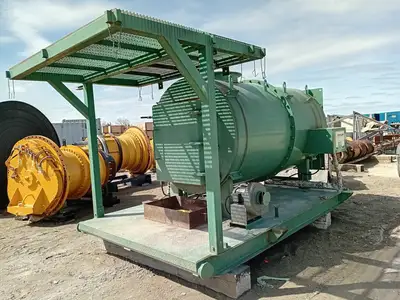

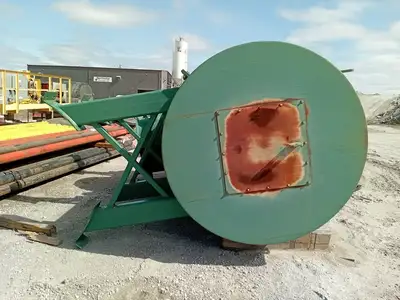

USED KETEK CY-100-CA

Ketek CY-100-CA Brochure
Features
Dual chamber, controlled-air operation
Secondary chamber gas residency time of two seconds
Built in safety features
Load-and-go operation
Low power consumption

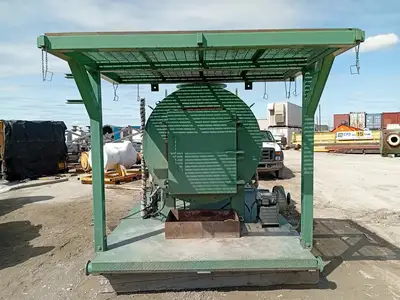

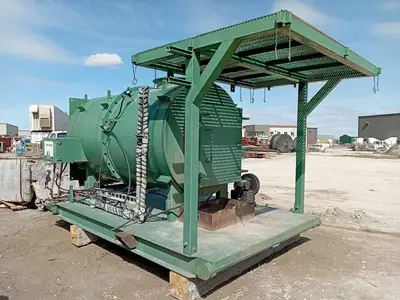

Platform, ladder, ladder cage and handrails

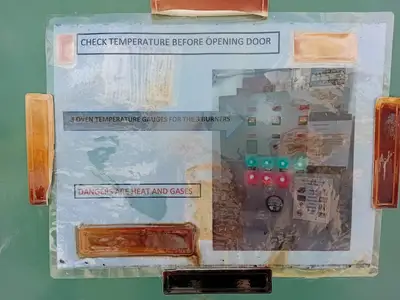

Control System
Load-and-go, one-button batch operation
Temperature control for primary and secondary chambers
PLC real-time data logging
Fuel Supply (diesel-fired units)
Optional double-walled, 4,500 L fuel storage tank, c/w filter and flexible hose connection
Optional cold-climate package / Arctic fuel line
Optional Fuels
LPG, natural gas, diesel

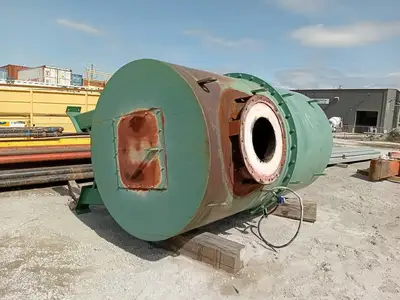

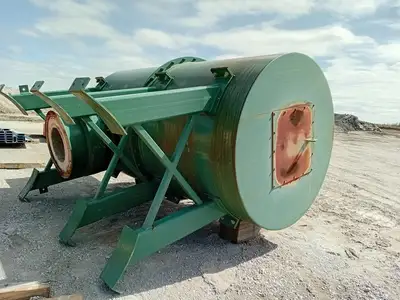

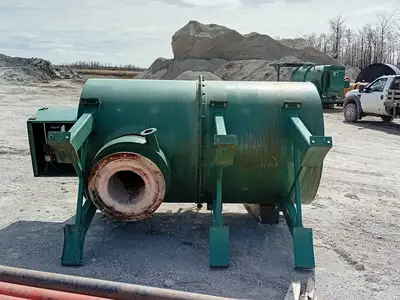

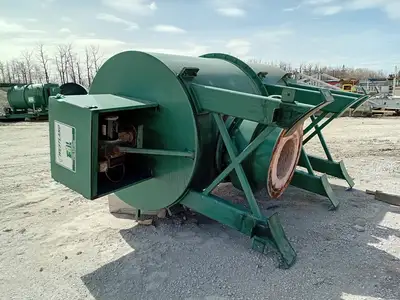

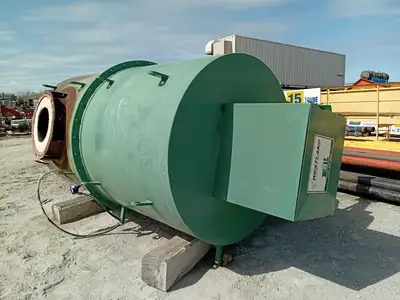

Combustion Chambers
The primary chamber is 2.74 m3
The secondary chamber is 2.87 m3
Casing
6.35 mm gauge steel

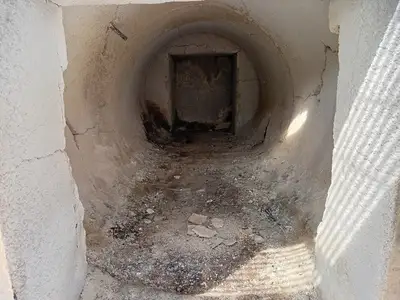

Lining: high-heat duty castable refractory over high-temperature insulation

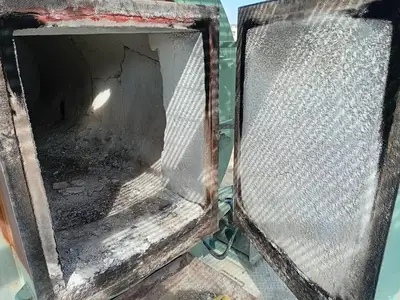

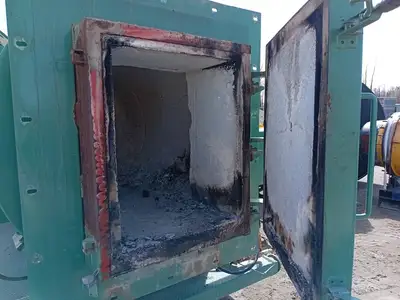

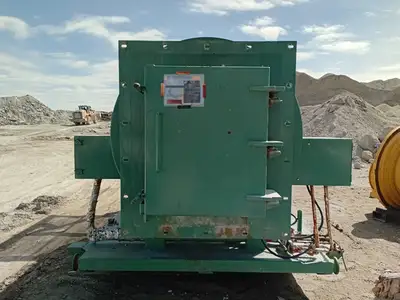

Refractory-lined Doors
699 mm x 899 mm clear opening
6.35 mm steel plate c/w heavy duty blade latch
Adjustable Air Supply

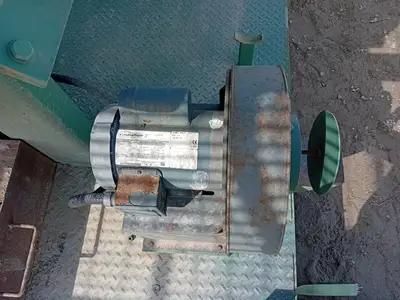

Forced air fan c/w ducts to secondary flame port air jets

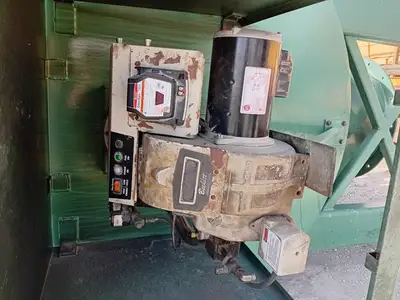

Auxiliary Burners
Two 770,000 BTU/hr burners for primary chamber
1,600,000 BTU/hr burner for secondary chamber

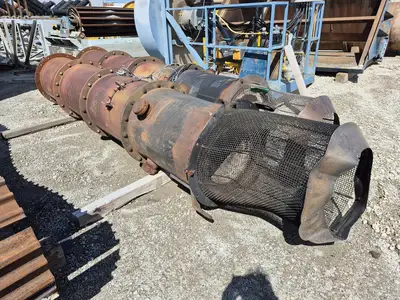

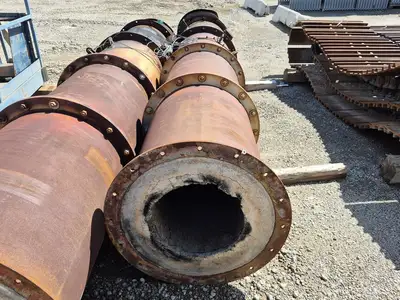

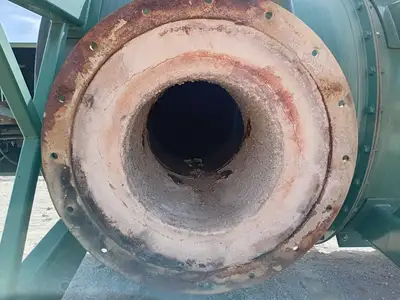

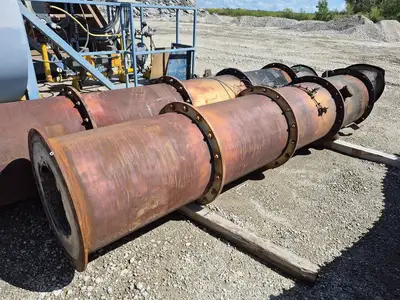

Refractory-lined Stack
Diameter: 457 mm
Height:
Without spark arrestor: 3.7 m

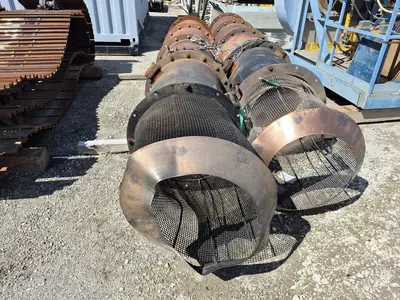

With spark arrestor: 4.24 m
Dimensions (Assembled)
L 6.1 m (20')
W 2.44 m (8')
H 8.9 m (29' 2")
Weight 16,300 kg (36,000 lbs)
