Machine is in Excellent Condition & Ready For Inspection.
| Spindle Size | 4.3" | 109.22 mm |
| X-Horiz Tvl of Table | 48" | 1,219.2 mm |
| Y-Vert Tvl of Head | 40" | 1,016 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 1,250 RPM | 1,250 RPM |
| Table-W | 44" | 1,117.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Spindle Tvl. | 28" | 711.2 mm |
| Dimensions | 240”L x 95”W x 126”H | 240”L x 95”W x 126”H |
| Weight | 35,000 LBS | 35,000 LBS |
Specifications:
Model - 2A622-1
Spindle Diameter - 4.3”
Rotary Table (T-Slots) - 44” x 49”
X Axis (Cross Travel) - 48”
Y Axis (Vertical Travel) - 40”
W Axis (Longitudinal Travel) - 43”
Z Axis (Spindle Travel) - 28”
Spindle Taper - 50
Spindle Speeds - 12.5 to 1250 RPM
Feed Rates - 0.025 to 32 IPM
Main Motor - 25 HP
Electrics - 460V/3PH/60HZ
Made In - Russia
Approximate Weight - 35,000 LBS
Approximate Overall Dimension - 240”L x 95”W x 126”H
Equipped With:

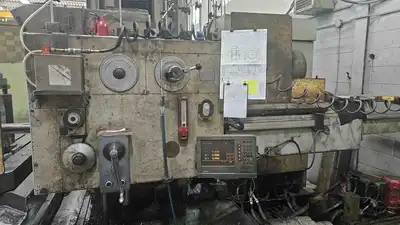

Heidenhain Three Axis Digital Readout

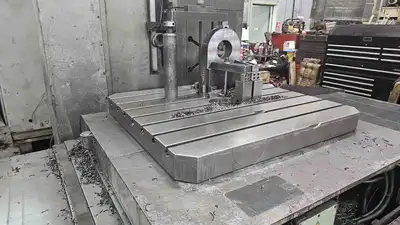

Built In T-Slotted Rotary Table

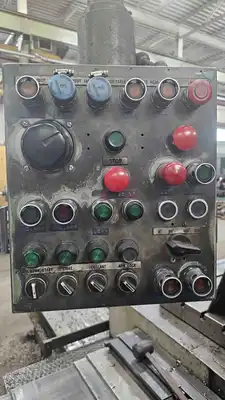

Pendant Control
Harden Ways
Hydraulic Unit
Way Covers
Work Light
