Kitagawa BB210 10in 3-Jaw Hydraulic Chuck, perfect for tooling and accessories. Features a 254mm max gripping range, 4500rpm max speed, and a max gripping force of 126kN. Ideal for enhancing your lathe operations. Comes with 3 jaws.
Kitagawa BB210 – 10in - 3 Jaw Hydraulic Chuck
USED
Brand: Kitagawa
Model Number BB210
Chuck Diameter: 10 inch
Jaws: 3
Through-hole (mm): 81 / 3.189in
Gripping range (mm): 254 max, 41 min
Jaw Stroke (diameter mm): 8.8
Plunger Stroke (mm): 19
Max. Input: 48.8 kN, 4976 kgf
Max. Gripping Force: 126 kN, 12848 kgf
Max Speed: 4500rpm
Weight (with soft jaws) 31.8kg
Moment of inertia: 0.312 kg.m2
Max pressure: 3.09 MPa, 31.5 cm2

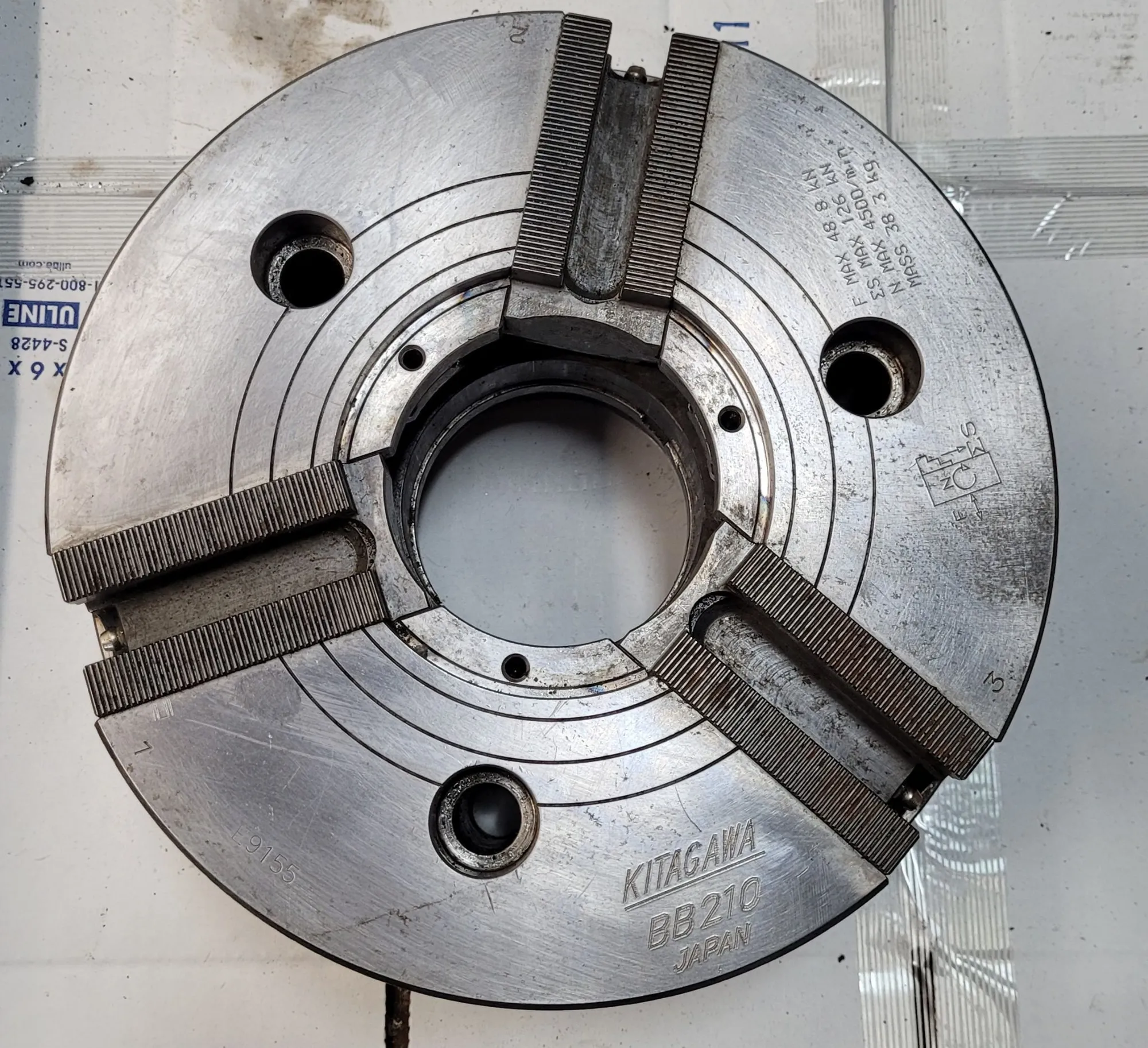

Item comes with 3 jaws as pictured.
