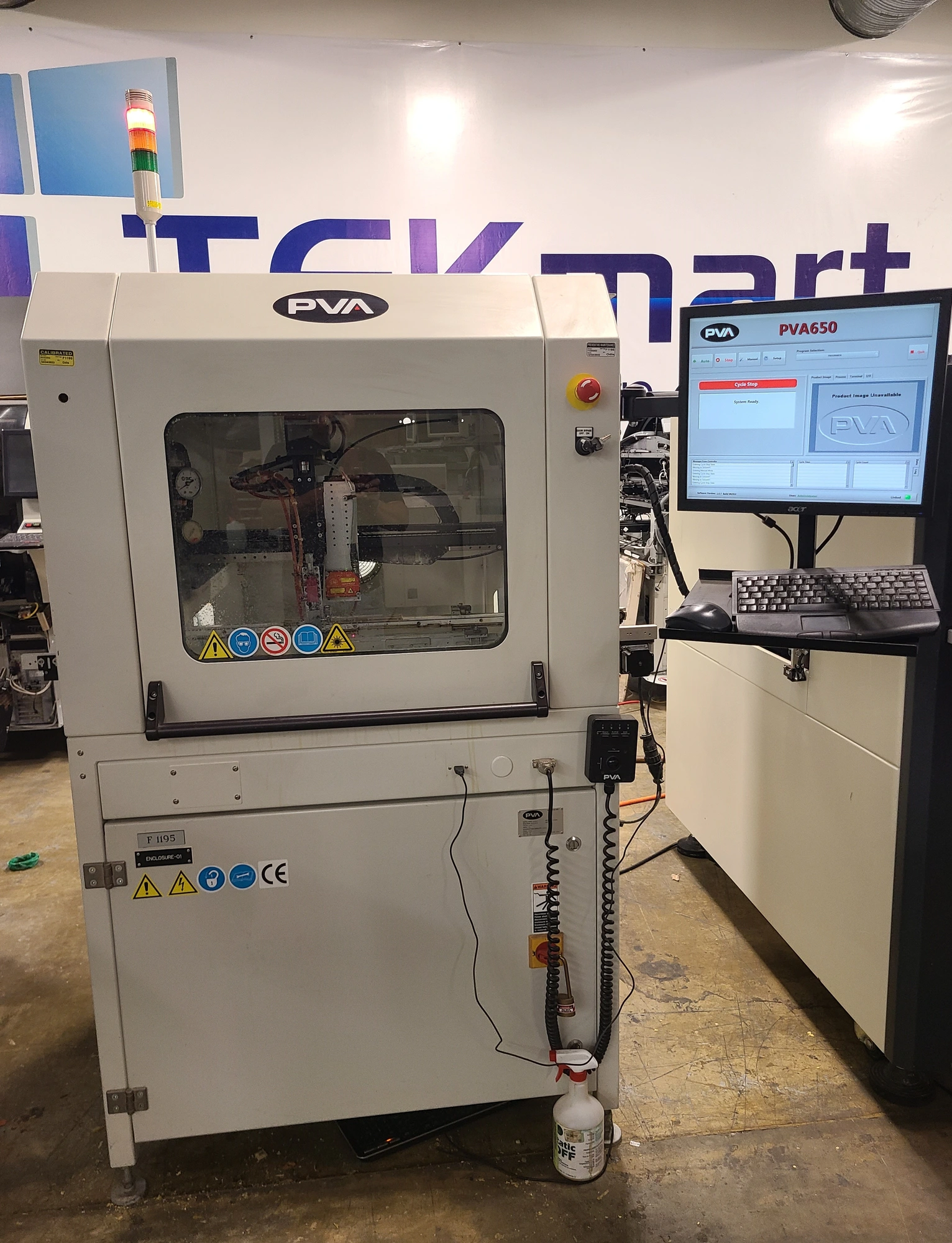

PVA 650 Conformal Coating Machine (2012)
Brand: PVA
Model: 650
Year: 2012
SN: W5327
Type: Conformal Coating Machine
Options:
Motion Axes: 3
Controller Axes: 4
Controller: 2000
X-Stroke: 500mm
Y-Stroke: 500mm
Z-Stroke: 90mm
Head:
Valve: FCS300
(Also available: FC100-CF)
Atom Air range: 0-5 PSI
O-ring material: KALREZ
Conveyor:
Type: SMT Belt
Direction (Lto R, R to L): Left to Right
Conveyor height: 37-38”
Laser Height: Yes (Single point offset per line)
SMEMA: Yes
PIP Sensors: 3
Board stops: (Type): HD
Quantity on front rail: 1X
Quantity on back rail: 1X
Coating Material:
Material A: ULTRAWIDE FP801 (Made by Everwide)
Kalrez O-rings? (y/n): Yes
SS fittings required?: Yes
220V, 12A, 50Hz, 800-100 PSI
