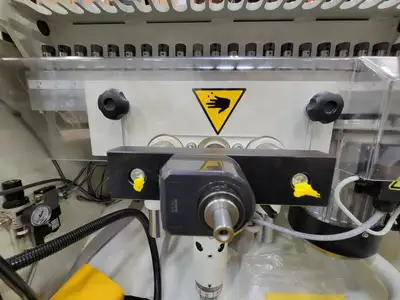

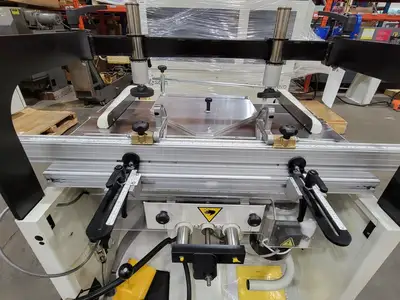

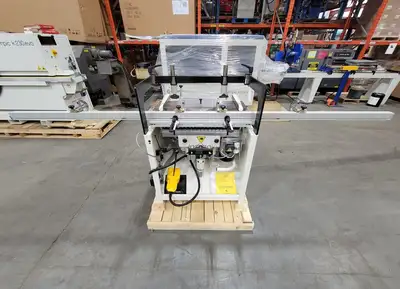

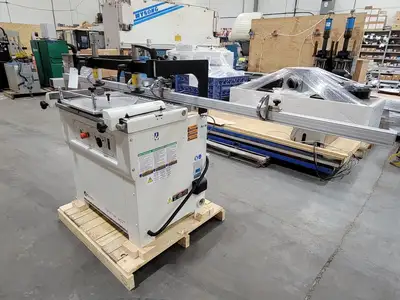

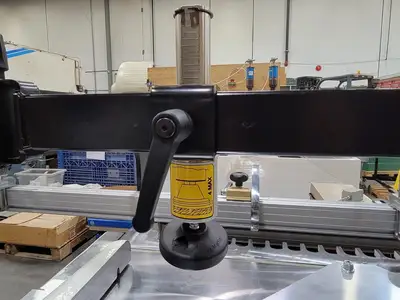

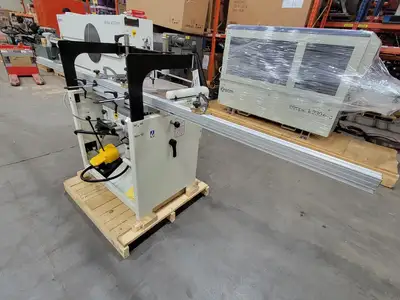

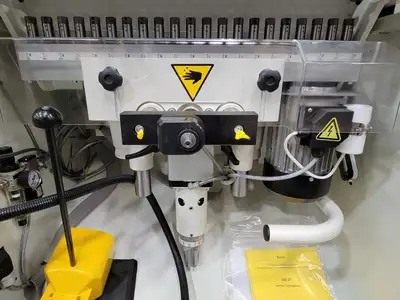

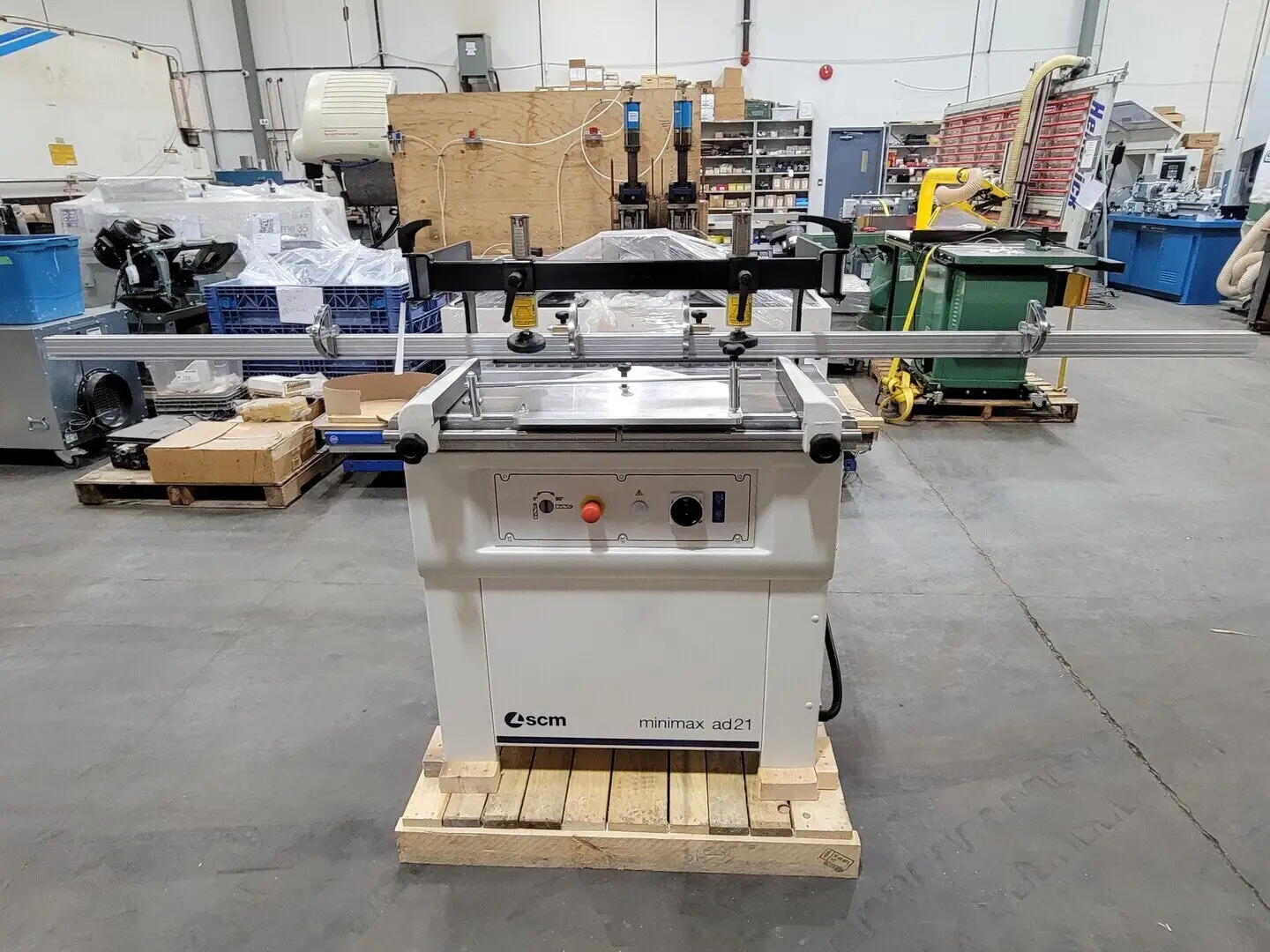

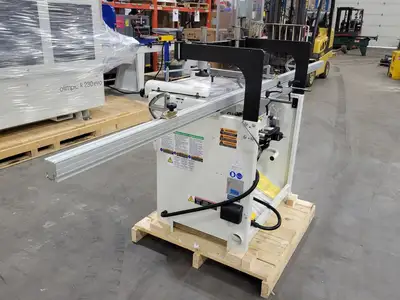

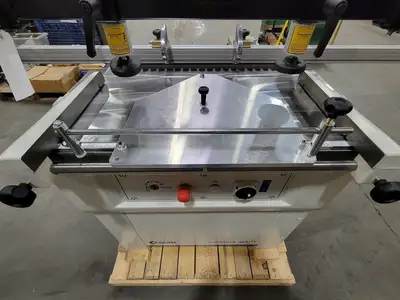

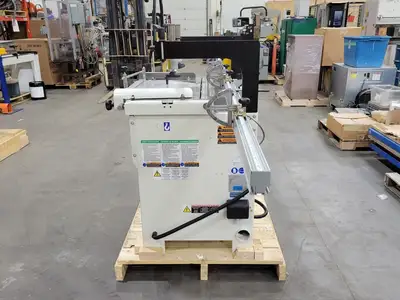

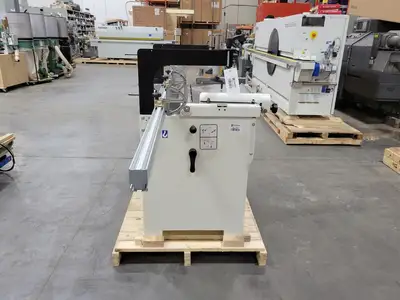

NEW SCM MINIMAX AD 21

Horsepower: 2.5 hp
# of Spindles: 21
Distance Between Spindles: 32 mm
Voltage: 220 volts
Phase: Single-phase
Worktable Dimensions (Length x Width x Height): 905 x 372 x 900 mm
Max. Tool Diameter: 40 mm
Max. Boring Centre-to-Centre: 640 mm
Max. Height of Horizontal Boring Operation: 60 mm
Spindle Speed: 2800 rpm
Min. / Max. Panel Height: 10 / 85 mm
Max. Panel Width Under the Bridge: 833 mm
Max. Boring Head Stroke: 70 mm
Pneumatic System Operating Pressure: 6 bar
Air Consumption: 3.5 Nl/cycle
Exhaust Outlets Diameter: 80 mm
Additional Features
No. 5 drilling bit-holder bushes 10 mm diameter
No. 11 drilling bit-holder bushes 10 mm diameter
Fence for horizontal boring at 45o
Triple wall
