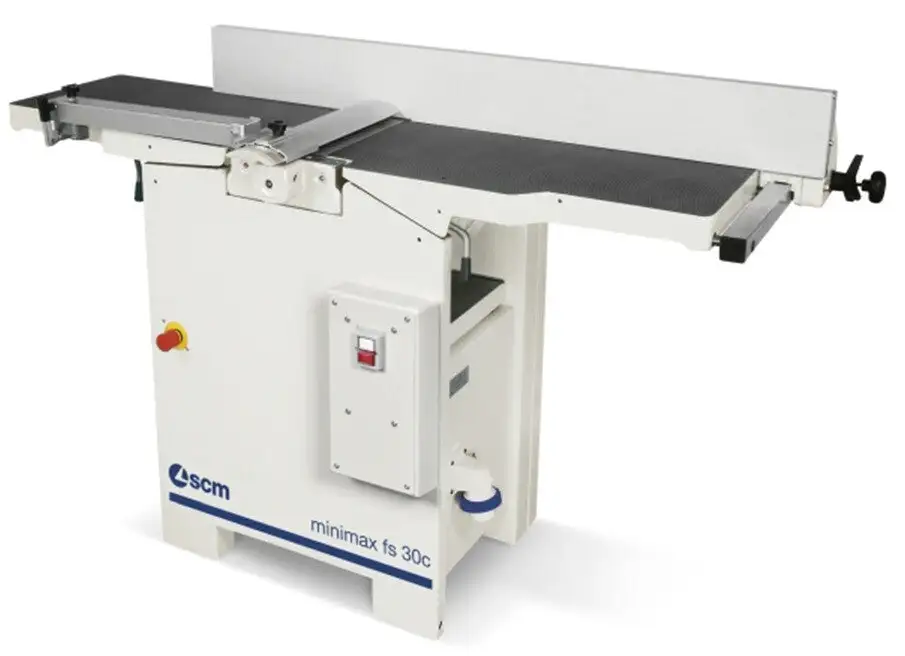

NEW SCM MINIMAX FS 30C

Horsepower: 4.8 hp
Max. Workpiece Width: 300 mm / 11.81 "
Max. Workpiece Thickness: 230 mm / 9.06 "
Type: Tersa
Voltage: 230 volts
Phase: Single-phase
** Combination machine of Planer, Jointer
Cutterblock diameter: 72 mm
No. of standard knives: 3
Standard knives dimensions: 300 x 30 x 3 mm
Max. stock removal: 4 mm
Surfacing tables total length: 1510 mm
Thicknessing table dimensions: 300 x 585 mm
Feed speed on thicknesser: 7 m/min
Min. / max. working height on thicknesser: 3 / 230 mm
Exhaust hoods diameter: 120 mm
Standard Equipment
Surface fence
Pre-set for mortiser
Tersa Cutterblock
Quick tightening knives and automatic adjustment
Additional Features
Triple Wall
Delivery Ex Factory
