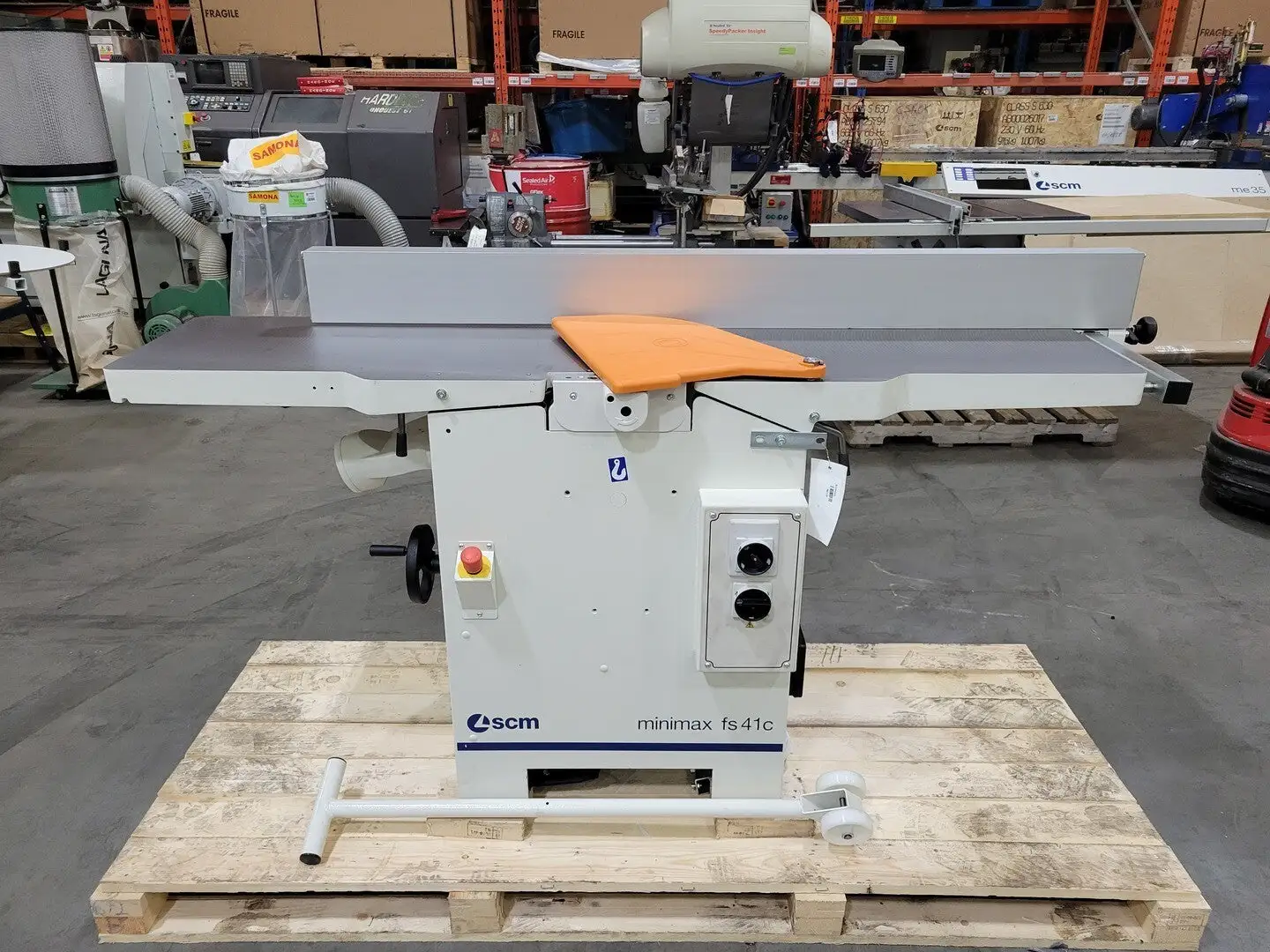

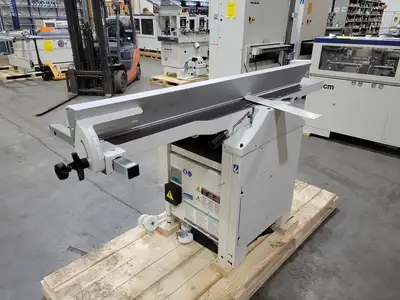

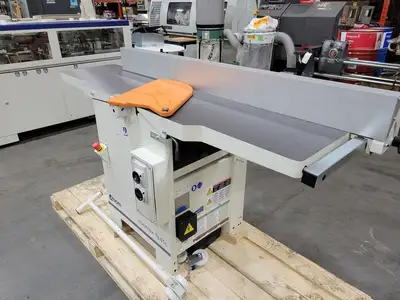

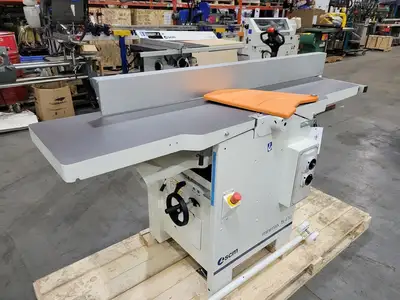

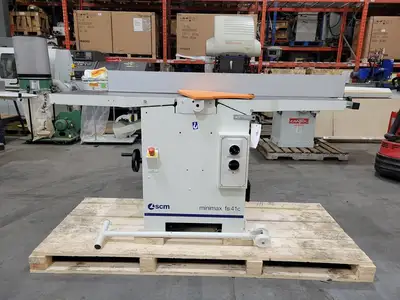

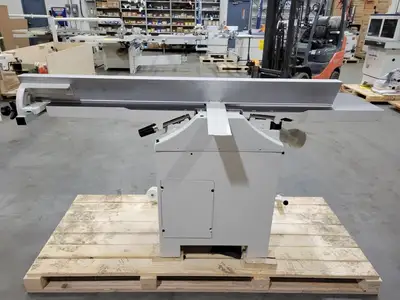

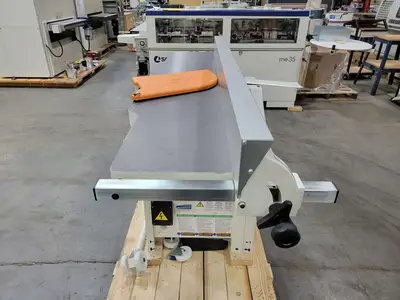

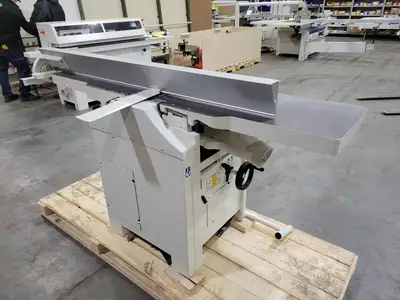

NEW SCM MINIMAX FS 41C

Horsepower: 4.8 hp
Max. Workpiece Width: 410 mm / 16.14 "
Max. Workpiece Thickness: 230 mm / 9.05 "
Type: Xylent
Voltage: 230 volts
Phase: Single-phase
** Combination machine of Planer, Jointer
Xylent Spiralknife Cutterblock with 3 Series of Knives
Complete With:
87 mm diameter cutterblock
No. 66 standard plates, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
No. 1 dynamometric key for the correct and safe use of the locking
No. 2 inserts for the dynamometric key
Max. Stock Removal: 4 mm
Surfacing Tables Total Length: 1800 mm
Thicknessing Table Dimensions: 410 x 605 mm
Feed Speed on Thicknesser: 7 m/min
Min. / Max. Working Height on Thicknesser: 3 / 230 mm
Exhaust Hoods Diameter: 120 mm
Additional Features
Wheels for machine movement
Xylent maintenance kit
10 spare inserts kit (15x15x2.5) for Xylent spindle
Triple Wall
