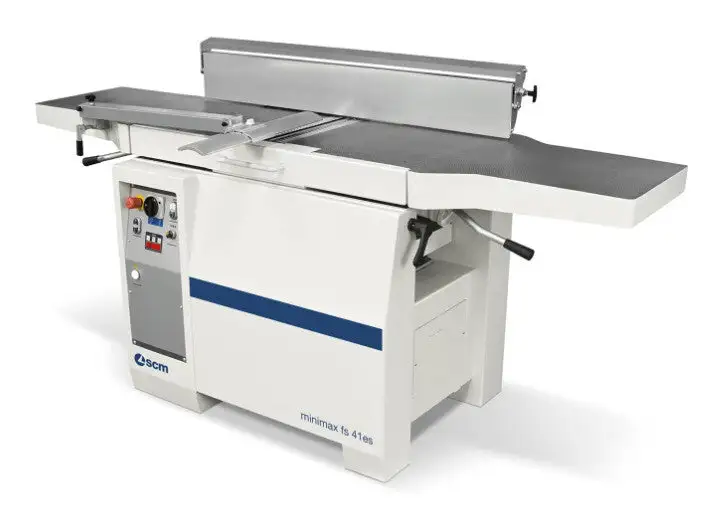

NEW SCM MINIMAX FS 41ES

Horsepower: 4.8 hp
Max. Workpiece Width: 410 mm / 16.14 "
Max. Workpiece Thickness: 240 mm / 9.45 "
Type: Xylent
Voltage: 230 volts
Phase: Single-phase
** Combination machine of Planer, Jointer
Xylent Spiralknife Cutterblock with 3 Series of Knives
Complete With:
95 mm diameter cutterblock
No. 66 standard knives, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
No. 1 dynamometric key for the correct and safe use of the locking
No. 2 inserts for the dynamometric key
Max. Stock Removal: 5 mm
Surfacing Tables Total Length: 2200 mm
Thicknessing Table Dimensions: 410 x 775 mm
Feed Speeds on Thicknesser: 6 / 12 m/min
Min. / Max. Working Height on Thicknesser: 3 / 240 mm
Min. Working Length on Thicknesser: 180 mm
Exhaust Hoods Diameter: 120 mm
Standard Equipment
Surface planer tables with simultaneous opening
Dedicated surface planer fence (dimensions 1200 x 150 mm)
Thicknessing table lifting by means of 4 columns dust protected
Helicoidal thicknesser infeed roller
Sandblasted steel thicknesser outfeed roller

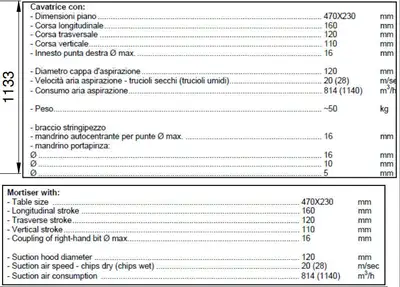

Pre-setting for mortiser
Mechanical readout (1/10 mm) for thicknessing table height
Additional Features
Rubber-coated feed roller on thicknesser outfeed
Xylent maintenance kit
10 spare inserts kit (15x15x2.5) for Xylent spindle
Wheels for machine movement
Self-braking motor
Triple Wall
Delivery Ex Factory
