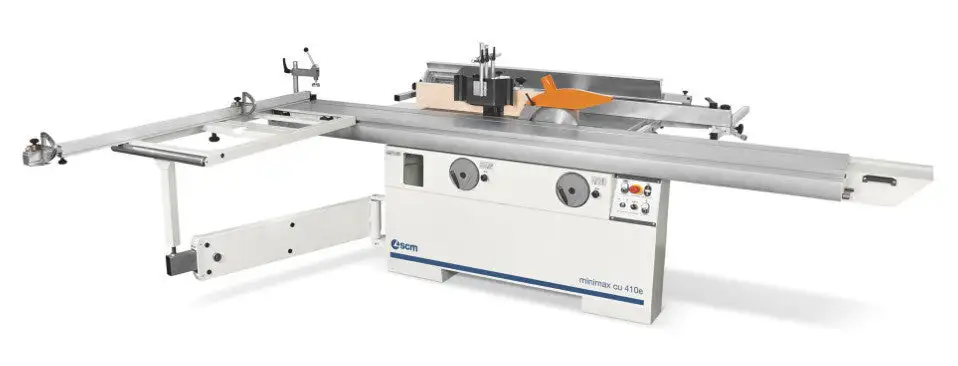

NEW SCM MINIMAX CU 410E

Horsepower: 4.8 hp
Blade Diameter: 315 mm (With Scoring Blade Installed)
Voltage: 230 volts
Phase: Single-phase
Saw Type: Sliding Saw
CNC: No
** Combination machine of Planer, Jointer, Saw, Router
Planer
"Xylent" spiralknife cutterblock with 3 series of knives:
No. 66 plates 15x15x2.5 mm with 4 selflocking and selfcentering screw knives
No. 1 dynamometric key for the correct and safe use of the locking
No. 2 inserts for the dynamometric key
Max. Stock Removal: 5 mm
Surfacing Tables Total Length: 2000 mm
Thicknessing Table Dimensions: 423 x 775 mm
Feed Speeds on Thicknesser (m/min): Two speeds, 6 - 12
Min./Max. Working Height on Thicknesser: 3/230 mm
Min. Working Length on Thicknesser: 160 mm
Circular Saw
Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1250 x 430 mm
Blades Tilting: 90o / 45o
Max. Saw Blade Projection from Table at 90o / 45o: 100 / 71 mm
Max. Squaring Stroke: 2600 mm
"DADO SET" capability
Mechanical presetting to use a tool (not included) in place of the main blade.
Max. diameter: 200mm / 8"
Max. thickness: 19 mm / 0.75"
This machine is suppled with saw spindle, 5/8" diameter
Spindle Moulder
Available with the Following Spindle Diameters: 30, 32, 35, 40, 50 mm, 3/4", 1", 1-1/4"
Max. Useful Spindle Length: 125 mm (70 mm with 3/4" spindle)
Spindle Moulder Speeds @ 50 Hz: 3500 / 6000 / 8000 / 10,000 rpm
Max. Tool Diameter when Profiling: 210 mm
Max. Diameter of Tool Lowered Under the Table at 90o: 240 mm
Belt driven scoring unit complete with blade with external setting up
Blade: 100 mm diameter, Z 20
Angular cutting device with flip-over stops equipped with:
Telescopic fence with two flip-over stops
Pre-set for angle rapid selection
Round sliding bars on parallel fence and on surface fence for parallel cutting
Saw Fence (900 mm max. cutting width)
Micrometric adjustment and cam-locking system
"high rigidity" cast iron fence support
Surface Fence (Extruded aluminum, L = 1667 x 150 mm)
"high rigidity" cast iron fence support
Cast Iron Mortiser
Complete with 120 mm diam. exhaust hood and 16 mm chuck
Table Dimensions: 470 x 230 mm
Strokes: X = 160 mm, Y = 120 mm, Z = 110 mm
Spindle moulder fence with 3 controlled adjustments
Max. tool diameter: 240 x 85 mm
Additional Features
Xylent maintenance kit
Tiltable spindle moulder 90o / 45o with handwheel on front machine
Interchangeable spindle: 100 mm max. height (70 mm if 3/4" spindle)
Spare spindle for interchangeable spindle (1-1/4" diameter)
Spare spindle for router bits each complete with 1/2" clamp
Reverse spindle rotation (non CE)
Spindle moulder shaft of 1-1/4"
Wheels for machine movement
Numerical readouts for the units positioning
Locking by countersunk socket screw
Triple wall for 2600 mm
Machine language: English
