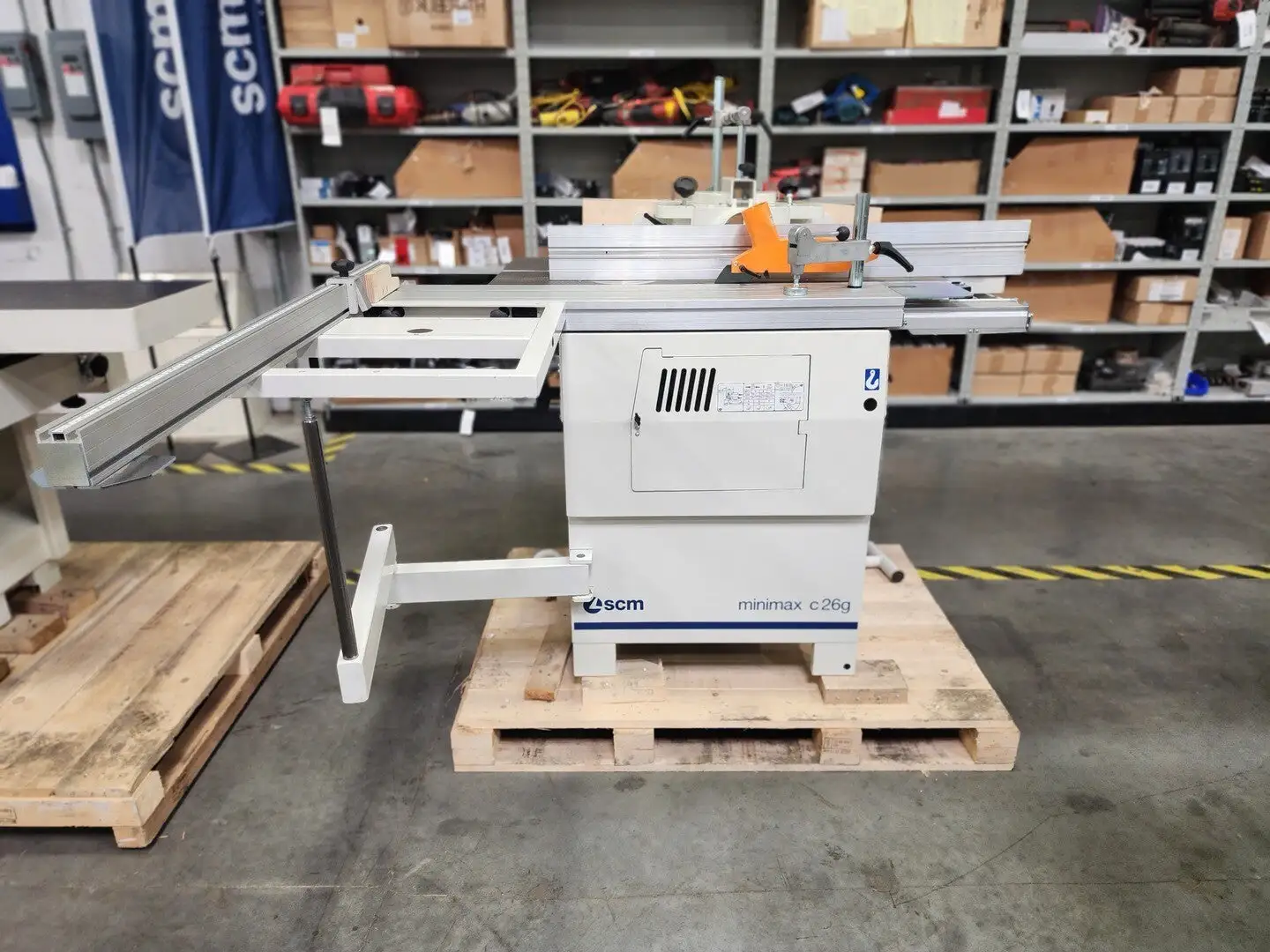

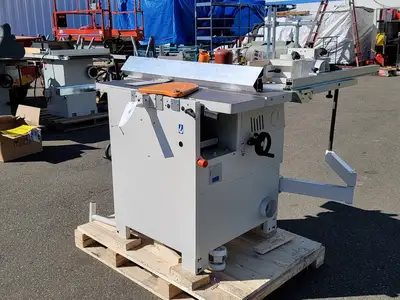

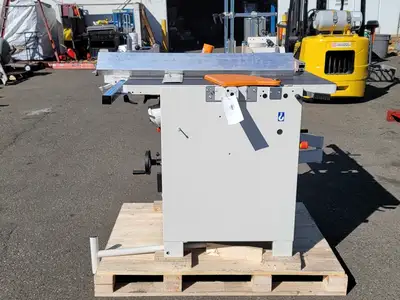

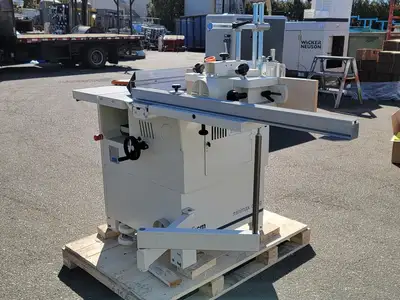

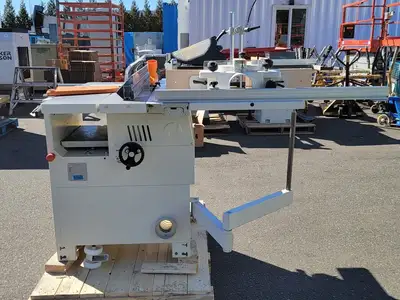

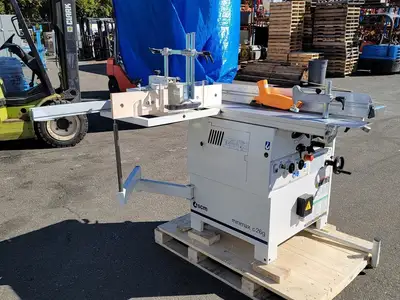

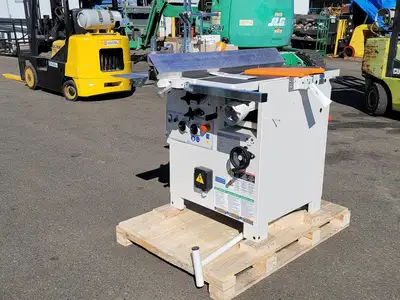

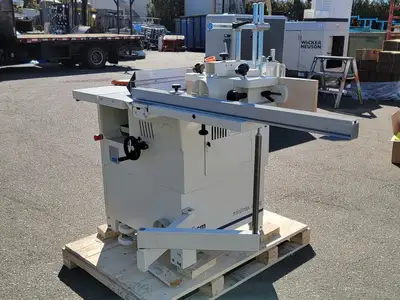

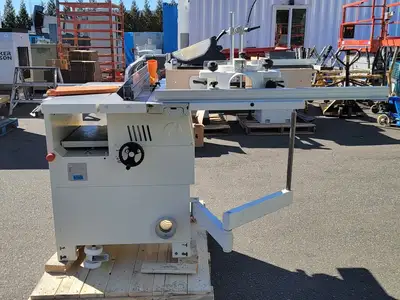

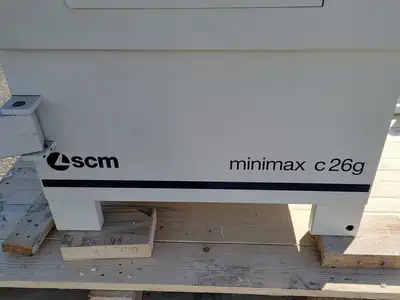

NEW SCM MINIMAX C 26G

Horsepower: 3 hp
Blade Diameter: 250 mm
Voltage: 230 volts
Phase: Single-phase
Saw Type: Sliding Saw
CNC: No
** Combination machine of Planer, Jointer, Saw, Router
Planer
"Tersa" cutterblock" 62 mm diameter with 3 knives with rapid locking system
Max. Stock Removal: 3 mm
Surfacing Tables Total Length: 1040 mm
Thicknessing Table Dimensions: 260 x 450 mm

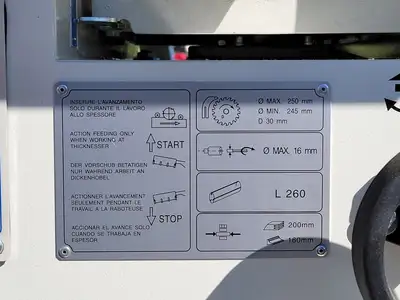

Feed Speed on Thicknesser (m/min): 6
Min./Max. Working Height on Thicknesser: 3/200 mm
Circular Saw
Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1024 x 224 mm
Blades Tilting: 90o / 45o
Max. Saw Blade Projection from Table at 90o / 45o: 75 / 60 mm
Max. Squaring Stroke: 1200 mm
Cutting Width on Parallel Fence: 500 mm

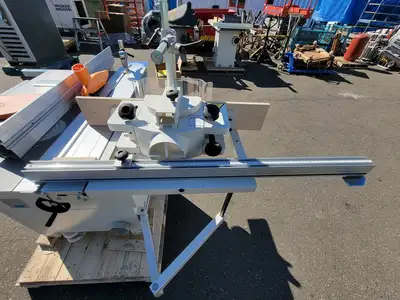

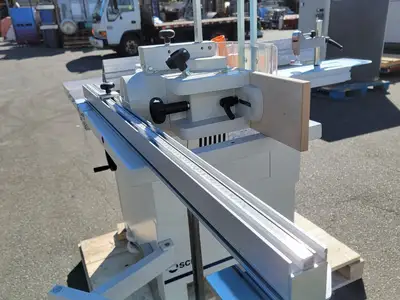

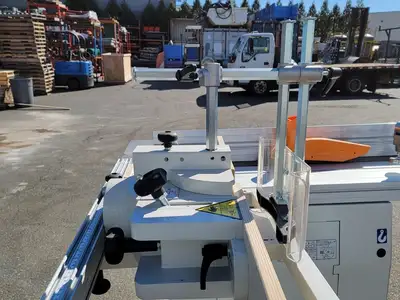

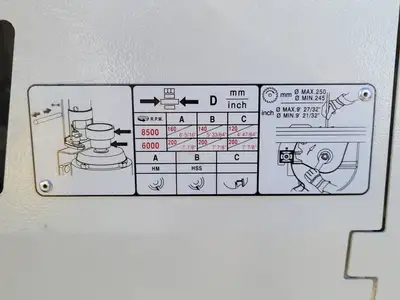

Spindle Moulder
Available with the Following Spindle Diameters: 30, 1-1/4"
Max. Useful Spindle Length: 75 mm
Spindle Moulder Speeds @ 50 Hz: 5000 / 7500 rpm
Max. Tool Diameter when Profiling: 160 mm
Max. Diameter of Tool Lowered Under the Table at 90o: 145 mm

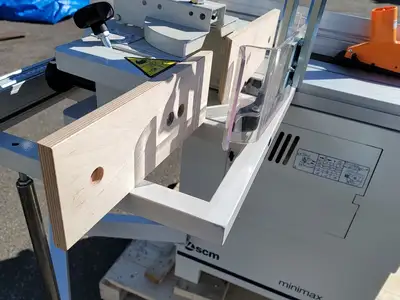

Squaring Frame
Complete with:
fence with 1 stop
eccentric clamp
support
Additional Features
Exhaust Outlets Diameter: 120 mm
Spindle moulder shaft of 1-1/4"
Wheels for machine movement
Locking by countersunk socket screw
Triple wall
Machine language: English
