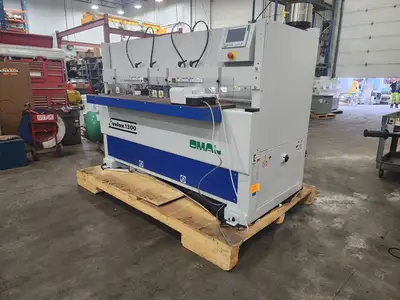

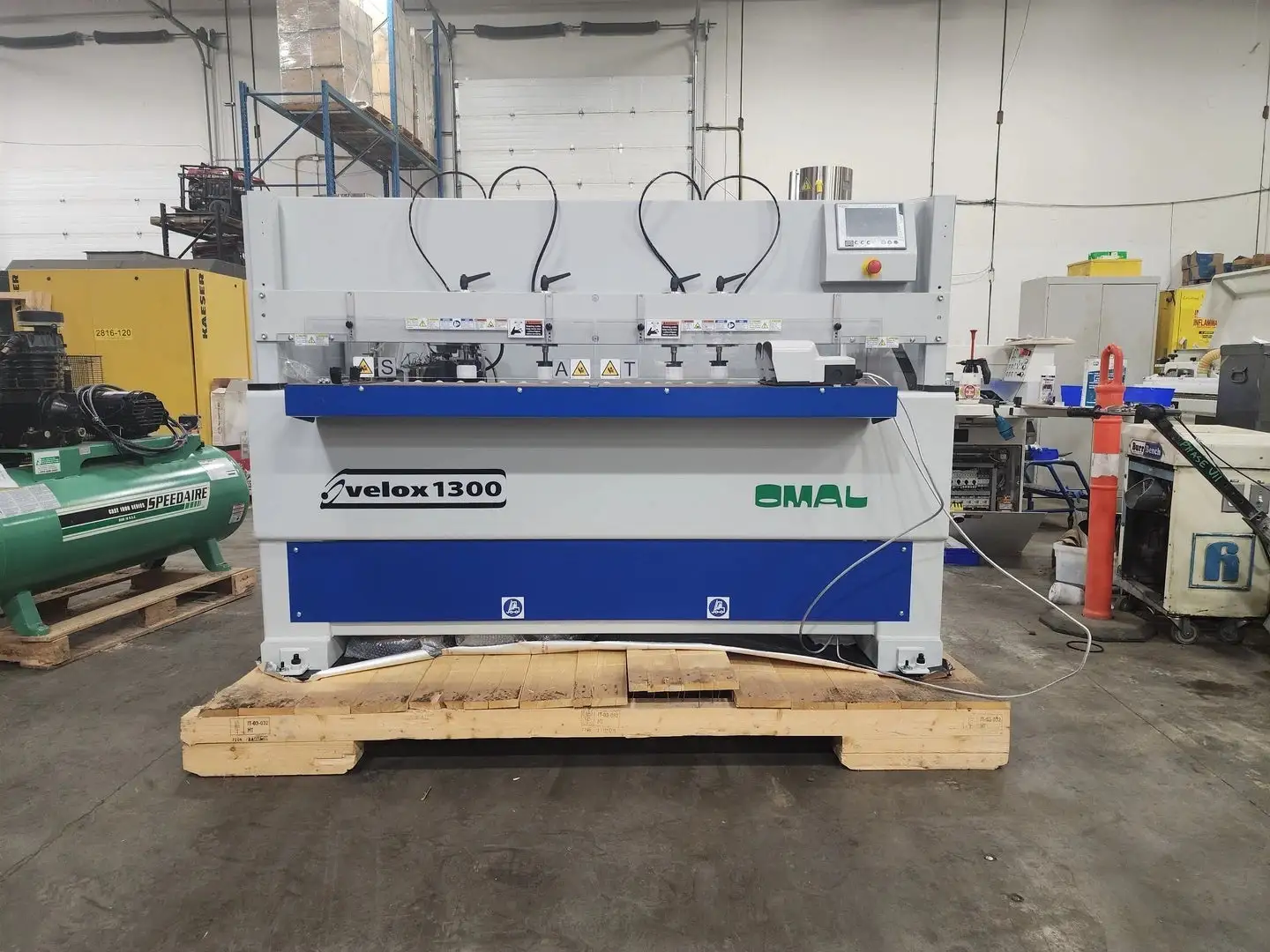

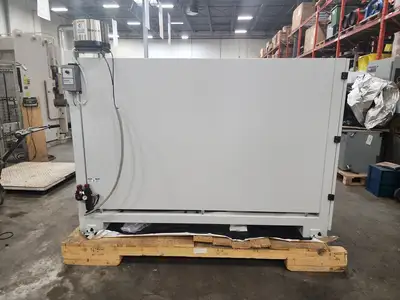

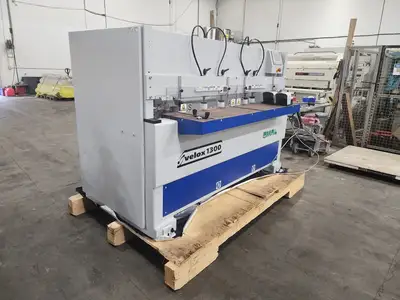

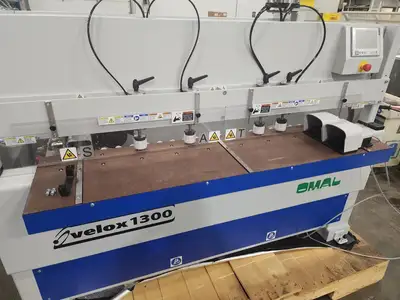

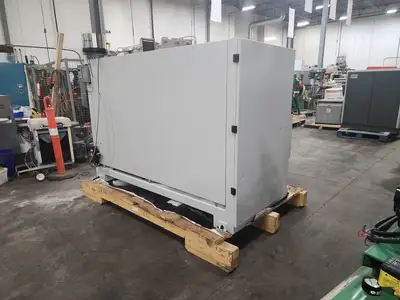

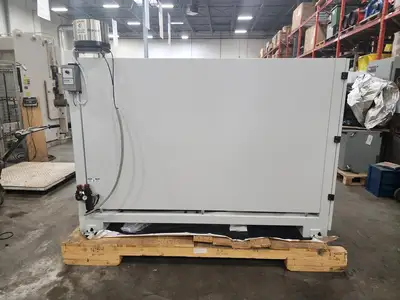

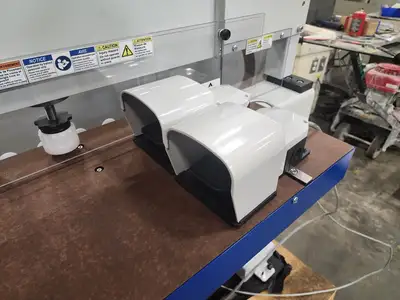

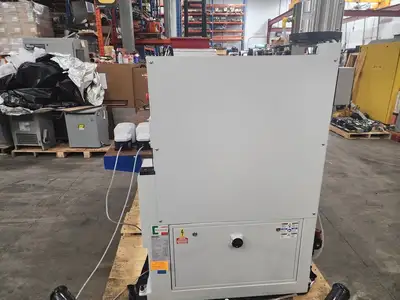

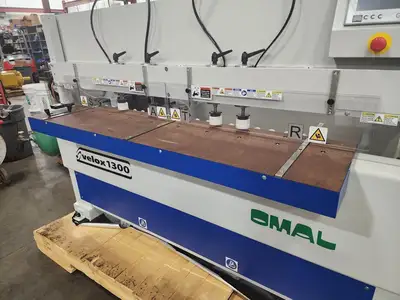

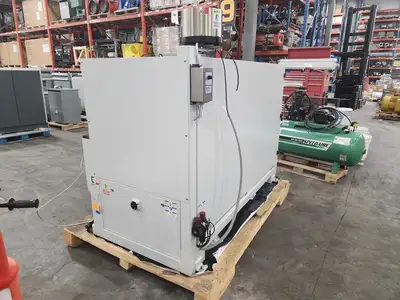

NEW SCM OMAL VELOX 1300

Horsepower: 0.75 hp
# of Spindles: 1
CNC: Yes
Voltage: 230 volts
Phase: 3-phase

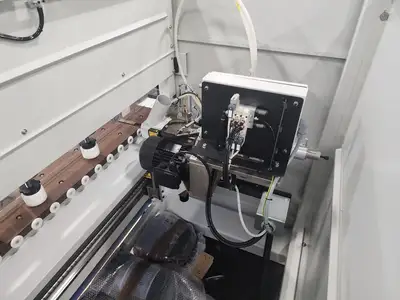

Drilling Unit
Number of drilling units: 1
Drill Motor: 0.55 kW / 0.75 hp
Drills rotation speed: 6000 rpm
Max. depth of holes: 30 mm / 1.18"
Max. diameter of drill: 10 mm / 3/8"
Dowel insertion unit
Number of dowel insertion unit: 1
Standard dowel dimension: Diameter 8 x 35 mm
Max. Dowel Length: 40 mm
Max. Dowel Projection: 20 mm
2 position revolver for dowel
Fiber optic sensor for dowel presence
The drill and dowel inserter are 64 mm on-center

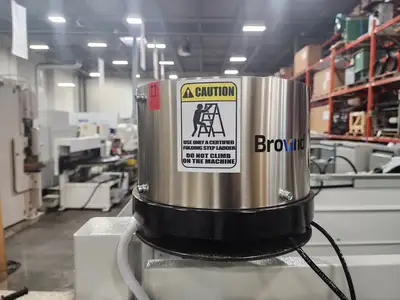

Dowel Vibrator Bowl
Capacity: 2000 dowels
Gluing & cleaning unit
Capacity of glue tank: 8 Litres
Capacity of cleaning tank: 8 Litres
Max. glue viscosity: 900 cps
NC control of glue amount
Injector unit with inductive sensor to verify glue is shot
Injector with double, reinforced seals to ensure no nozzle leakage
X axis, CNC with ball screw
Installed torque: 2.4 Nm
Working area: 1300 mm (50")
Carriage travel speed: 50 m/min (163.5 ft./min)
DEPTH "Y" axis (manual setting):
Working stroke: 40 mm (1.57")
THICKNESS "Z" axis (manual setting):
Working stroke: 40 mm (1.57")
Additional
4 (standard) Vertical Clamps
24 VDC Control Voltage
7 bar (101 psi) Air Pressure
