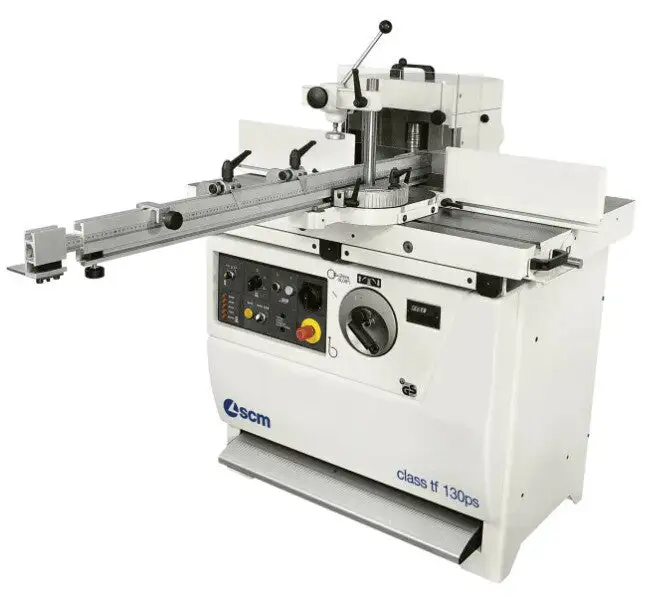

NEW SCM CLASS TF 130PS

Voltage: 230 volts
Phase: 3-phase
Worktable dimensions: 1080 x 760 mm
Dimensions of front sliding table: 1080 x 270 mm
Front sliding table stroke: 1000 mm
Working length of spindle diam. 30-35 (40-50): CE 140 (180) mm / NO-CE 180(180) mm
Spindle base projection from table: 30 mm
Spindle base projection from table with interchangeable spindle: 70 mm
Spindle moulder shaft: 1-1/4"
Spindle Speeds: 3000 / 4500 / 6000 / 7000 / 10000 rpm
Max. tool diam. retractable under worktable with rings (with "Fast" section table): 320 x 85 mm
Spindle fence stroke with mechanical programming (positioning with respect to the spindle axis):
125 mm (from -125 to +125)
External diameter of exhaust outlet on spindle moulder hood: 120 mm
External diameter of exhaust outlet on base (for forced electrospindle aircooling 7.5 kW): 120 mm
Air flow speed of exhaust system: 20 m/s
Exhaust system air consumption: 1700 m3/h
Motor Power: 5.5 kW, 7.5 hp, 50 Hz // 6.6 kW, 9 hp, 60 Hz
Additional Features
Spindle moulder fence with mechanical adjustment
Aluminum fence instead of wooden fence
Tenoning table complete with tenoning hood
MK5 interchangeable spindle
Locking by countersunk socket screw
Locking without slot
Seaworthy packing (basic machine and "LL" version)
Machine language: English
