2010 Haas VF-5 CNC Vertical Machining Center
| X-Axis | 50" | 1,270 mm |
| Y-Axis | 25" | 635 mm |
| Z-Axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | BT 40 | BT 40 |
| Table-W | 23" | 584.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 4 | 4 |

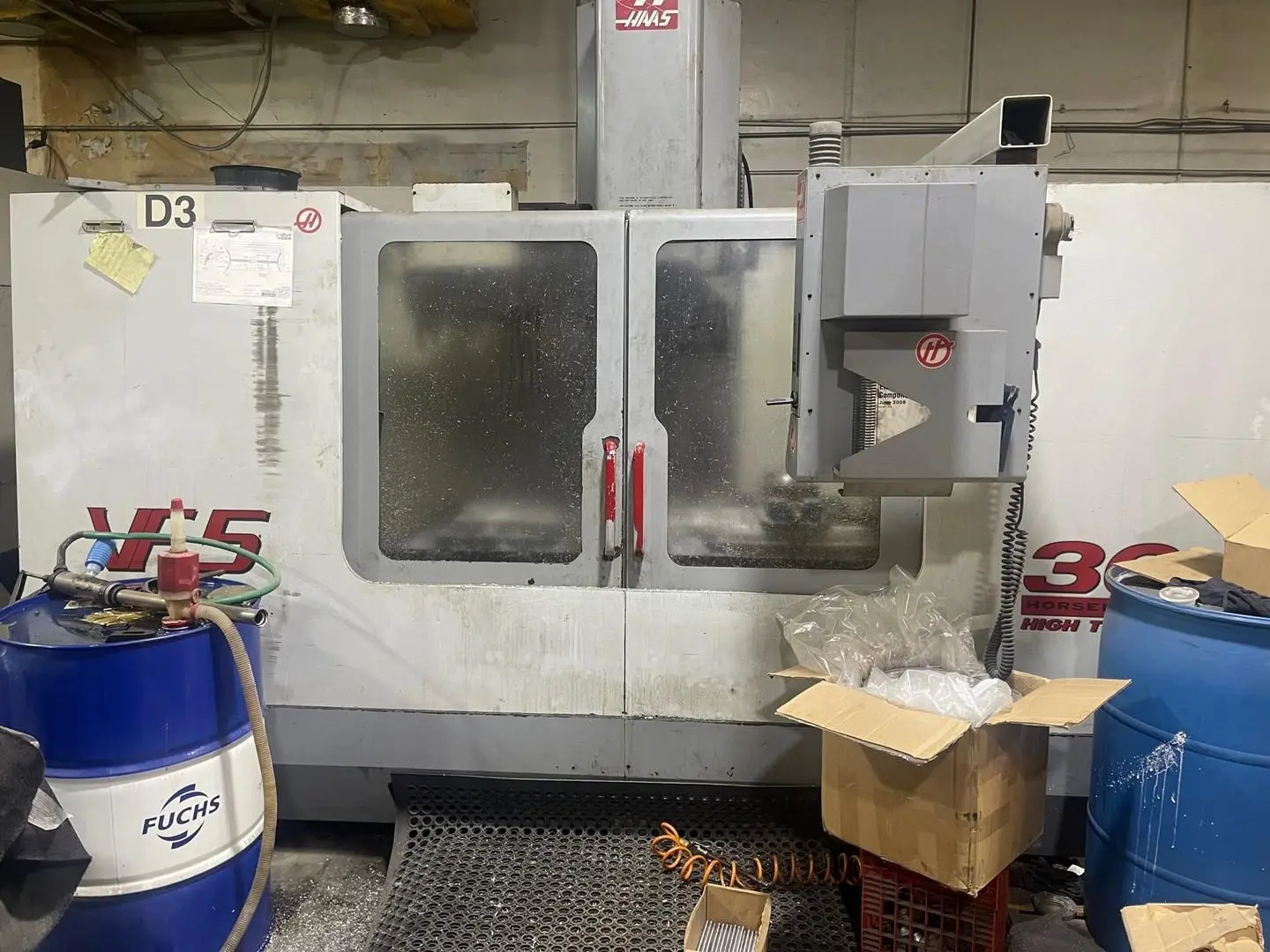

Haas VF-5/40 CNC Vertical Machining Center
New: 2010
Specifications:
Travels:
X-Axis: 50"
Y-Axis: 25"
Z-Axis: 25"
Spindle Motor: 30 HP Vector Drive
Spindle Taper: BT 40
Spindle Speed: 10,000 RPM
Tool Changer: 20 ATC
Table Size: 23" x 52"
Equipped With:
Haas CNC Control
Gearbox 2-Speed Spindle
30 Horsepower Vector Drive
1 MB Expanded Memory
4th Axis Drive and Wiring
Chip Auger
Coordinate Rotation and Scaling
User Defined Macros
Programmable Coolant
Remote Jog Handle
Visual Quick Code
Rigid Tapping
