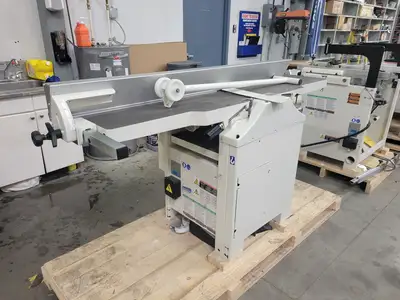

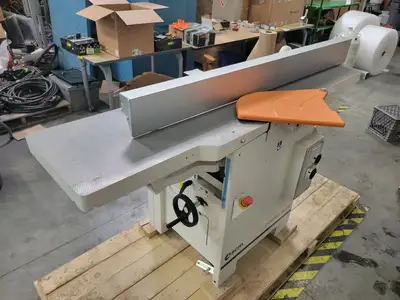

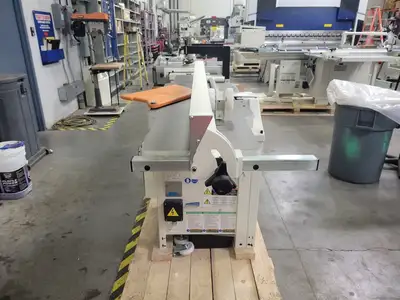

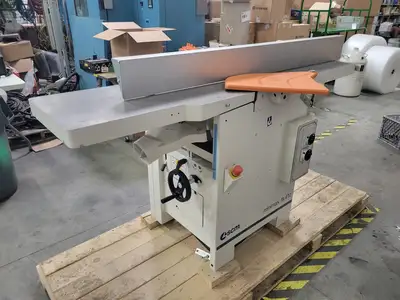

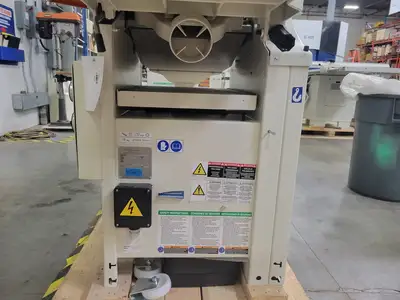

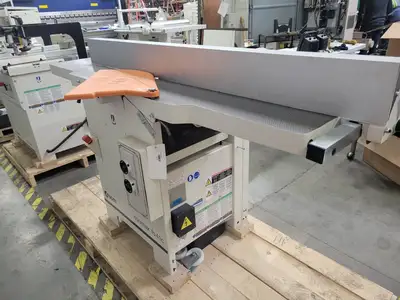

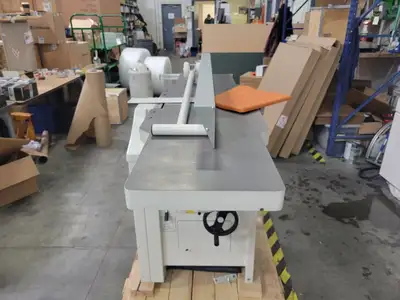

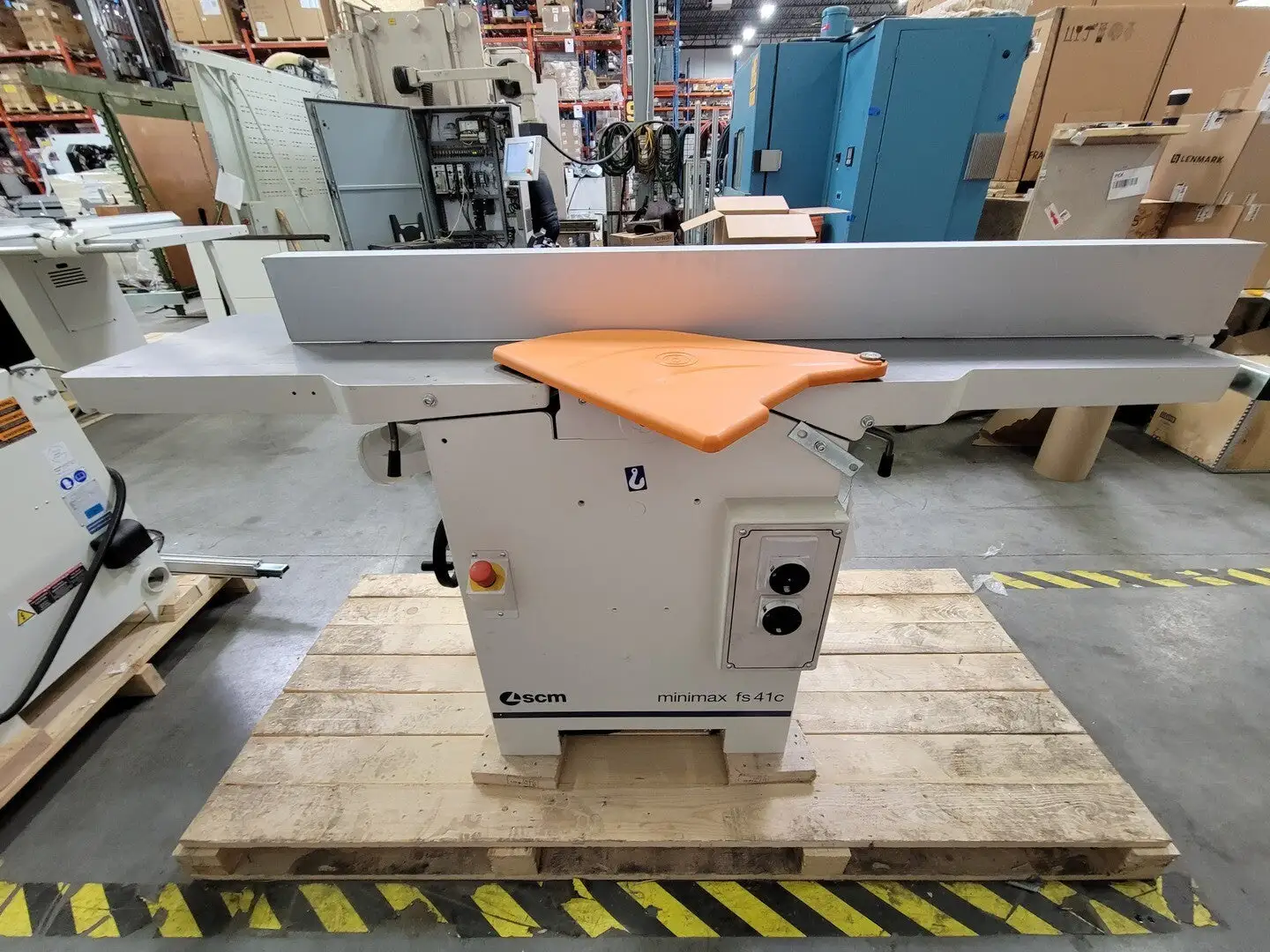

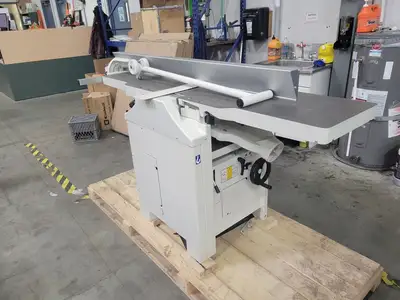

NEW SCM MINIMAX FS 41C

Horsepower: 4.8 hp
Max. Workpiece Width: 410 mm / 16.14 "
Max. Workpiece Thickness: 230 mm / 9.05 "
Type: Tersa
Voltage: 220 volts
Phase: Single-phase
** Combination machine of Planer, Jointer
Tersa Cutterblock Diameter: 87 mm
Noo of Standard Knives: 3
Dimension of Standard Knives: 410 x 30 x 3 mm
Max. Stock Removal: 4 mm
Surfacing Tables Total Length: 1800 mm
Thicknessing Table Dimensions: 410 x 605 mm
Feed Speed on Thicknesser: 7 m/min
Min. / Max. Working Height on Thicknesser: 3 / 230 mm
Exhaust Hoods Diameter: 120 mm
Additional Features
Wheels for machine movement
Triple Wall
Delivery Ex Factory
