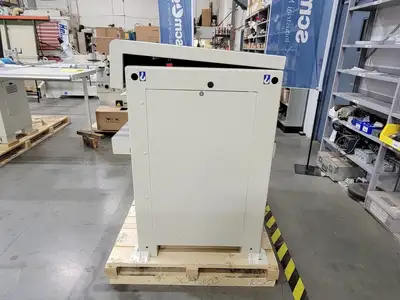

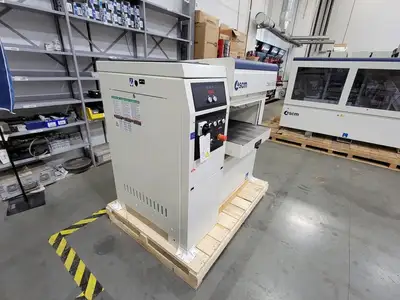

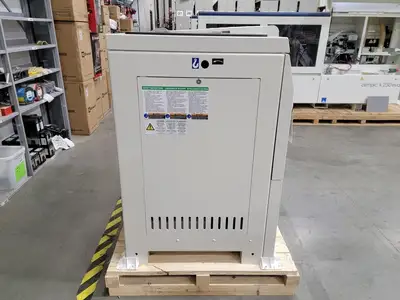

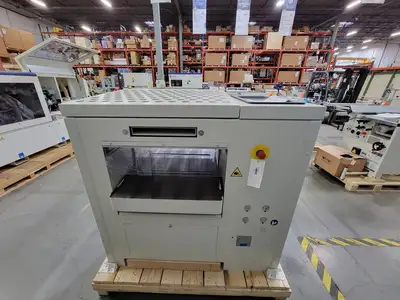

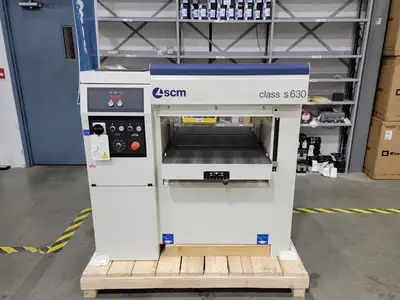

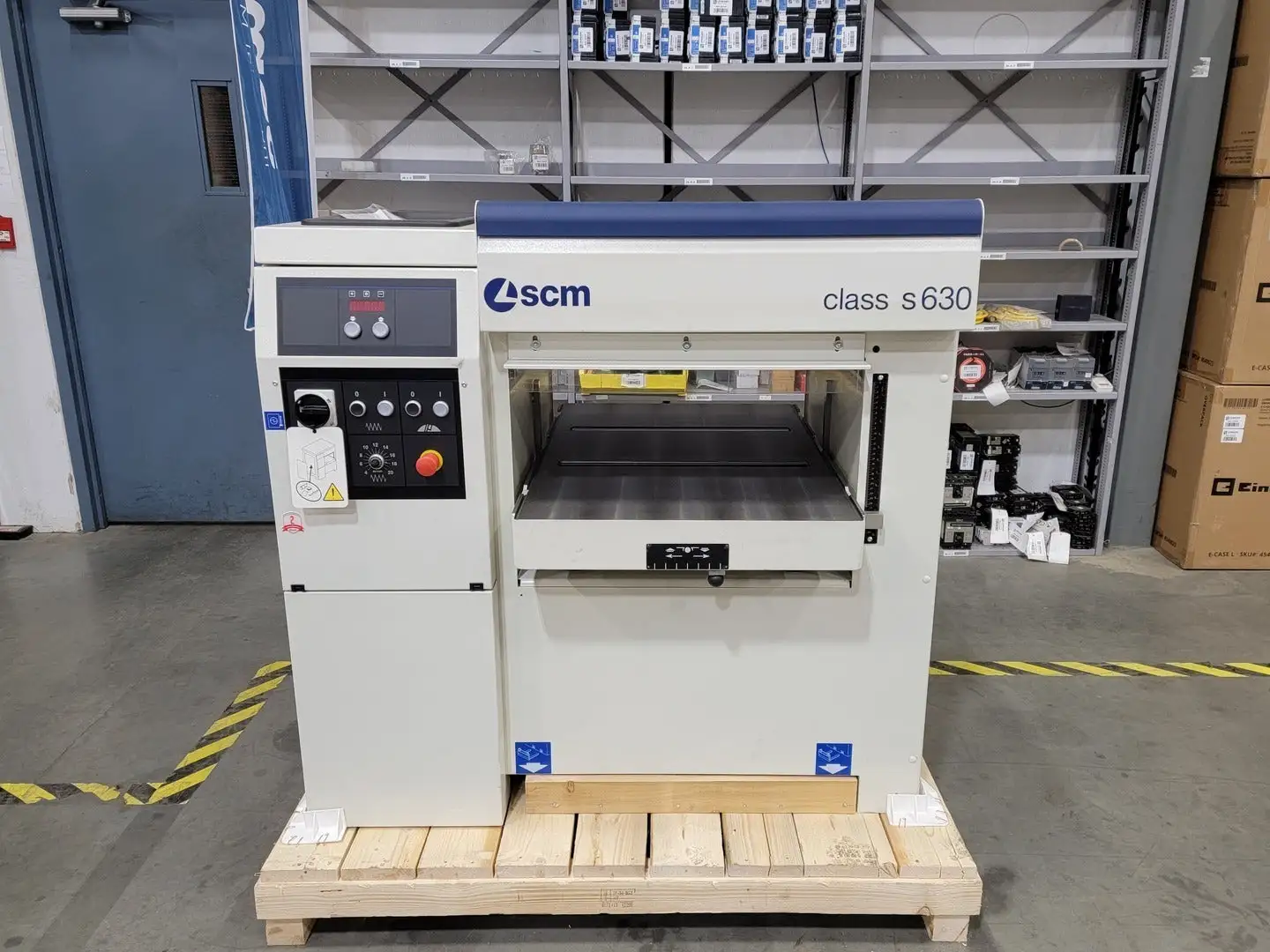

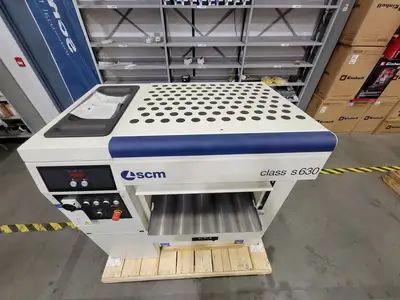

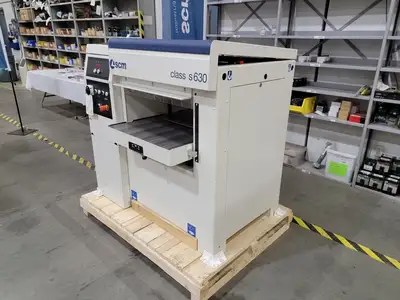

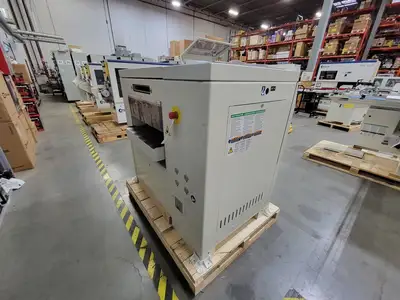

NEW SCM CLASS S 630

Horsepower: 15 hp
Max. Workpiece Width: 630 mm / 24.8 "
Max. Workpiece Thickness: 300 mm / 11.8 "
Type: Xylent
Voltage: 600 volts
Phase: 3-phase

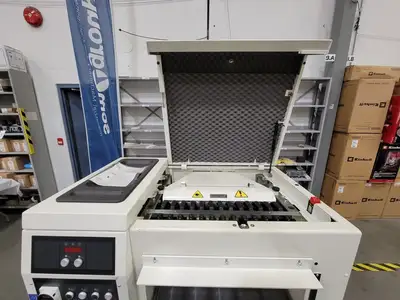

"Xylent" Spiralknife Cutterblock with 3 Series of Knife
Complete with:
No. 105 plates, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
No. 1 dynamometric key for the correct and safe use of the locking
No. 2 inserts for the dynamometric key
Motor Power: 11 kW / 15 hp @ 60 Hz, complete with automatic star-delta start
Worktable dimension: 630 x 1000 mm
Working height (min/max): 3/300 mm
Max. stock removal: 8 mm
Min. working length: 260 mm
Min. working width: 10 mm
Cutterblock speed: 4500 rpm
Cutterblock diameter: 120 mm
Adjustable feed speed: 4-20 m/min
Exhaust outlet diameter: 150 mm
Standard Equipment and Options
Powered lifting of thicknessing table, 2 speeds with micrometric adjustment
Electronic digital readout of working height with decimal control
Variable feed speeds of workpiece, electronically controlled by means of inverter from 4 to 20 m/min
Thicknessing table with vertical moving by means of 4 steel screws

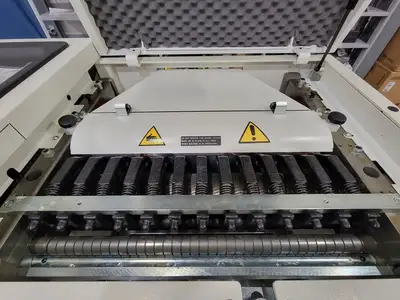

1st front roller in helicoidal steel
2 (two) outfeed top feed roller with rubber coating
Interchangeable feed rollers
Cutterblock and knife fitting gibs with technical specs. and instructions engraved on same with knife-setting device
Additional Features
Thicknessing table with 2 idle rollers
First sectional feed roller in steel alternative to the STD toothed roller
Xylent maintenance kit
10 spare inserts kit (15x15x2.5) for Xylent spindle
Seaworthy packing
