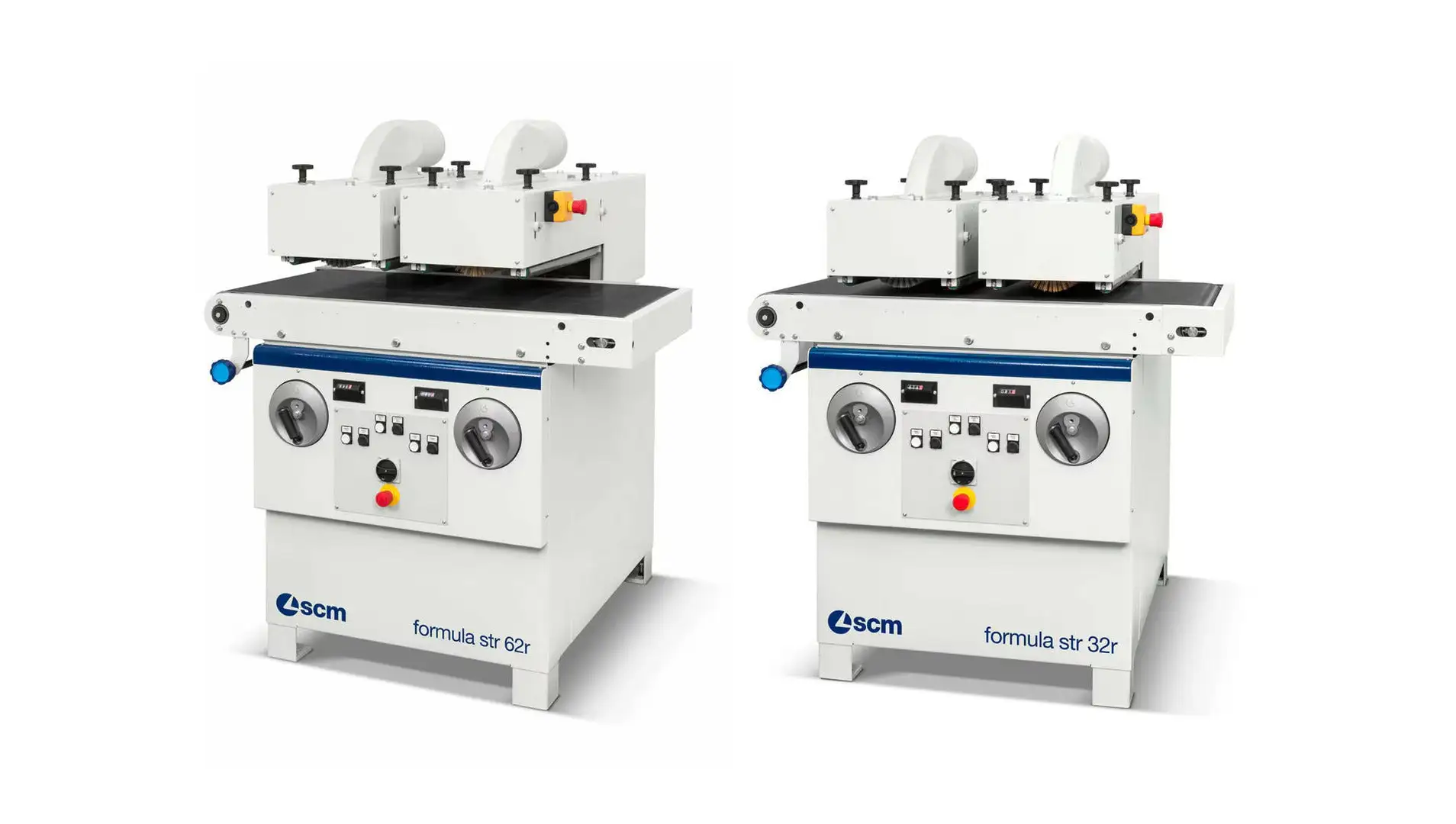

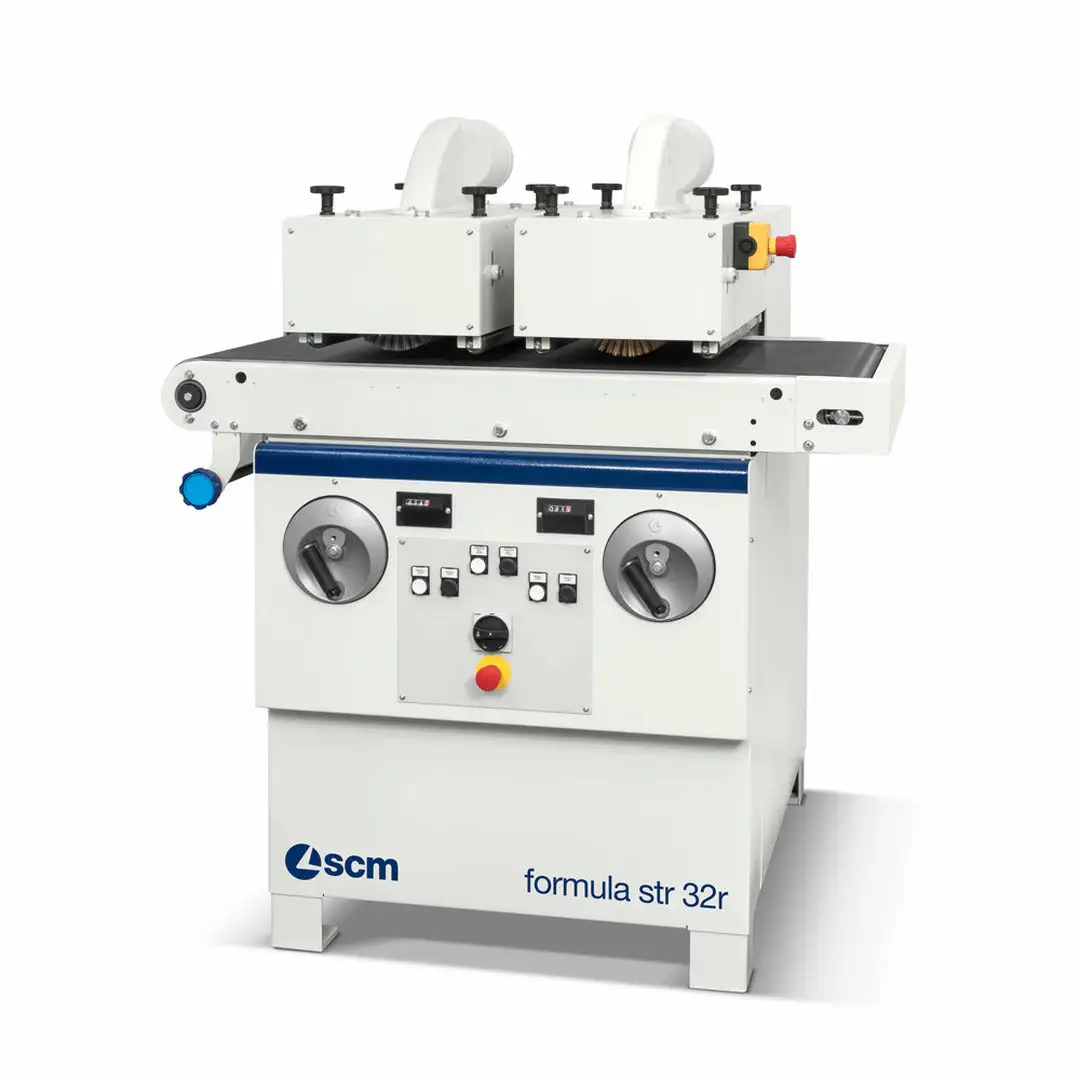

NEW SCM STR 32R

Phase: 3-phase
Advantages:
Perfect Finish:
The double operating unit allows to obtain the request finish in a single passage.
Effective Extraction System:
The large diameter exhaust hoods grants an optimal dust extraction.
The Best Adherence:
Thanks to the rubber belt with vertical grooves.
Operating Units Lifting:
By means of handwheels and numerical readout.
Technical Data:
Number of Machining Units: 2
Working Width(mm): 300
Max. Working Height(mm): 300
Machining Unit Motor Power @ 50 Hz(kW): 3
Feed Speed Motor Power @ 50 Hz(kW): 0.22
Exhaust Outlets Diameter(mm): 2 x 150
Brushes Speed(rpm): 1500
Feed Speed(m/min): 3 / 20
Brush Diameter(mm): 190 / 190
Net Weight(kg): 440
Dimensions (Width x Depth x Height)(mm): 1300 x 900 x 1300
