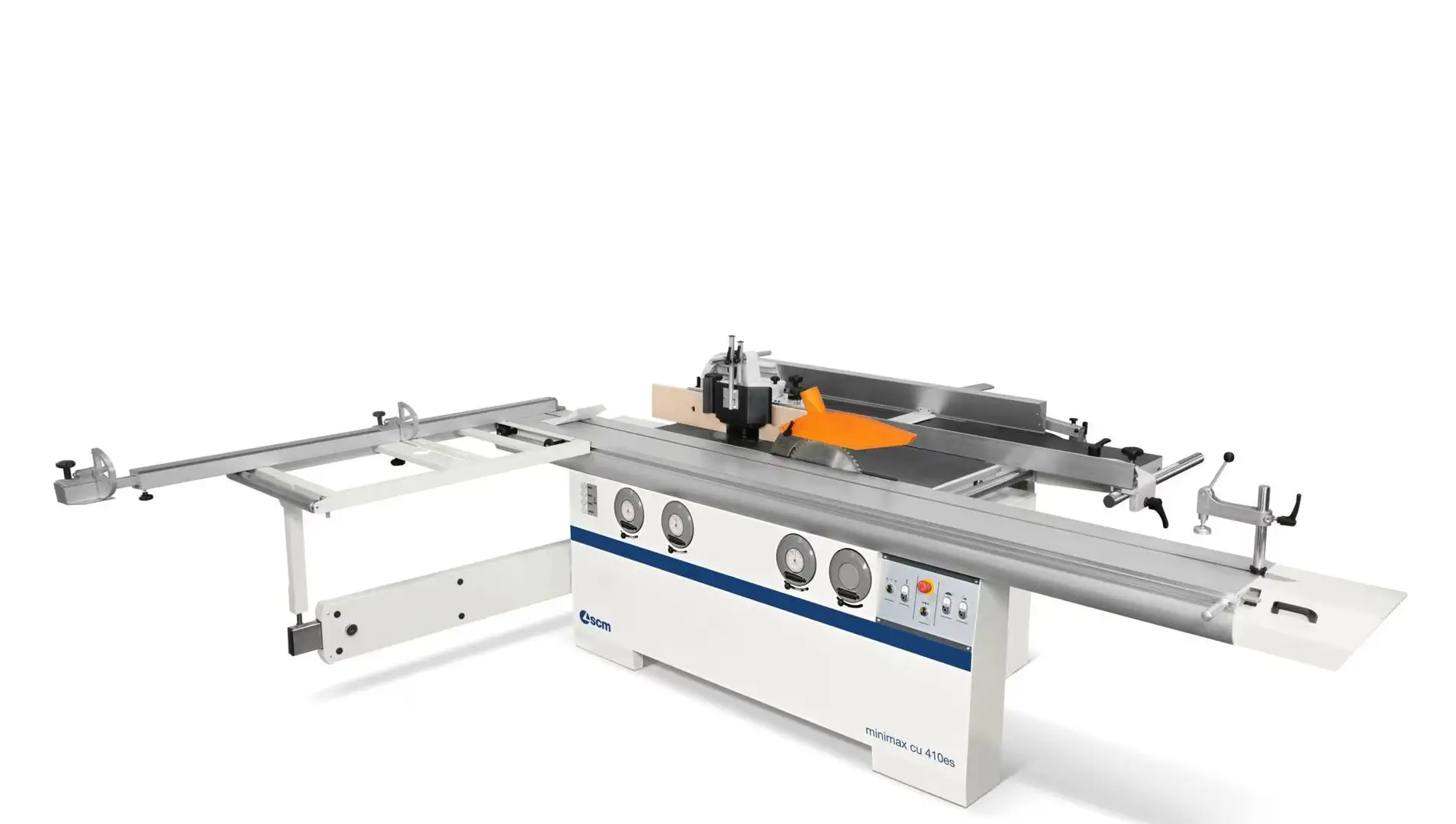

NEW SCM CU 410ES

Horsepower: 8 hp
Table Size: 2600 mm
Blade Diameter: 350 mm
Voltage: 220 volts
Phase: 3-phase
Saw Type: Table Saws
CNC: No
Cutterhead working width: 16 in. // 410 mm
Jointer bed length: 86 in. // 2200 mm
Max. sawblade diameter with scoring blade installed: 14 in. // 350 mm
Sawblade arbor size: 1 in. // 25 mm
Max. sawblade projection from table at 90°/45°: 4.64 in. // 118 mm / 0.18 in. // 4.64 mm
Cutting width on parallel fence (Rip capacity): 39 in. // 1000 mm
Max. useful spindle length: 5 in. // 125 mm
Max. tool diameter when profiling: 9.44 in. // 240 mm
Spindle moulder speed: 1700/4000/7000/9000 rpm
(3x) Three-phase motors: 8 Hp
Max. squaring stroke of sliding table saw: 8.5 ft. // 2600 mm
