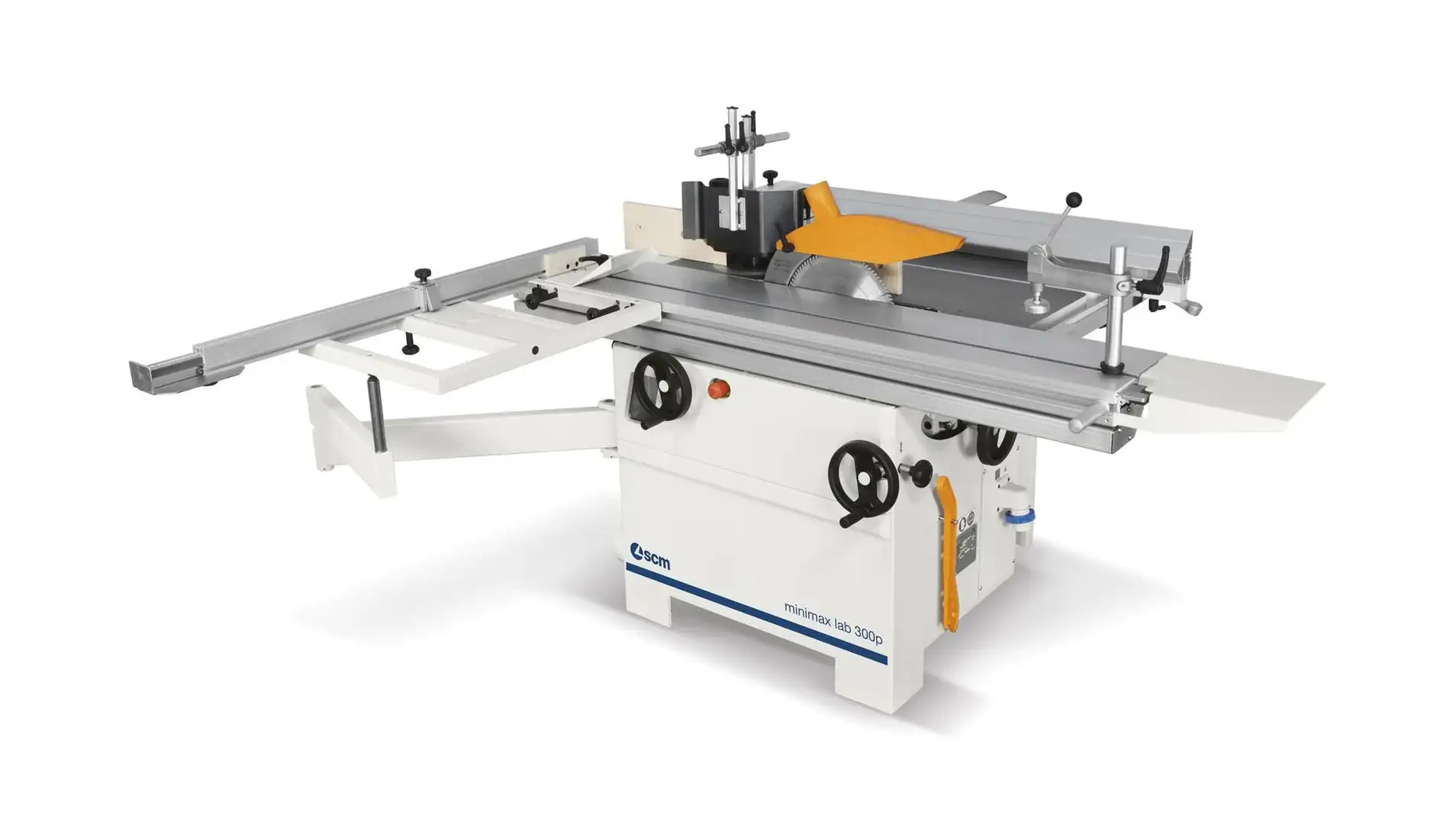

NEW SCM LAB 300P

Horsepower: 5.5 hp
Table Size: 1600 mm
Blade Diameter: 315 mm
Voltage: 400 volts
Phase: 3-phase
Saw Type: Table Saws
CNC: No
Cutterhead working width: 12 in. // 300 mm
Jointer bed length: 51 in. // 1300 mm
Max. sawblade diameter with scoring blade installed: 12 in. // 315 mm
Max. sawblade projection from table at 90°/45°: 3.94 / 3.07 in. // 100 / 78 mm
Cutting width on parallel fence (Rip capacity): 31.5 in. // 800 mm
Max. useful spindle length: 4 in. // 100 mm
Max. tool diameter when profiling: 8.27 in. // 210 mm
Spindle moulder speed: 4000 / 7000 / 9000 rpm
(3x) Single-phase motors: 3.4 Hp
Max. squaring stroke of sliding table saw: 5.5 ft. // 1600 mm
