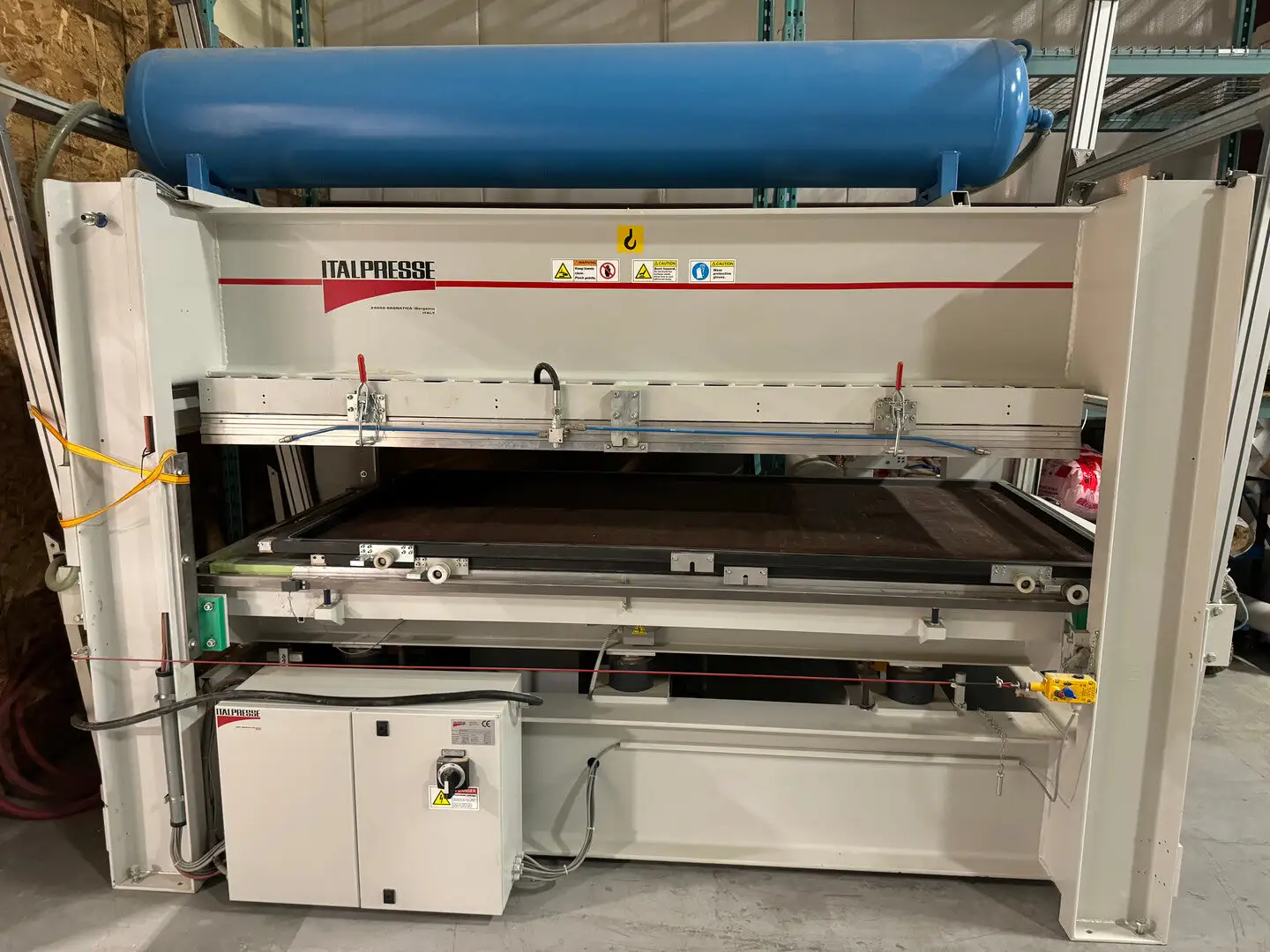

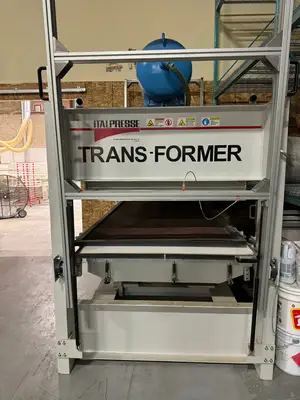

USED 2018 ITALPRESSE TRANS-FORMER

Voltage: 400 volts
Phase: 3-phase

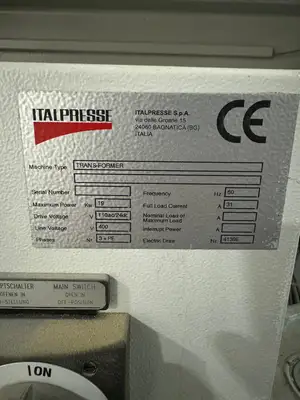

Electrical:
Max. power: 19 kW // 25.5 hp
Drive voltage: 110 volts AC / 24 volts DC
Line voltage: 400 volts
Phase: 3 + PE
Full load current: 31 amps
Frequency: 60 Hz
Flat pressing:
Platens dimensions: 2500 x 1300 mm // 98.4 x 51.2 in.
Opening: 400 mm // 15.7 in.
Loading side: 2500 mm // 98.4 in.
Total pressure: 105 tonn.
Max. platens temperature: 130 °C
3D membrane pressing:
Loading side: 1300 mm // 51.2 in.
Inside frame dimensions: 2380 x 1180 mm // 93.7 x 46.5 in.
Maximum thickness: 55 mm // 2.17 in.
