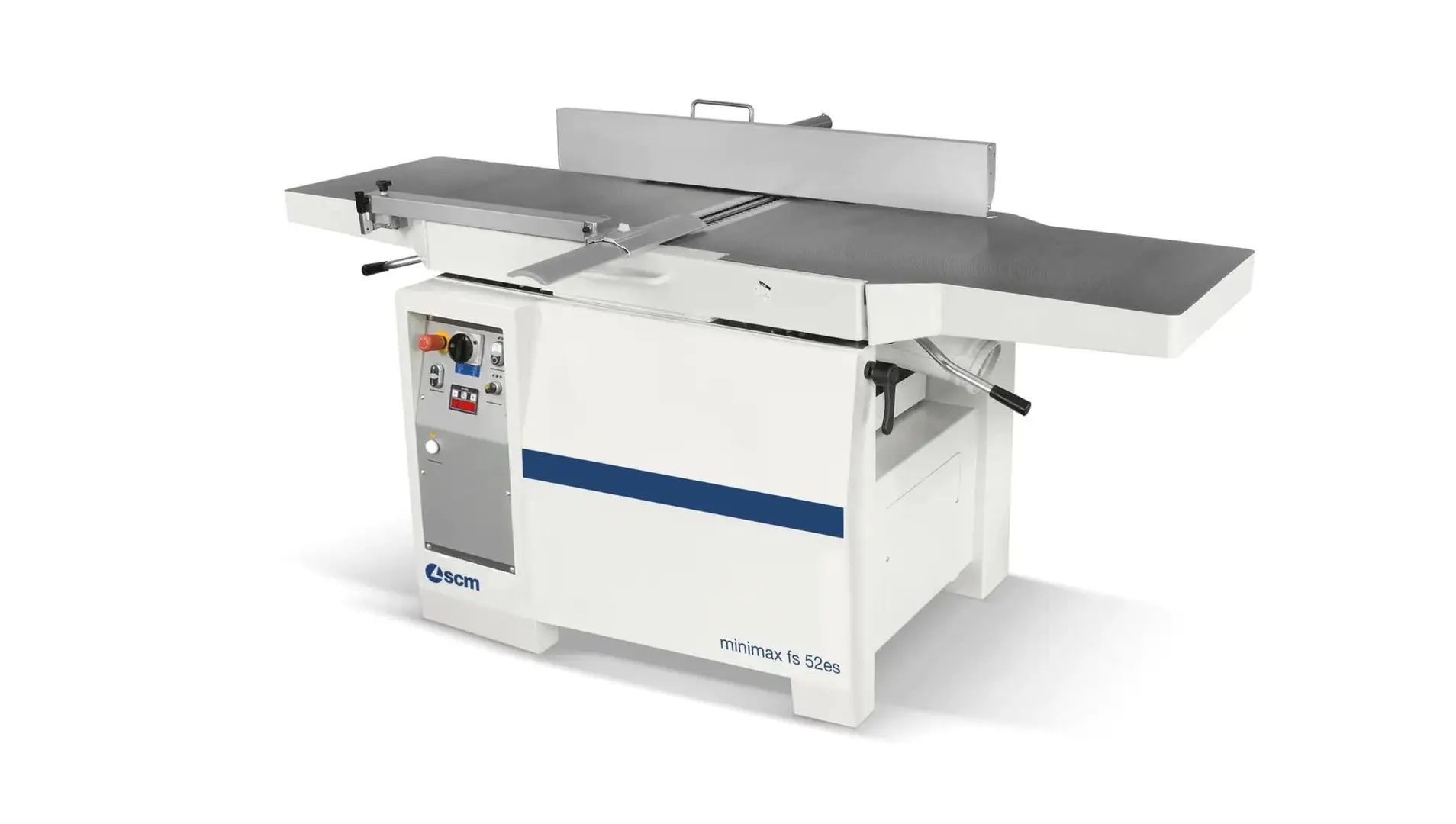

NEW SCM FS 52ES - X - 3PH

Horsepower: 11 hp
Max. Workpiece Width: 20.5 "
Table Size: 2250 mm x 520 mm
Voltage: 400 volts
Phase: 3-phase
Working width: 520 mm // 20.47 in.
Cutterblock diameter / no. of standard knives: 120/4 mm // 4.72/4 in.
Dimension of standard knives: 520 x 30 x 3 mm // 20.47 x 1.18 x 0.12 in.
Max. stock removal: 5 mm // 0.20 in.
Surfacing tables total length: 2250 mm // 88.58 in.
Thicknessing table dimensions: 520 x 775 mm // 20.47 x 30.51 in.
Feed speed on thicknesser: 5 / 8 / 12 / 18 m/min
Min. / max. working height on thicknesser: 3 / 240 mm // 0.12 / 9.45 in.
Three-phase motors starting from: 7 (9) / 50 (60) kW/Hz
