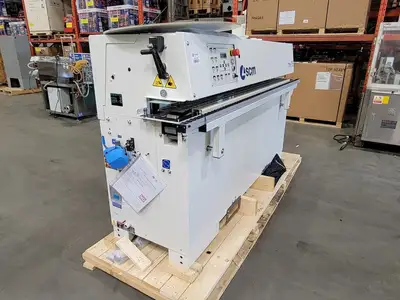

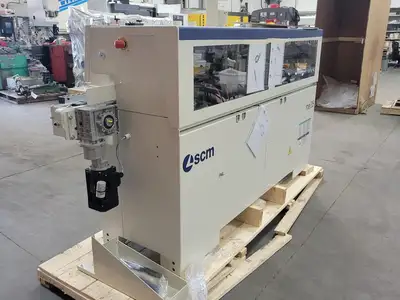

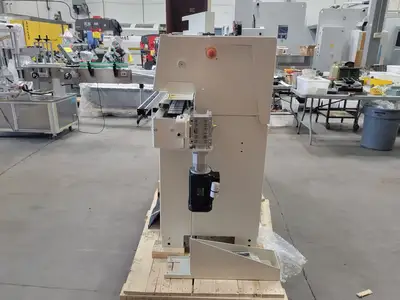

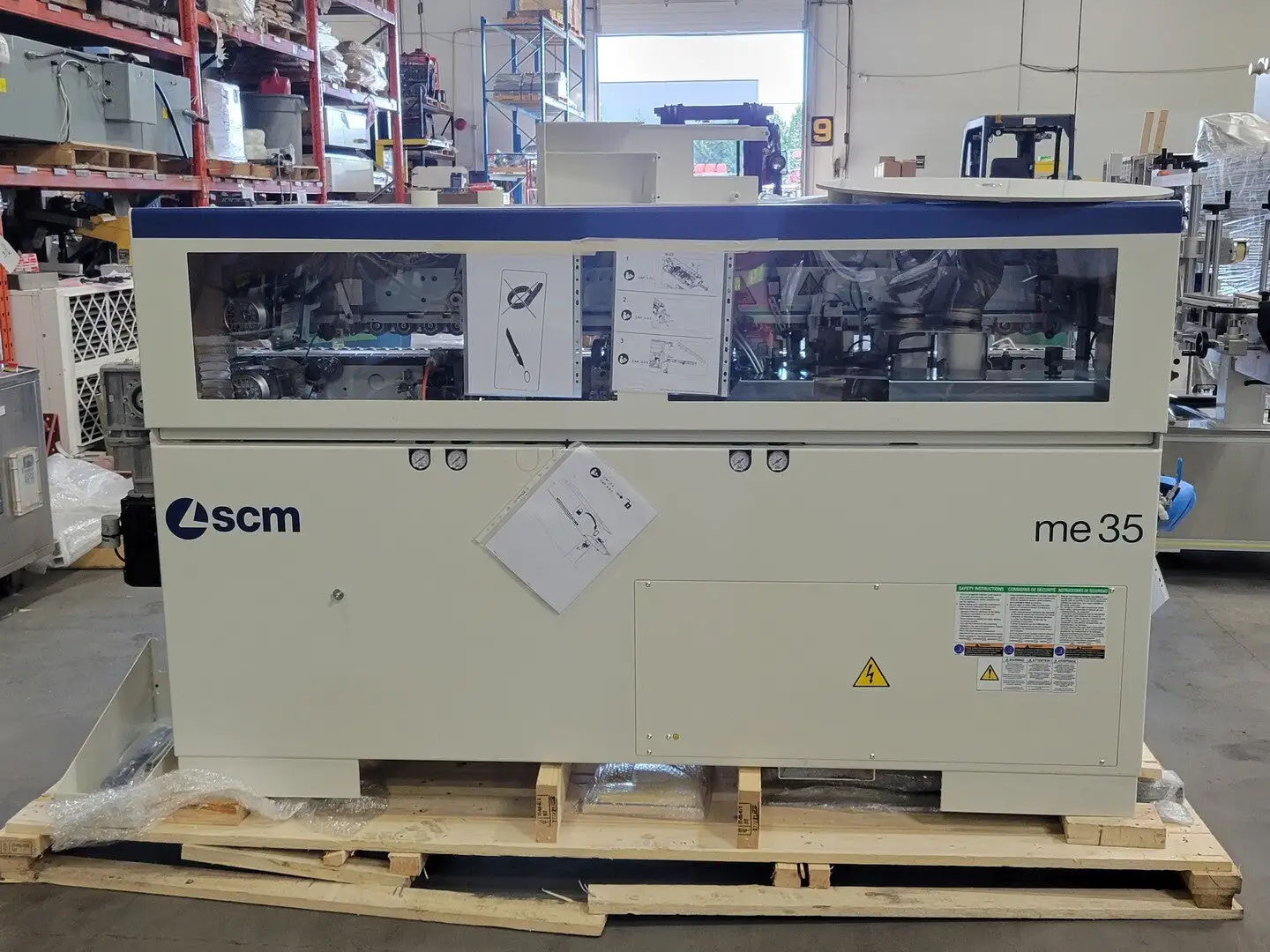

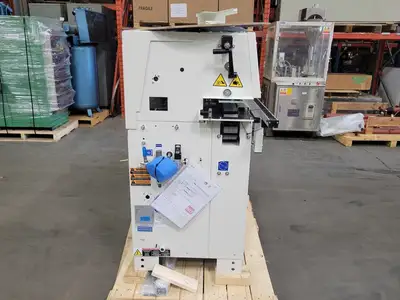

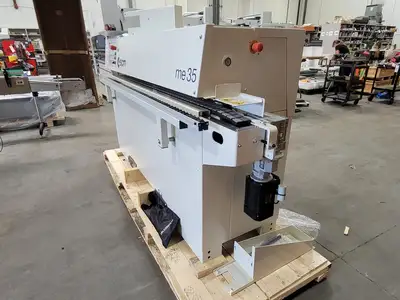

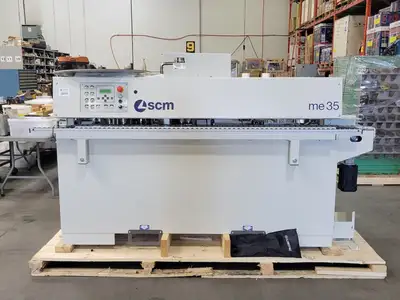

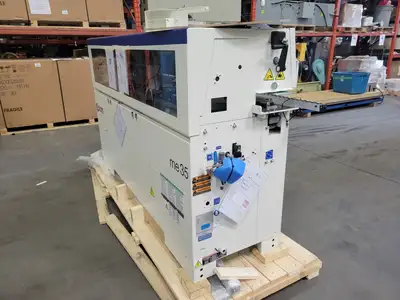

NEW SCM ME 35T

Control System: PLC
Voltage: 220 volts
Phase: Single-phase
Technical Features
Worktable Dimensions (Length x Width x Height): 3000 x 525 x 904 mm
Thickness of Rolled Edges: 0.4 mm - 3 mm
Thickness of Edges in Strips: Up to 5 mm
Min. / Max. Panel Height: 8 / 50 mm
Min. Panel Length/Width with Rolled Edges: 190/110 mm
Min. Panel Length (Cut Only On the Front): 120 mm
Feed Motor Power S1: 0.55 kW
Feed Speed: 7 m/min
Pneumatic Operating Pressure: 6.5 bar
Operating Temperature Range: 20 - 190 oC
Exhaust Outlet Diameter (glue pot): 60 mm
No. 2 Exhaust Outlets Diameter (trimming unit): 60 mm
Pre-Milling Unit
No. 2 Exhaust Outlets Diameter: 80 mm
Motor Power (S1): 2.2 kW
Blade Rotation Speed: 7200 rpm
No. 2 Diamond Cutters: Diameter 80 mm H56 Z2
Stock Removal: 0.5 / 1 / 1.5 / 2 mm
Glue Pot Unit
Motor Power S1: 0.18 kW
Glue Capacity: 0.8 kg
End Cutting Unit with Radius Function
Motor Power SI: 0.19 kW
End Cutting Blade: Diameter 125 mm Z12
Blade Rotating Speed: 12000 rpm
Trimming Unit
Upper/Lower Motor Power (S1): 2 / 0.35 kW
Widia Cutters: Diameter 55.3 mm Z3
Cutters Rotation Speed: 12,000 rpm
Vertical/Horizontal Copying Devices: Rotating/Rotating
Additional Features
Brushing Unit
Glue Scraping Unit
Automatic loading device for edges in strips
Triple Wall Package
