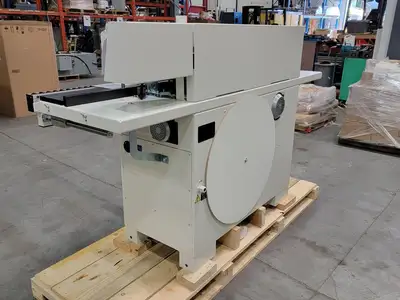

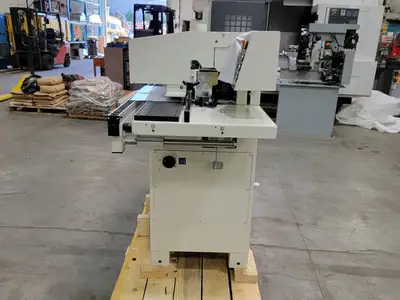

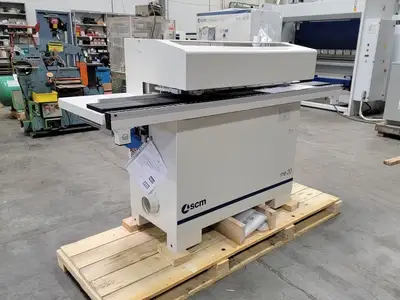

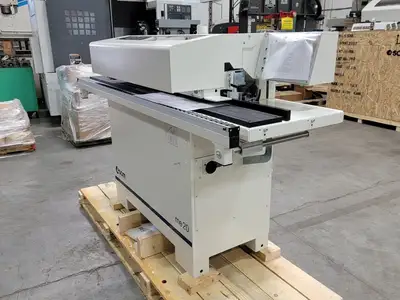

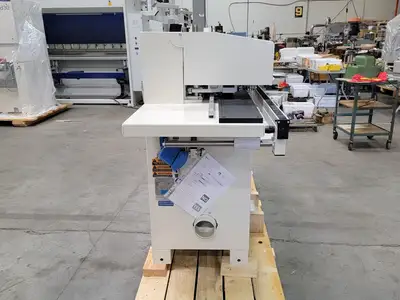

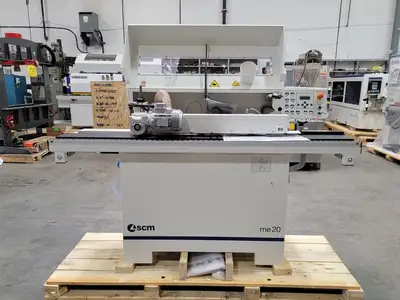

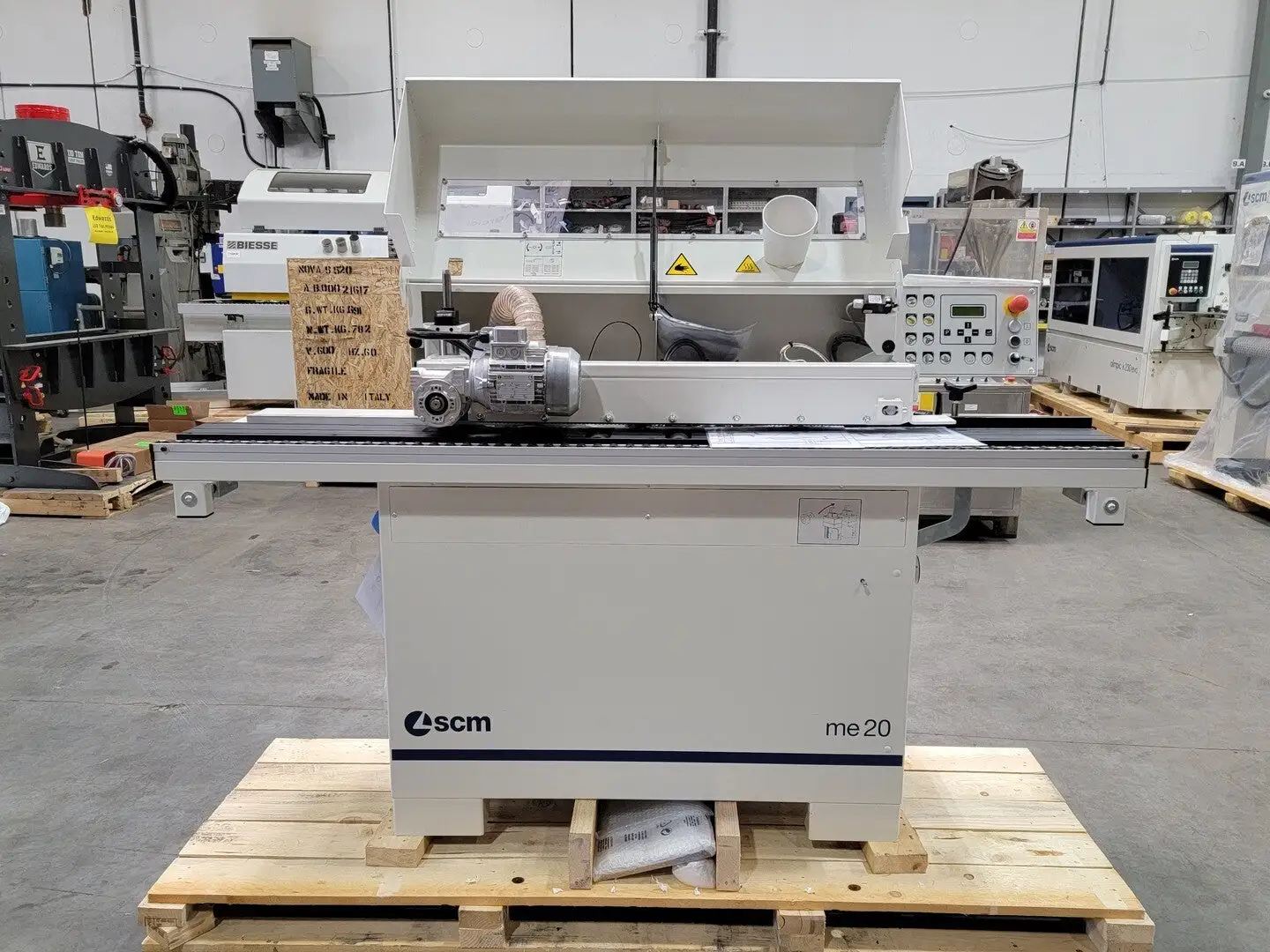

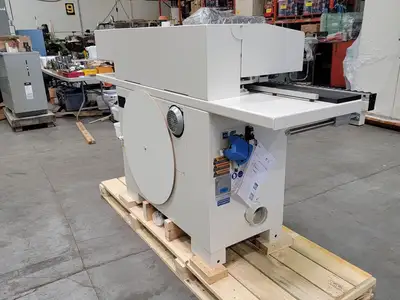

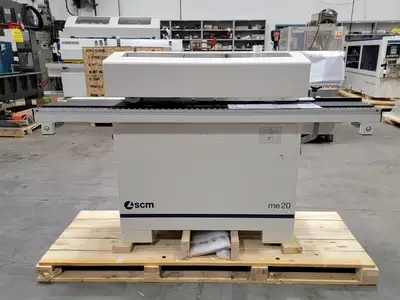

NEW SCM MINIMAX ME 20

PUR Glue Compatible: No
Control System: PLC
Voltage: 220 volts
Phase: Single-phase
Main Features
Effective and efficient solid wood edge banding up to 5 mm and with 50 mm height
Technical Features

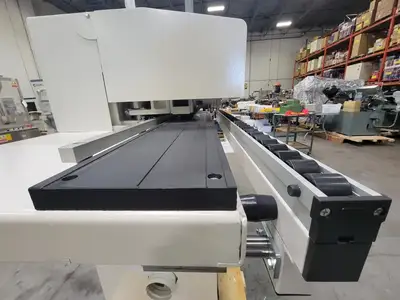

Worktable Dimensions (Length x Width x Height): 1950 x 180 x 904 mm
Thickness of Rolled Edges: 0.4 mm - 2 mm
Max. Thickness of Edges in Strips: 5 mm
Min. / Max. Working Height: 12 / 50 mm
Min. Panel Length/Width with Rolled Edges: 180/65 mm
Min. Panel Length (Frontal End Cutting Only): 120 mm

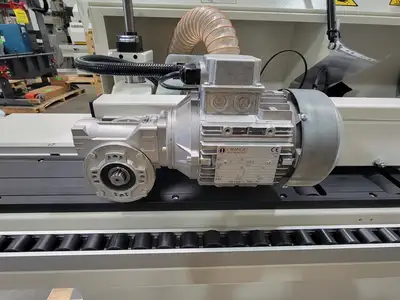

Feed Motor Power S1: 0.25 kW
Feed Speed: 6 m/min
Pneumatic Operating Pressure: 6.5 bar
Operating Temperature Range: 20 - 190 oC
Exhaust Outlet Diameter (base): 120 mm
Exhaust Outlet Diameter (glue pot): 60 mm

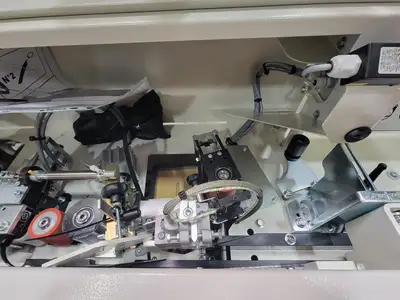

Glue Pot Unit
Motor Power S1: 0.18 kW
Glue Capacity: 0.5 kg

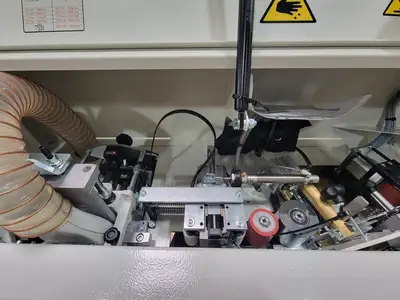

Trimming Unit
Motor Power S1: 0.55 kW
Widia Cutters: Diameter 75 mm Z4
Cutters Rotation Speed: 12,000 rpm
Additional Features
End Cutting Unit
Triple Wall
