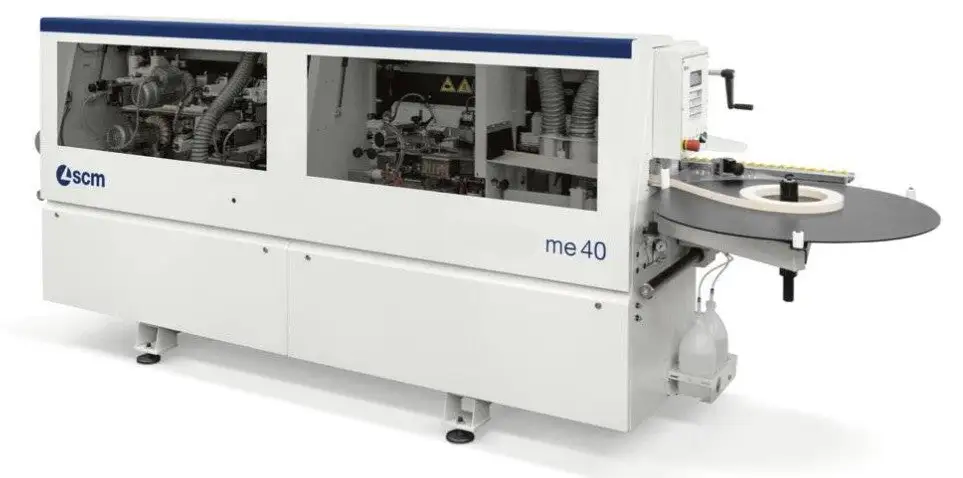

NEW SCM ME 40ETR HP

Control System: PLC
Voltage: 230 volts
Phase: Single-phase
Main Features:
"eye-S" COMPACT CONSOLE
Optimal managing of the machine thanks to the new 10" touch screen control panel with Maestro active edge, where all of the machine functions are graphically shown.
ROUNDING UNIT: UNMATCHABLE FINISH
Rounding unit with rigid structure for a unique quality of work in its segment.
FLEXIBILITY AND EASE OF USE
TRIMMING UNIT and SCRAPING UNIT with MULTIRADIUS TOOL
Pneumatic on/off system of the units controlled by the eye-S panel
Technical Features
Worktable Dimensions (Length x Width x Height): 3465 x 710 x 875 mm
Thickness of Rolled Edges: 0.4 mm - 3 mm
Thickness of Edges in Strips: Up to 5 mm
Min. / Max. Panel Height: 8 / 50 mm
Min. Panel Length/Width with Rolled Edges: 190/110 mm
Min. Panel Length Cut Only On The Front: 120 mm
Feed Motor Power: 0.55 kW
Feed Speed: 9 m/min
Pneumatic Operating Pressure: 6.5 bar
Operating Temperature Range: 20 - 190 oC
Exhaust Outlet Diameter (glue pot): 80 mm
No. 2 Exhaust Outlets Diameter (trimming unit): 60 mm
Pre-Milling Unit
Motor Power: 3 kW
No. 2 Exhaust Outlets Diameter: 80 mm
Blade Rotation Speed: 7200 rpm
No. 2 Diamond Cutters: Diameter 80 mm H=56 Z2
Stock Removal: 0 / 2 mm
Glue Pot Unit
Motor Power: 0.25 kW
Glue Capacity: 0.8 kg
End Cutting Unit w/ Radius Function
Motor Power: 0.19 kW
End Cutting Blade: 125 mm diameter, Z20
In-Line (Top & Bottom) Trimming Unit
Upper/Lower Motor Power (S1): 2 / 0.35 kW
Widia Cutters: Diameter 55.3 mm Z3
Cutters Rotation Speed: 12,000 rpm
Vertical/Horizontal Copying Devices: Rotating/Rotating
Rounding Unit
Motor Power: 0.35 kW - 12000 rpm
Cutter: Diameter 58 mm Z3
With high frequency motor, driven directly from control panel
Profile Scraping
Glue Scraping
Brushing Unit:
Motor Power: 2 x 0.14 kW - 2800 rpm
Additional Features
Edge scraping unit
Glue Scraping Unit
Brushing Unit
Automatic loading device for edges in strips
Kit for Glue Pot Rapid Substitution
Internal machine lightening
Tools kit radius 3 mm (replaces all standard 2 mm radius tools supplied)
Pallet
Machine language: English
