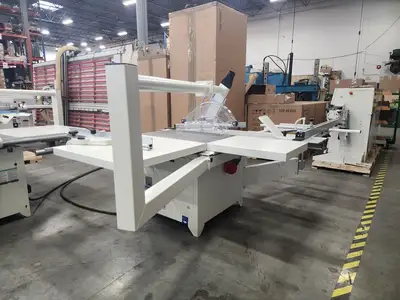

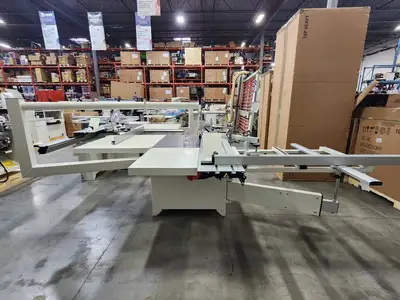

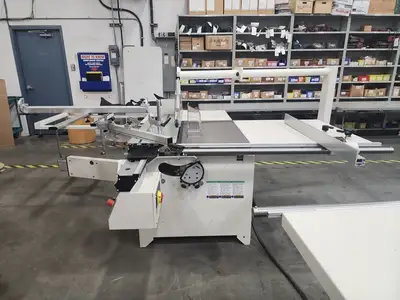

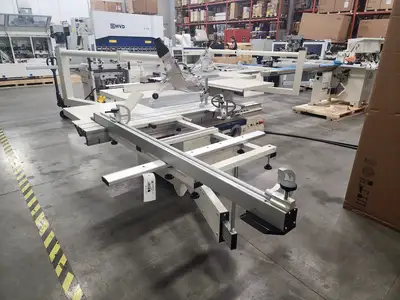

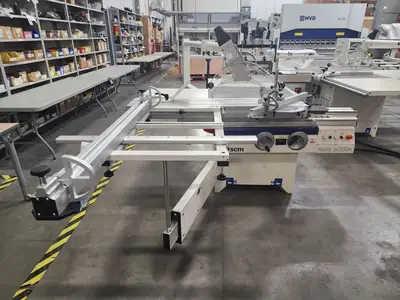

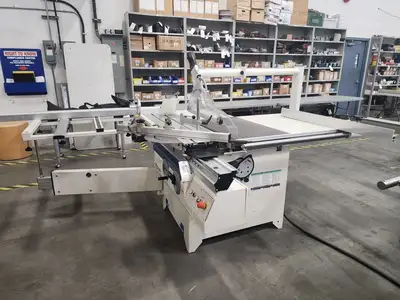

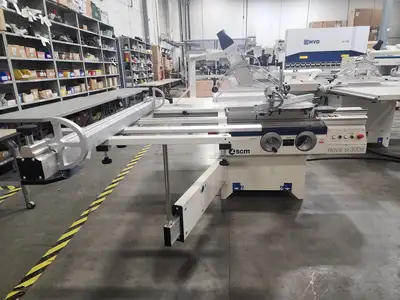

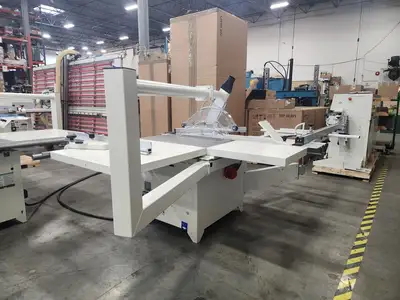

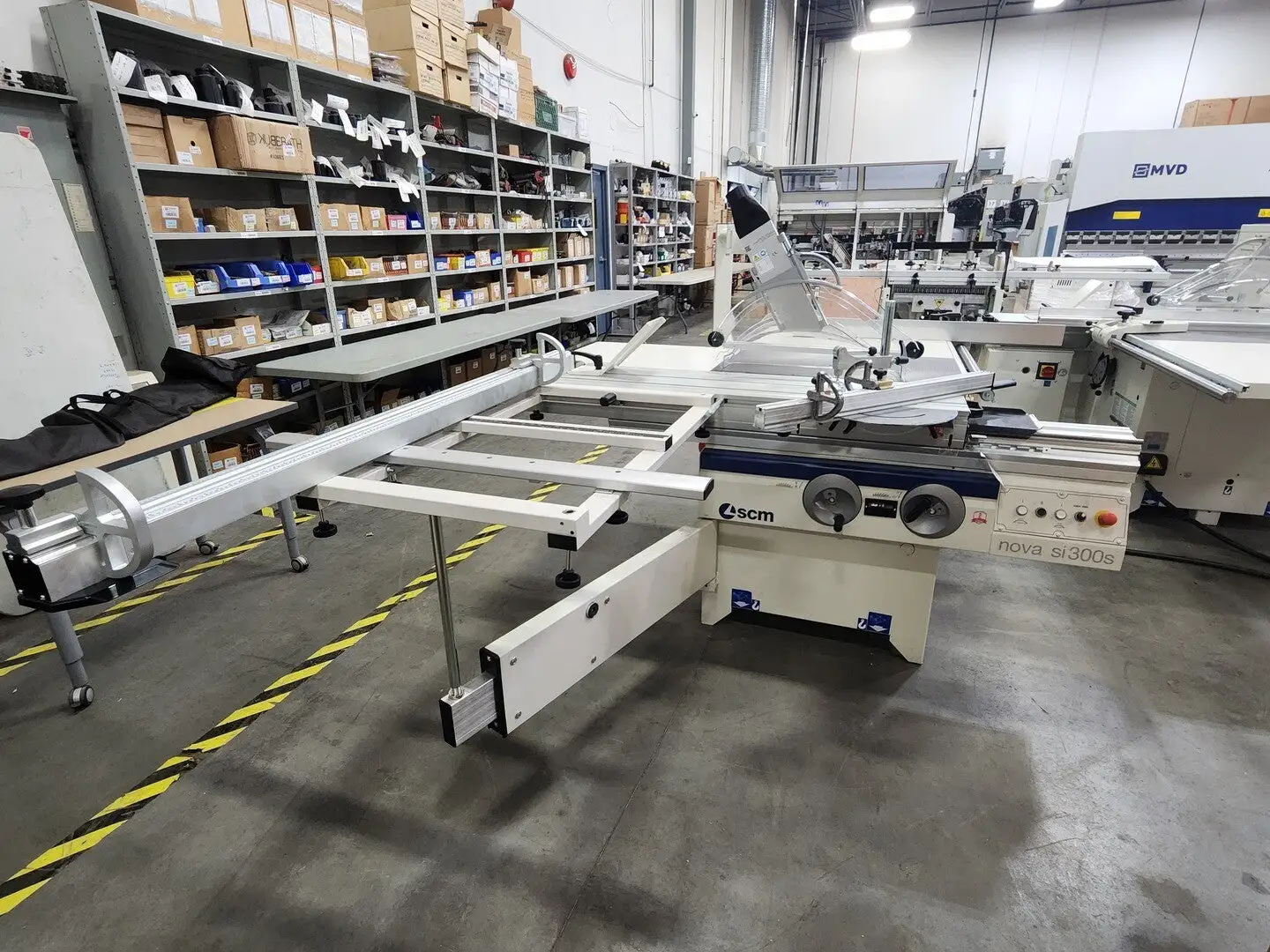

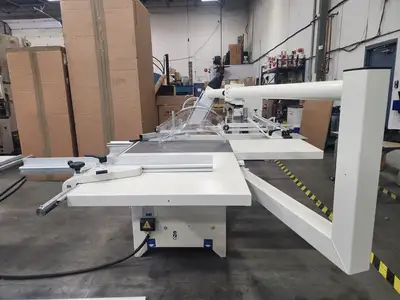

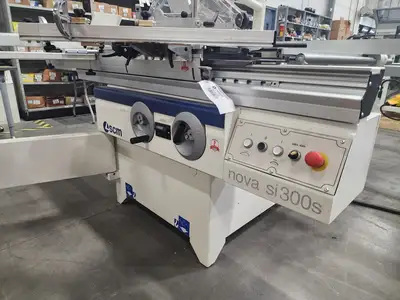

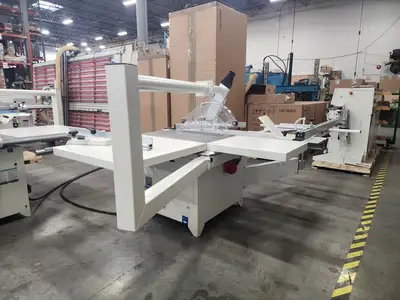

NEW SCM NOVA SI 300S

Horsepower: 11 hp
Table Size: 900 x 550 mm
Blade Diameter: 315 mm
Voltage: 600 volts
Phase: 3-phase
Saw Type: Sliding Saw
CNC: No
Max Cutting Height at 90o: 100 mm
Max Cutting Height at 45o: 70 mm
Blade Tilt: 45 degrees
Blades Lifting and Tilt: Manual
Main Blade Rotating Speed: 4000 rpm
Scoring Unit Rotating Speed: 8500 rpm
Scoring Unit Motor Power (S6 - 40%) @ 50 Hz: 1.3 kw (1.7 hp)

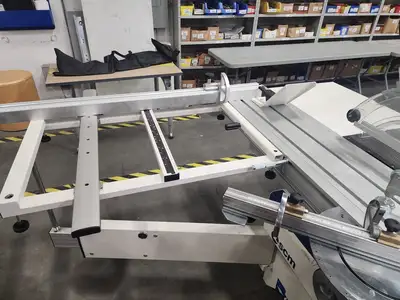

Squaring Capacity w/ 1600 mm Carriage: 1600 x 2600
Ripping Capacity on Parallel Fence: 1270 mm
Exhaust Outlet Diameter:
At the Base: 120 mm
On Overhead Protection: 80 mm
On Riving Knife: 60 mm
"DADO" Machining
Mechanical presetting to use a tool (not included) in place of the main blade:
203 mm / 8" max. diameter
30 mm internal diameter
20 mm max. thickness
40 mm max. working depth
Additional Features

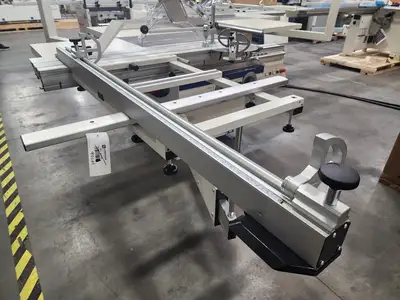

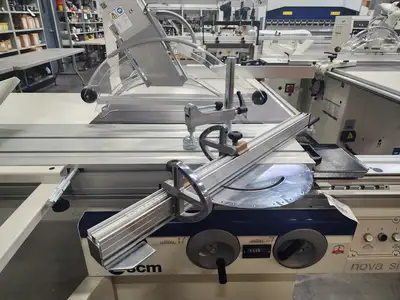

Angular cutting device with flip-over stops, equipped with:
Telescopic fence with two flip-over stops
Pre-set for angle rapid selection
Eccentric Clamp

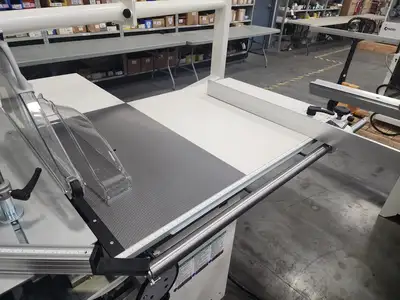

Overhead saw guard with incorporated dust extraction
Seaworthy packing
