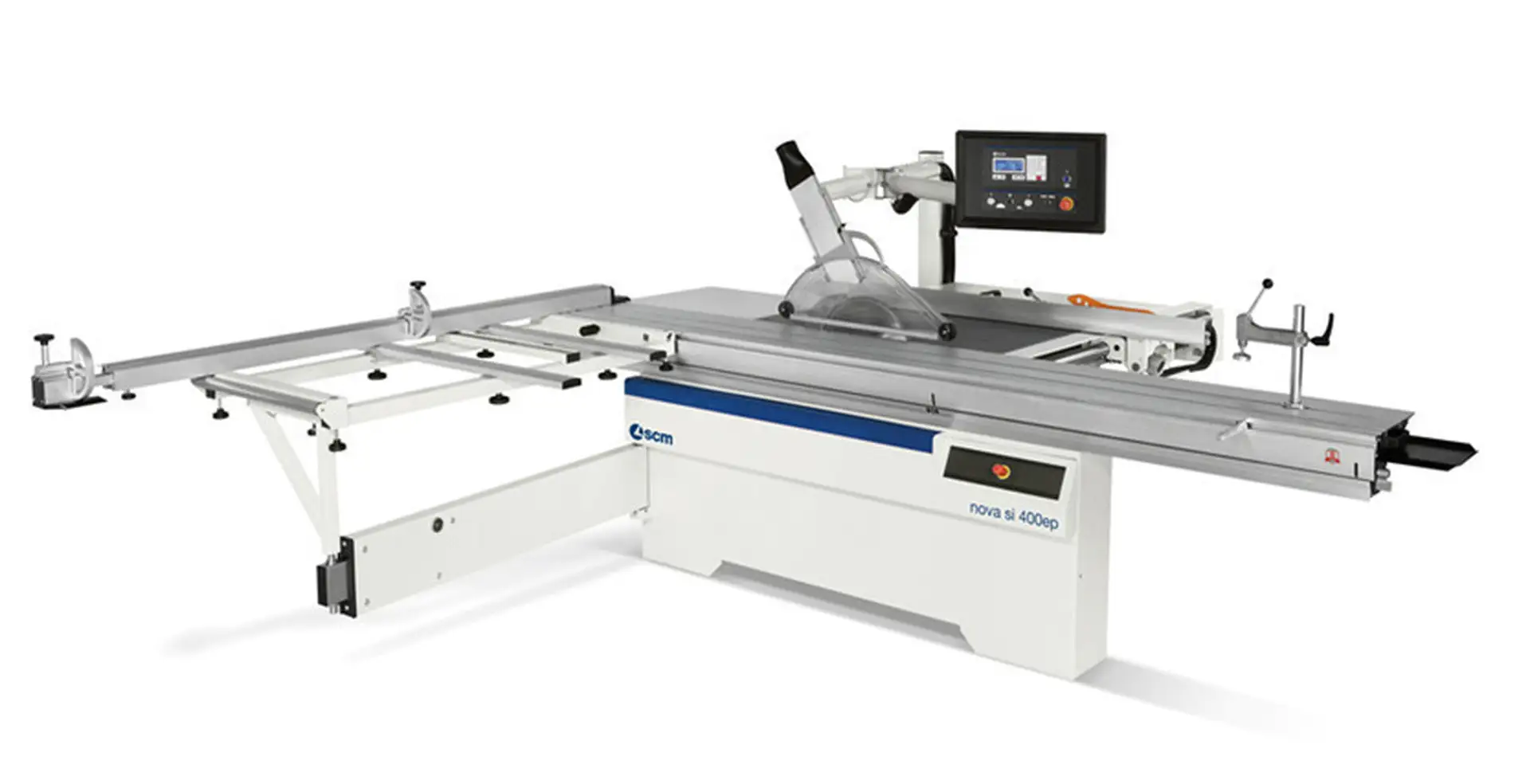

NEW SCM NOVA SI 400EP

Horsepower: 11 hp
Table Size: 1040 x 630 mm
Blade Diameter: 400 mm
Voltage: 600 volts
Phase: 3-phase
Saw Type: Sliding Saw
CNC: Yes
Max Cutting Height at 90o: 140 mm
Max Cutting Height at 45o: 97 mm
Blade Tilt: 45 degrees
Blades Lifting and Tilt: Programmed
Main Blade Rotating Speed: 3000 - 4000 - 5000 rpm
Scoring Unit Rotating Speed: 8500 rpm
Scoring Unit Motor Power (S6 - 40%): 1.3 kW (1.7 hp)
Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200
Cutting Width on Parallel Fence: 1270 mm
Exhaust Outlet Diameter:
At the Base: 120 mm
On Overhead Protection: 80 mm
On Riving Knife: N/A
Basic Machine Net Weight: 1050 kg
Standard Equipment and Options
Anodized aluminium alloy carriage sliding on hardened steel guides, which are fixed on the carriage by means of mechanical bending system
Sliding carriage length 3200 mm
Outfeed table extensions
Additional Features
"READY 3 UP" Version, complete with:
Powered parallel fence with electronic programmer
position readout on magnetic band
continuously adjustments by means of pushbutton
possibility of incremental positioning's
automatic set up
electronic readout of parallel fence position
sliding fence on bar 50 mm diameter
total exclusion of fence under the worktable
pneumatic self-locking device
presence detection system for the automatic change of fence position, according to the used fence profile (high or low)
Upper mobile control panel
Motor power complete with automatic star-delta start
11 kW / 15 hp @ 60 Hz (9 kW / 12 hp @ 50 Hz)
Squaring fence with no. 2 LCD readouts for stops position
Each stop with micrometric adjustment is equipped with electronic digital readout with detecting system on magnetic band and readout on LCD display
Device for angular cutting
Eccentric Clamp
Seaworthy packing with powered parallel fence
Saw blades are not included
