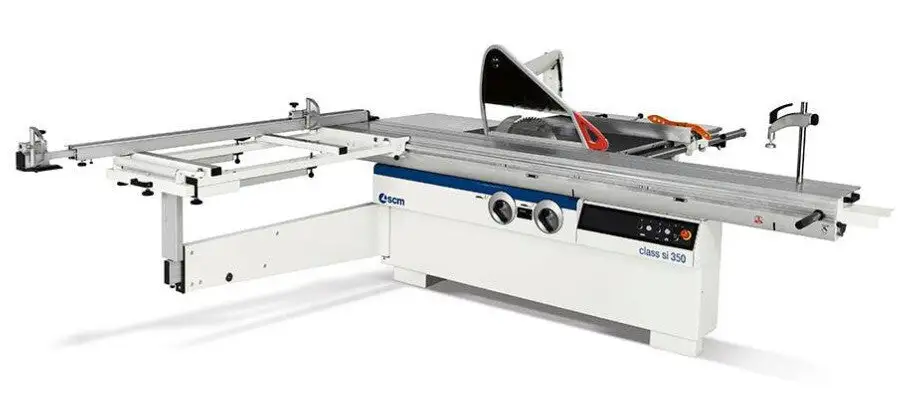

NEW SCM CLASS SI 350

Horsepower: 11 hp
Table Size: 1040 x 630 mm
Blade Diameter: 350 mm
Voltage: 600 volts
Phase: 3-phase
Saw Type: Sliding Saw
CNC: No
Max Cutting Height at 90o: 118 mm
Max Cutting Height at 45o: 81 mm
Blade Tilt: 45 degrees
Blades Lifting and Tilt: Manual
Main Blade Rotating Speed: 4000 rpm
Scoring Unit Rotating Speed: 8500 rpm
Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp)
Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm
Cutting Width on Parallel Fence: 1500 mm
Exhaust Outlet Diameter:
At the Base: 120 mm
On Overhead Protection: 100 mm
On Riving Knife: 60 mm
Basic Machine Net Weight: 1050 kg
Standard Equipment and Options
Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system
Eccentric clamp
Squaring frame the fast fence positioning of angular cuttings
Outfeed table extensions
Sliding carriage length 3200 mm
Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric adjustment
Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade
Additional Features
Motor Start/Stop Pushbuttons (integrated in the sliding carriage for saw and scoring blade)
Fence for angular cutting
Seaworthy packing
