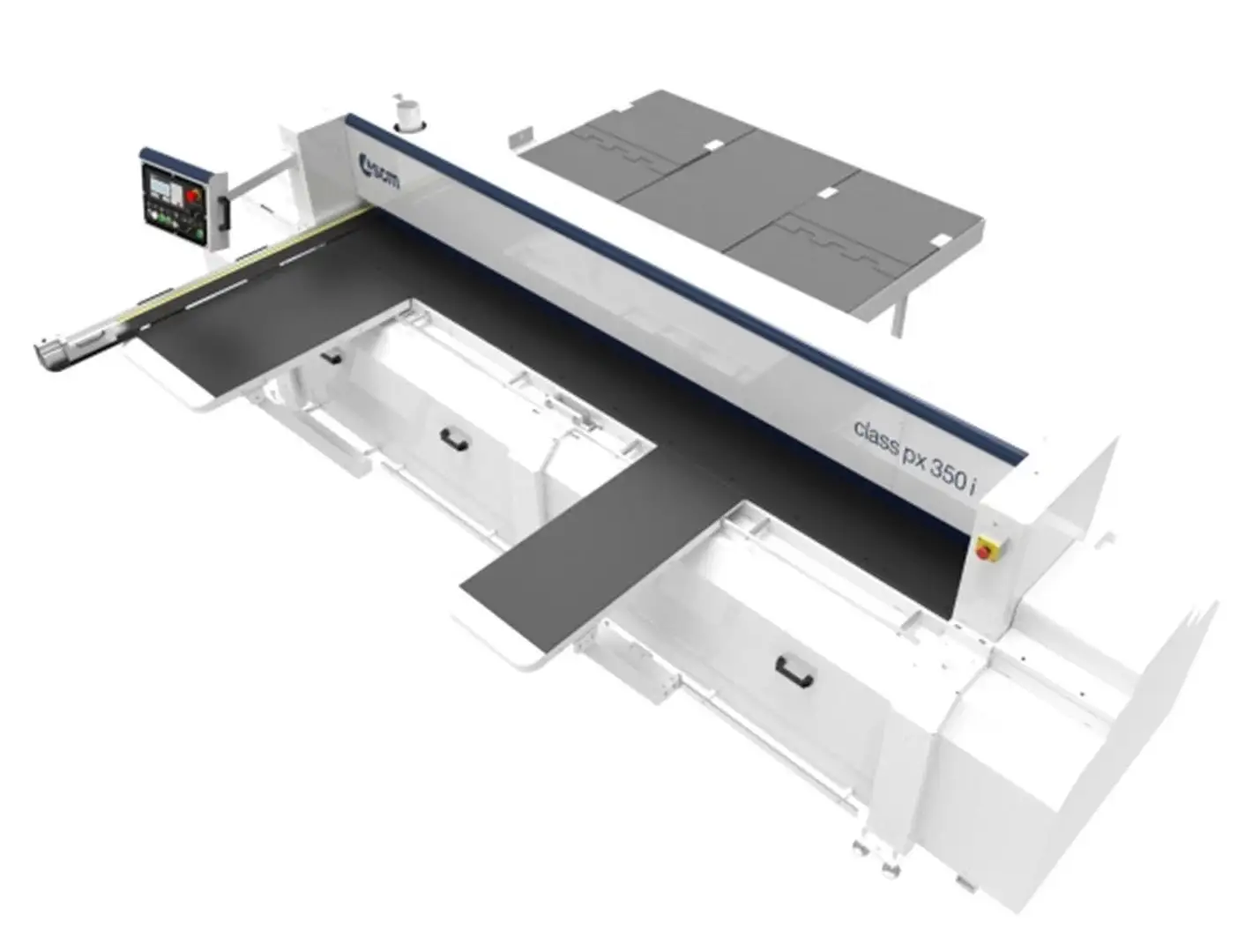

NEW SCM CLASS PX 350I

Horsepower: 9.4 hp
Voltage: 230 volts
Phase: 3-phase
Saw Type: Panel Saw
CNC: Yes
Max. Squaring Stroke: 3200 mm
Blade Tilting: 0 - 46o
Max. Saw Blade Diameter (Cutting): 350 mm
Max. Saw Blade Diameter (Engraving + Cutting): 300 mm
Max. Saw Blade Projection (D350) From Table at 90o / 45o: 105 / 72 mm
Max. Saw Blade Projection (D300) From Table at 90o / 45o: 80 / 50 mm
Blade Rotation Speed: 4000 rpm
Cutting Width On Rear Fence: 1300 mm
Exhaust Hoods Diameter [mm]: 120 (1) - 100 (2)
Overall Dimensions (L x W x H) [mm]:
At 3200 Squaring Stroke: 4459 x 3196 x 1368
Standard Equipment
Saw unit with engraving and cutting with tilting through high rigidity side sliding rests
40 m/min maximum saw blade carriage
Panel length detecting system for the cutting cycle optimization
Adjusting system for the engraving depth with numerical readout
Control positioned on the upper mobile control panel
"READY" electronic control - 2 standard axes with:
Motorised control of blades unit tilting
Motorised control of the rear stop position (position readout on magnetic band)
Mode: manual, semiautomatic and automatic with memory capacity up to 99 programs.
Additional functions: calculator and hour counter.
3rd axis available as option (blade lifting control)
2 fixed tables + 1 mobile table
Additional emergency pushbuttons and working cycle start positioned on the mobile table. Very useful when machining very large dimensioned work pieces that prevent an easy and safe access to the main machine control panel
Additional Features
Telescopic squaring fence with extension up to 3200 mm with digital readouts and installed on large fixed table for the panel support (600 mm x 1350 mm from cutting line), complete with:
2 stops equipped with independent electronic digital readouts with detecting system on magnetic band and LCD display
Roller for workpiece support of 1900 mm from the blade
Device for angular cutting with self-adjustment
Enlarged rear table with double motorised stop
stop positioning between 0 and 1300 mm
support table length 2000 mm
Seaworthy packing
