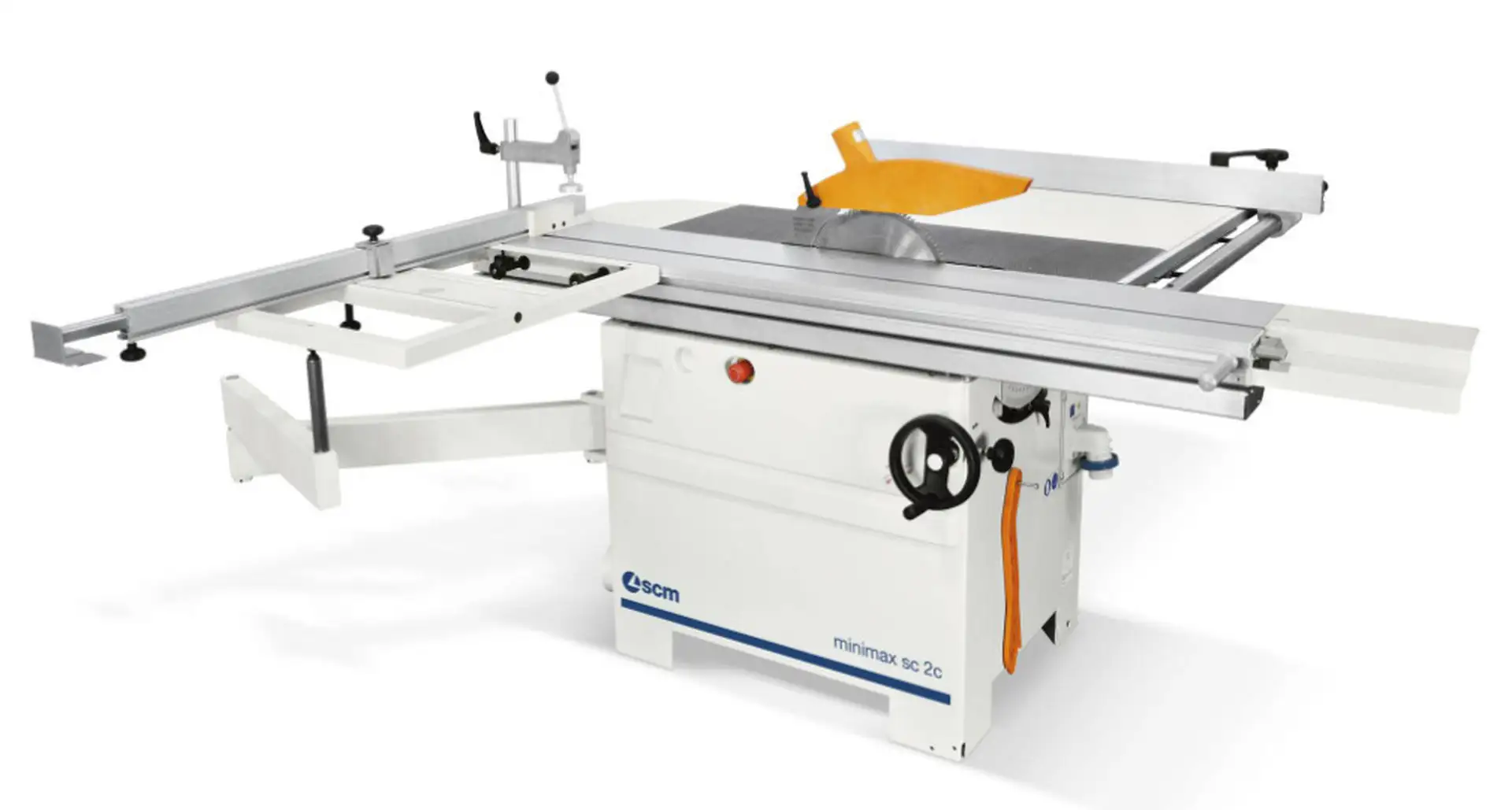

NEW SCM MINIMAX SC 2C

Horsepower: 3.4 hp
Table Size: 1020 x 325 mm
Blade Diameter: 315 mm
Voltage: 220 volts
Phase: Single-phase
Saw Type: Sliding Saw
CNC: No
Blades tilting: 90o to 45o
Max. saw blade projection from table at 90o/45o: 100/78 mm
Max. squaring stroke (standard): 1600 mm
Cutting width on parallel fence: 1270 mm
Exhaust outlet diameter: 120 mm
Standard Equipment
Extruded anodized aluminum sliding table (dimensions 270 x 124 x 1600 mm), sliding on high precision hardened steel guideways
Squaring frame complete with:
telescopic fence with 1 retractable stop
eccentric clamp
support
Dedicated saw parallel fence complete with:
"high rigidity" cast iron fence support
micrometric adjustment and cam-locking system
rectified steel round sliding bar, 45 mm diameter
Additional Features
Belt driven scoring unit complete with blade (Adjustment from the machine outside without need of tools)
Scoring blade technical features:
External diameter: 80 mm
Internal diameter: 20 mm
Z 12
Rotation speed: 7700 rpm
2 Squaring flip-over stops
Triple Wall
Delivery Ex Factory
