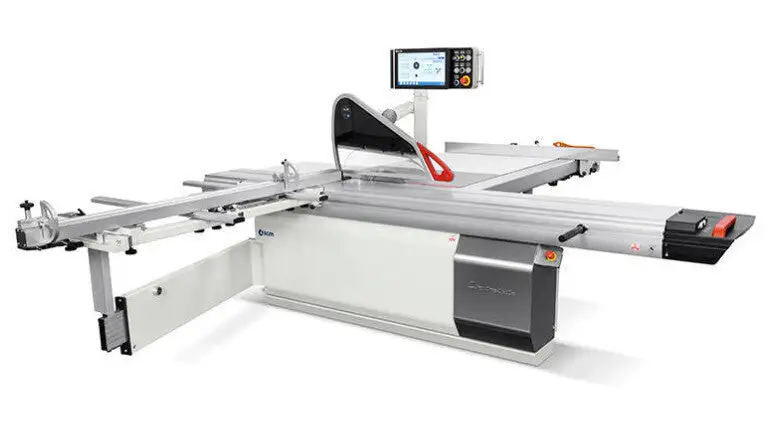

NEW SCM L'INVINCIBILE SI 3

Horsepower: 9.4 hp
Blade Diameter: 400 mm
Voltage: 600 volts
Phase: 3-phase
Saw Type: Sliding Saw
CNC: Yes
"DADO" Machining
Mechanical presetting to use a tool (not included) in place of the main blade.
203 mm / 8" max. diameter
30 mm internal diameter
20 mm maximum thickness
40 mm max. working depth
1" Saw Spindle for "DADO" Machining
In replacement of the 1-1/4" spindle supplied with the "DADO machining" option
Main Blade Diameter: 400 mm
Scoring Blade Diameter: 120 mm
Sliding Carriage: 3200 mm
Squaring Capacity with Carriage and Extended Stop: 3200 x 3200 mm
Blade Tilting: 45o
Max. Cutting Height at 90o: 140 mm
Max. Cutting Height at +45o: 97 mm
Rotating blade Speed: 3000-4000-5000 rpm
Scoring Unit Speed: 8500 rpm
Diameter of Exhaust Outlet:
At Base: 120 mm
At Overhead Saw Guard: 100 mm
Main Scoring Unit Motor Power: 1.3 kW (1.7 hp)
Cutting Width on Parallel Fence: 1500 mm
"Full Support & Wireless"
Mobile frame for angular cutting complete with Wireless function with:
manual movement and possibility of angle from +50o to -50o in respect of the perpendicular to the cutting axis, with micrometric adjustment. Angle detecting system on magnetic band and readout on LCD display, updating in real time of the squaring stops positions on LCD readout when varying the blade and/or cutting angle tilting.
Furthermore the frame is complete with:
Quick lock fence with simultaneous positioning and locking/unlocking on the frame
roller for workpiece support of 2400 mm from the blade
Additional Info
Aluminum alloy carriage sliding on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system
"eye-S 15" touch screen electronic control
Overhead mobile control panel
Squaring frame with Compex device angular cutting with automatic self-adjustment of the stop position. This exclusive system allows the functioning even when the optional fence for complementary cuts is applied. It is complete with 2400 mm extensible roller for blade support.
Motor start/stop pushbuttons integrated in the sliding carriage
Eccentric clamp
Seaworthy Packing
Machine language: French
Machine language: English
