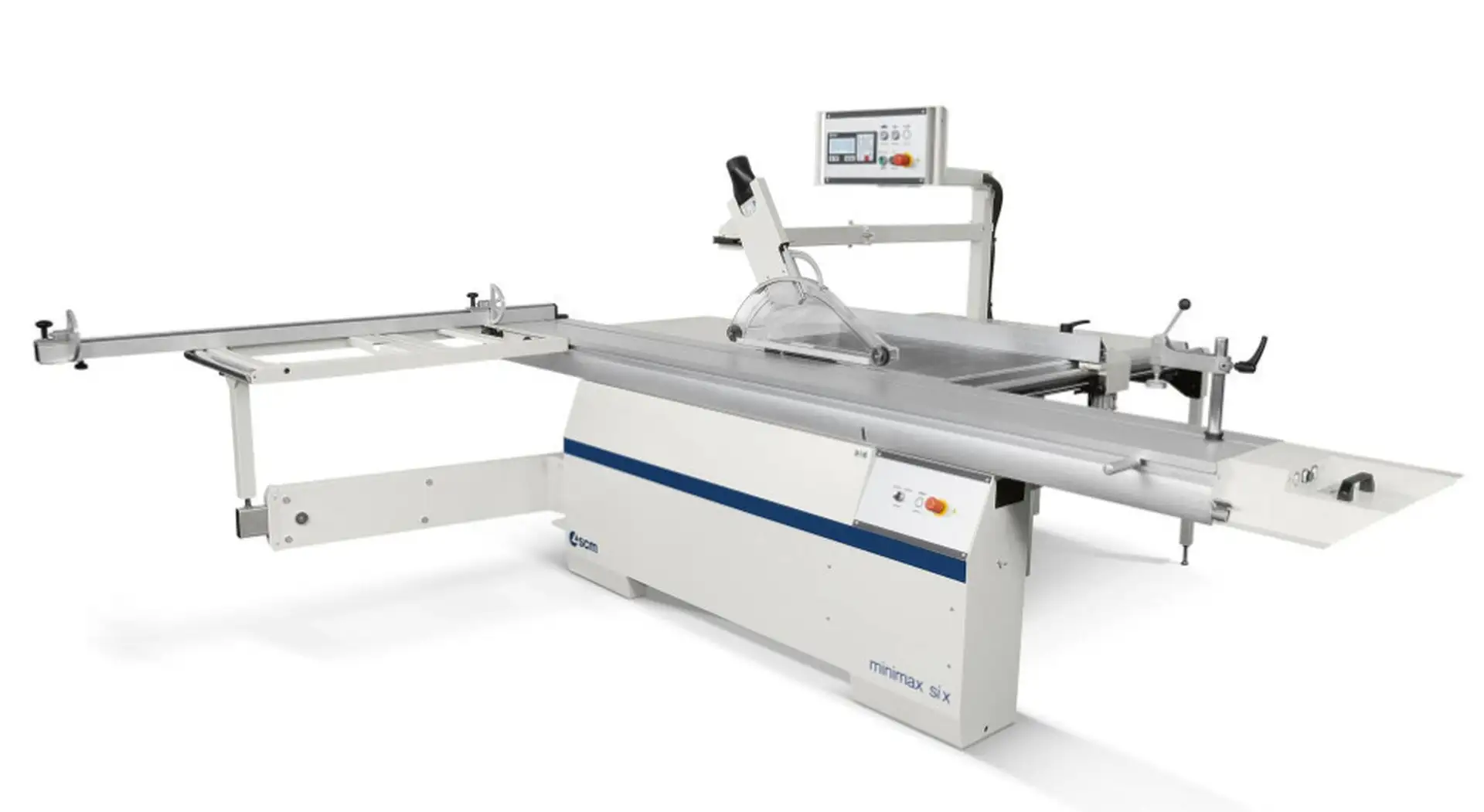

NEW SCM MINIMAX SI X

Horsepower: 11 hp
Table Size: 1000 x 685 mm
Voltage: 220 volts
Phase: 3-phase
Saw Type: Sliding Saw
CNC: Yes
Blades tilting: -46o to +46o
Max. saw blade diameter with scoring blade installed: 400 mm
Max. saw blade projection from table at 90o/45o: 136/97/60 mm
Scoring blade diameter: 160 mm
Max. squaring stroke: 3200 mm
Cutting width on parallel fence: 1270 mm
Scorer motor: 0.9 kW (1.2 hp) 60 Hz
Exhaust outlets diameter: 120 - 80 mm
Standard Equipment
Squaring frame (dimensions 1200 x 650 mm) with:
telescopic fence with 2 flip-over stops and metric rule tilted towards the operator
eccentric clamp
swinging arm support
idle roller to facilitate the panel loading/unloading
Dedicated saw parallel fence with:
"high rigidity" cast iron fence support
micrometric adjustment and cam-locking system
rectified steel round sliding bar, 45 mm diameter
"Ready 3 UP" Version electronic control, 3 axes control
Control of blades unit lifting/tilting
Tools data setting with automatic height adjustment with respect to the tilting
Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs
Additional functions: calculator and hour counter
Powered parallel fence with electronic programmer
position readout on encoder
adjustment by means of recirculating ball screws
continuously adjustments by means of pushbuttons or automatic positioning
possibility of incremental positioning
possibility of fence exclusion
Additional Features
Angular cutting device with flip-over stops, equipped with:
telescopic fence with two flip-over stops
pre-set for angle rapid selection
Squaring fence with no. 2 LCD readouts for stops position
Third squaring stop with LCD display for the position readout
Additional table on the sliding table
Crate
Triple Wall box
Delivery Ex Factory
