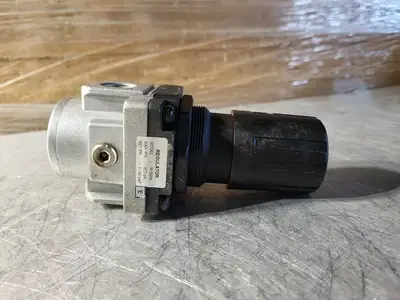

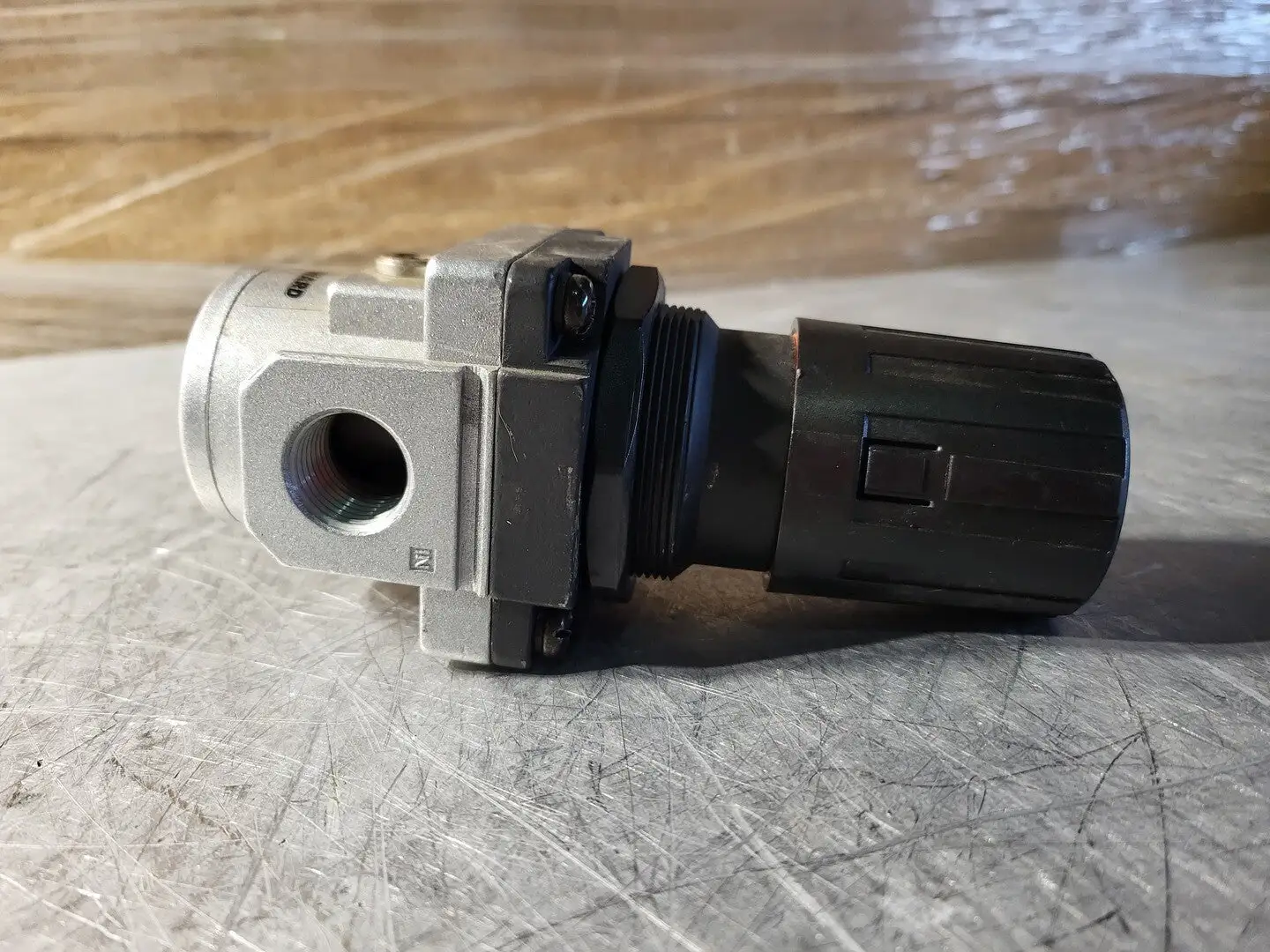

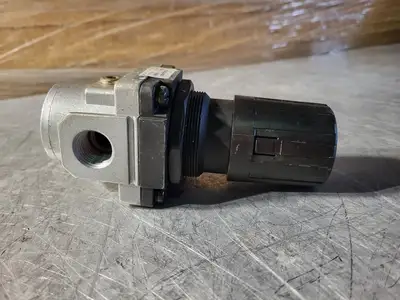

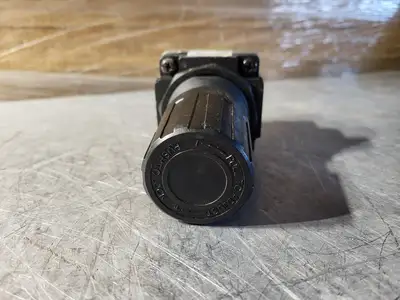

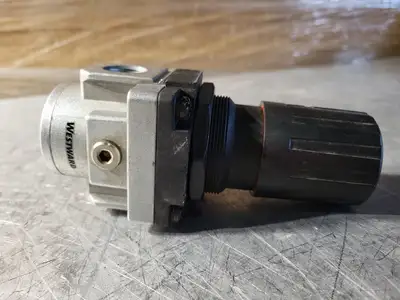

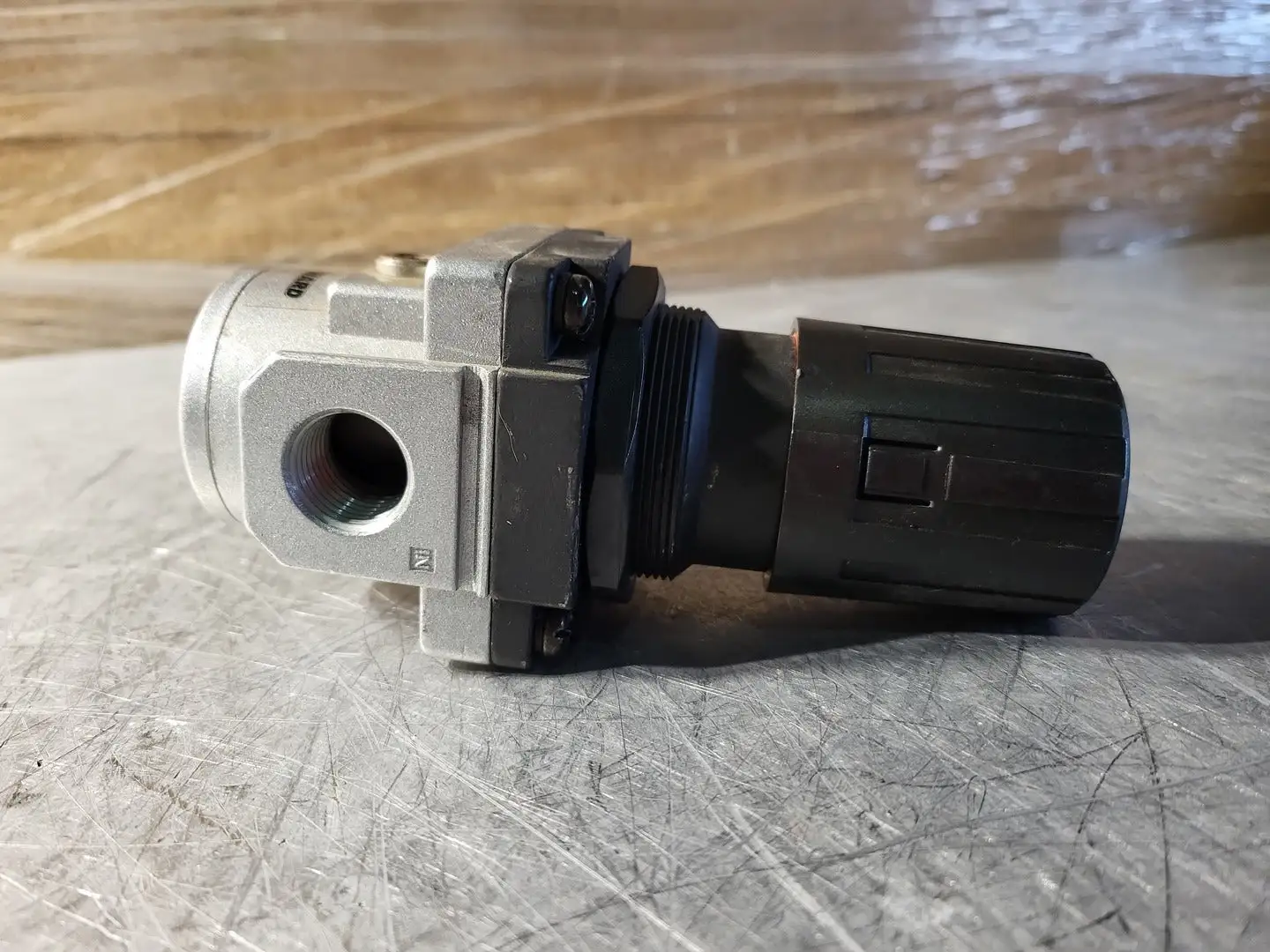

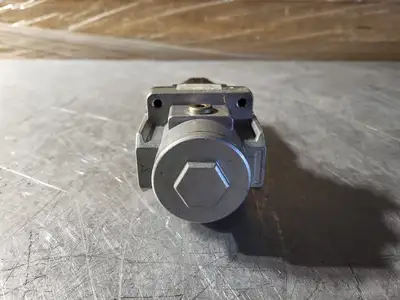

USED WESTWARD R15934

Item: Compressed Air Regulator
Air Inlet Size: 1/2 in
Air Inlet Type: NPT
Maximum Flow Rate: 140 cfm
Maximum Operating Pressure: 220 psi
Maximum Operating Temperature: 140 Degrees F
Pressure Gauge Included: No
Adjustment Mechanism: Knob
Overall Width: 2 3/4 in
Adjustment Location: Top
System Location: Air Line
Series: Standard Duty
Adjustment Mechanism Material: Acetal
Air Flow Direction: Left to Right
Air Inlet Gender: Female
Air Outlet Gender: Female
Air Outlet Size: 1/2 in
Air Outlet Type: NPT
Body Material: Aluminum
Duty Rating: Standard Duty
For Fluid Type: Compressed Air
For Substance Type: Air
ISO Class: 6
Includes: (1) Air Regulator
Maximum Flow @ 100 psi: 140 cfm
Maximum Regulated Pressure: 145 psi
Minimum Operating Temperature: 32 Degrees F
Minimum Regulated Pressure: 7 psi
Modular Connection
Number of Air Inlets: 1
Number of Air Outlets: 1
Overall Depth: 2 3/4 in
Overall Height: 6 1/2 in
Pressure Drop: 17 psi
Pressure Gauge Port Gender: Female
Pressure Gauge Port Size: 1/8 in
Pressure Gauge Port Type: NPT
Regulator Type: Relieving
Seal Material: Nitrile
Sight Gauge Included: No
Standards: RoHS Compliance
