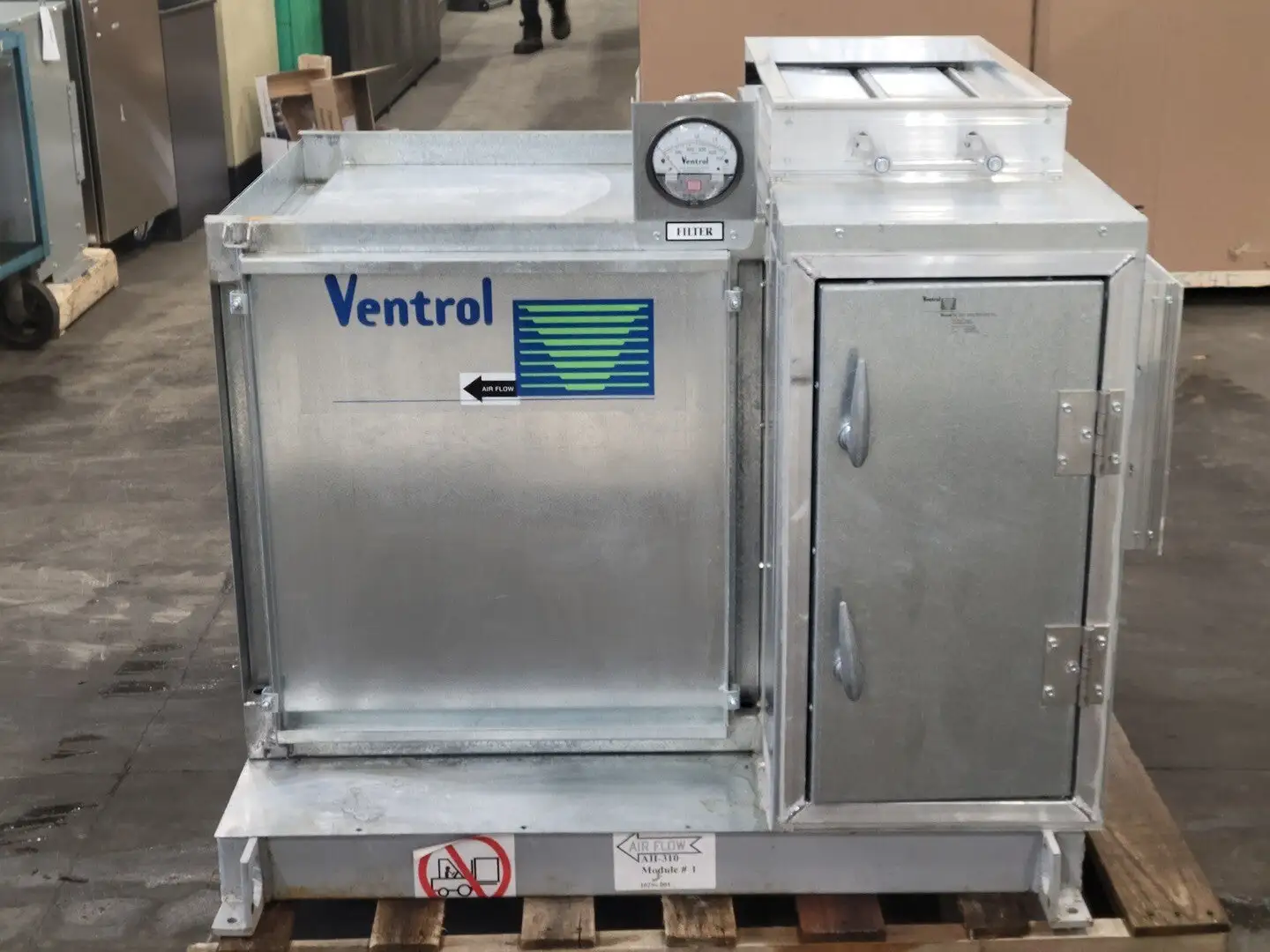

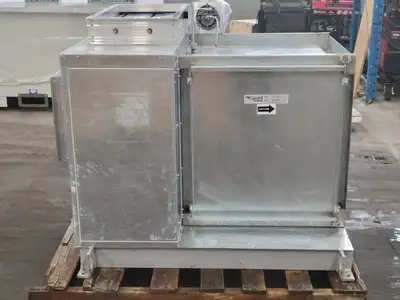

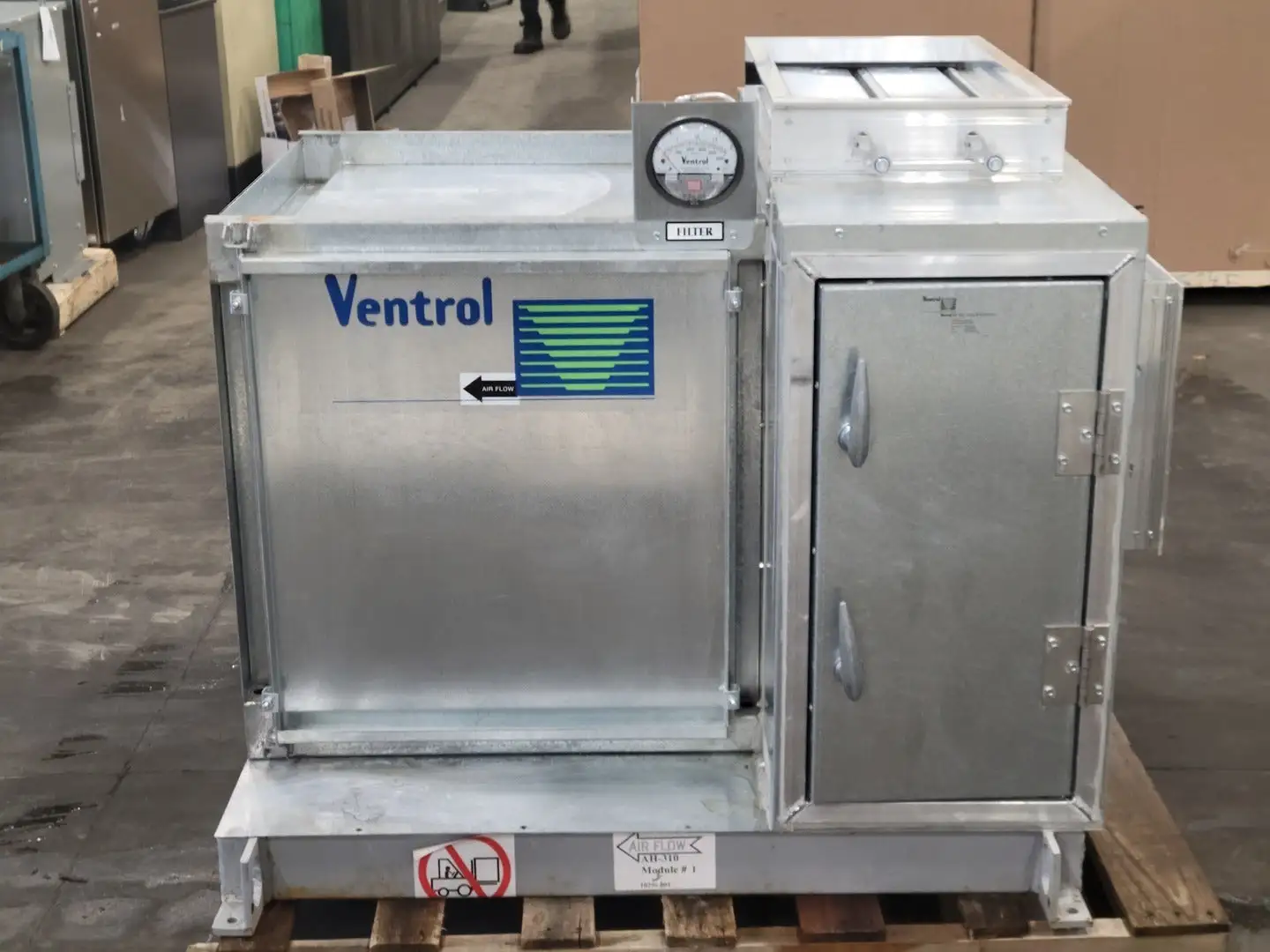

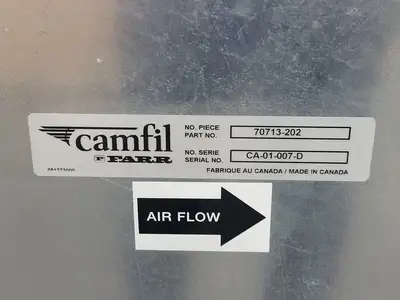

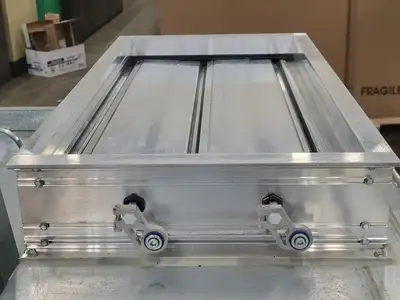

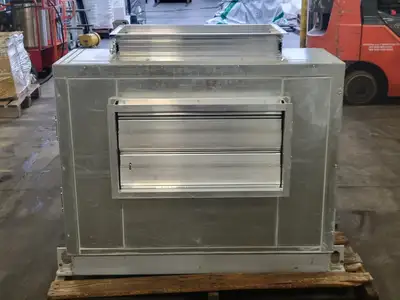

USED CAMFIL 70713-202

Magna Pack
Width: 26.38"
Height: 28.50"
Airflow Capacity @ 500 fpm: 2,000 cfm

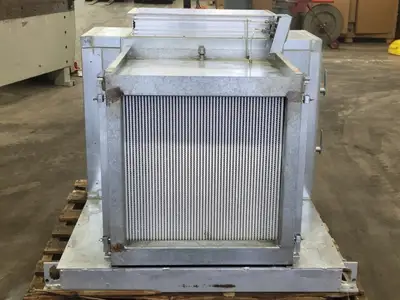

XH Absolute Filter
Part Number: 855211592
Model: 12XH-24Z24Z12
Efficiency: 99.99% @ 0.3 micron IEST Type C
Nominal Size: 24" x 24" x 11.50"
Airflow @ 1.35" w.g.: 2000 cfm
Media Area: 301 sq. ft.

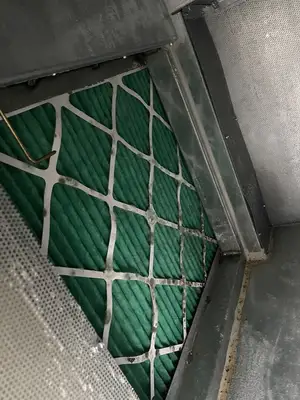

30/30 Pleated Filter
Part Number: 049880-005
Performance: MERV 8
Nominal Depth: 2"
Nominal Size: 24" x 24"
Actual Size: 1.75" Depth x 23.38" x 23.38"
Initial Resistance: 0.31 in. w.g.
Airflow Capacity: 2000 cfm
Total Medial Area: 17.3 sq. ft.
Pleats per Linear Foot: 15 pleats

PDF MagnaPack Specs
PDF XH Absolute Specs
PDF 30/30 Pleated Specs
