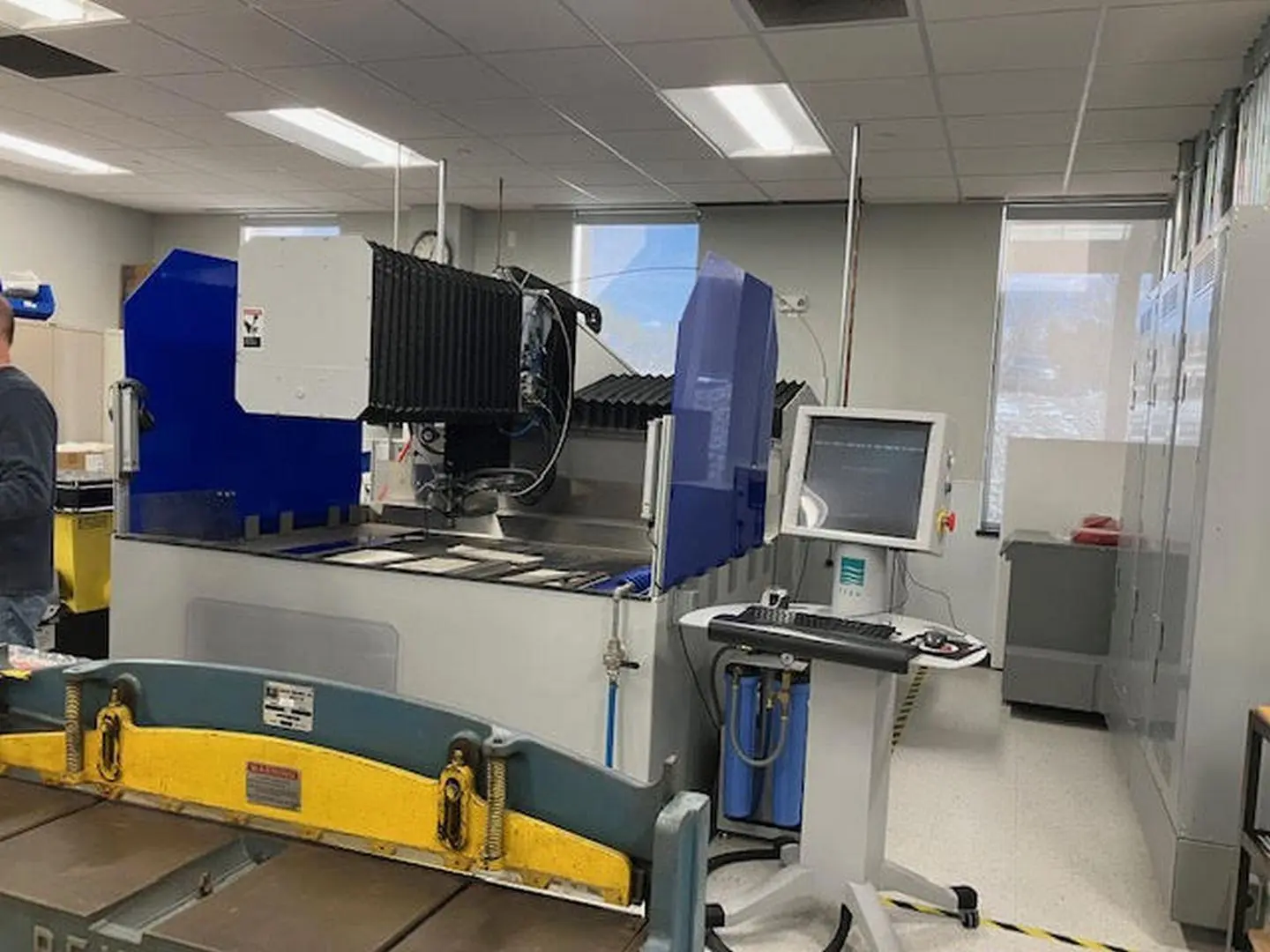

USED 2009 FLOW MACH 3 1313B

2009 Flow Mach 3 1313b

Flow Mach 3 1313b CNC Waterjet Cutting System
New: 2009

Specifications:
Cutting Area:
  X-Axis:                                 4’
  Y-Axis:                                 4’
  Z-Axis:                                6”
Pump Motor:                                   30 HP
Pump Pressure:                               55,000 PSI
Rapid Speed:                                     500 IPM
Linear Positioning Accuracy:       +/- 0.003”
X/Y Repeatability:                            +/- 0.002”
Power Requirement:                      460-480/3/60

Equipped With:
Flowmaster PC-Based Control
30 HP Hyplex Mechanical Pump
Weir Tank for Settling Out Solids
Servo Driven Z-Axis (7")
100 Lb Abrasive Hopper
 Low Hours
5-Axis Taper Compensating Head
All AC Servo Driven Ballscrews
Virtually Eliminates Cutting Noise (3" Level Adjustment)
Imports Industry Standard DXF/DWG/IGS/CADKEY/CDL/HPL Files
Paser ECL Cutting Head
