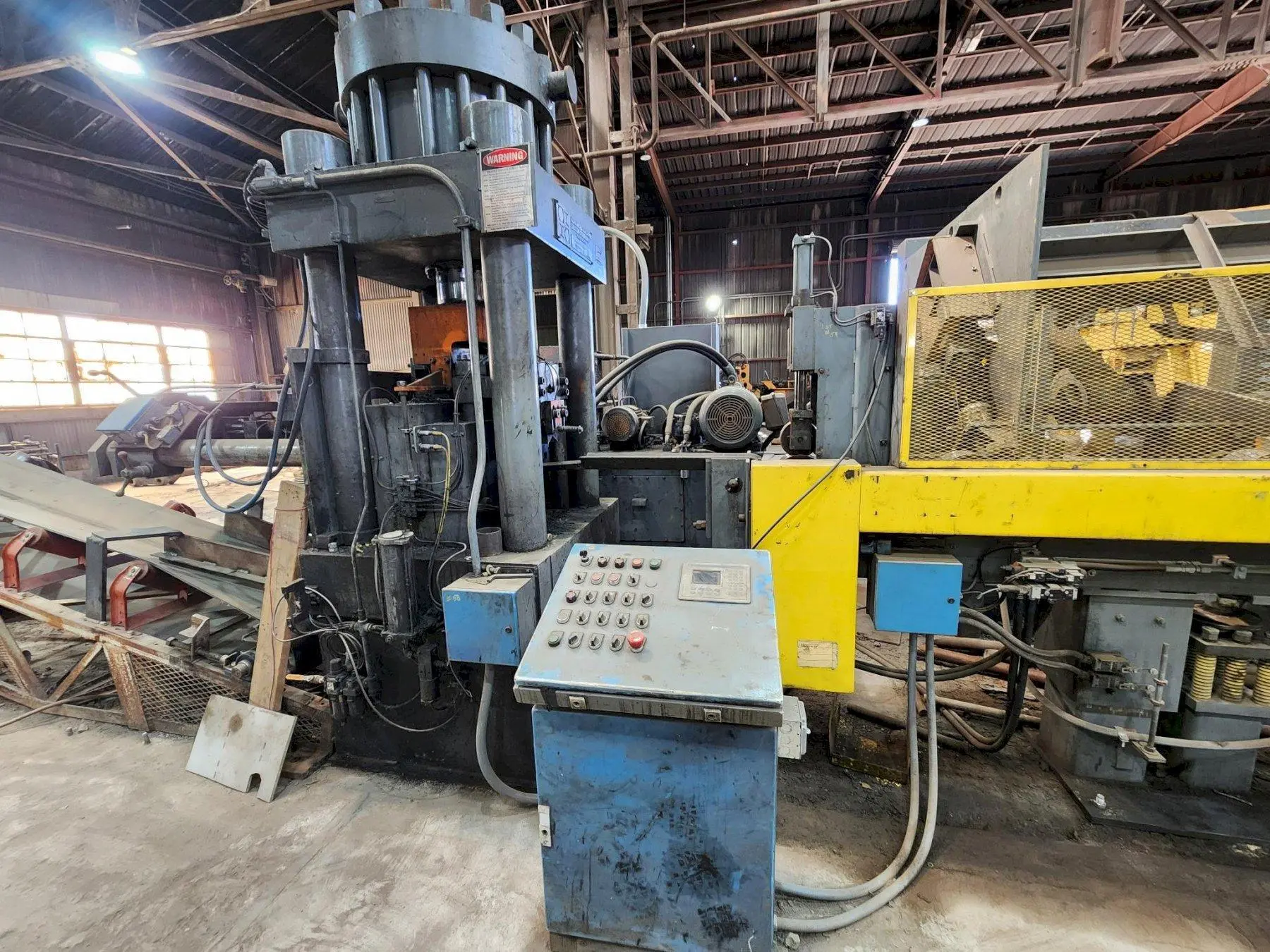

5" AMD MODEL #530-2230 AUTOMATIC HYDRAULIC BAR & BILLET SHEAR WITH 20' AUTO FEED: YOBRO #24104

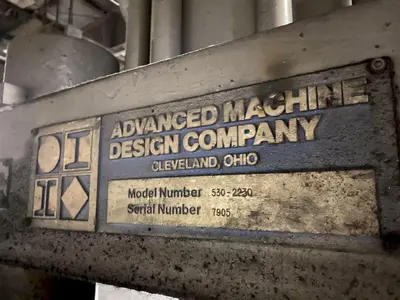

SERIAL ...................... 7905
MODEL ....................... 530-2230
TONNAGE CAPACITY ............ 530 TON
SHEARING CAPACITY (ROUND) ... 5-1/8"
SHEARING CAPACITY (SQUARE) .. 4-1/2"
AJUSTABLE LENGTH GUAGE ...... YES, POWERED
MAXIMUM LENGTH OF CUT ....... 60"
PASSLINE SHEARING HEIGHT .... 39"
BILLET DISCHARGE SHOOT ...... YES
CONTROL PEDISTAL STATION .... YES
SHEAR DIMENSIONS ............ 48" X 62" X 104" HIGH
SHEAR WEIGHT ................ 21,000 LBS

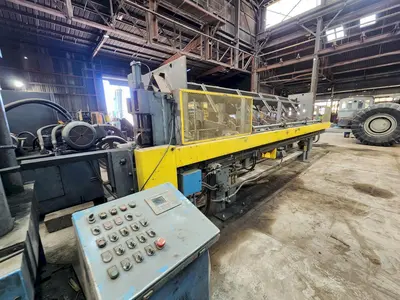

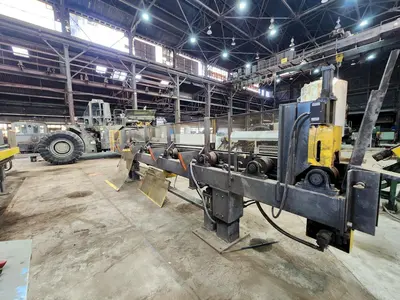

BAR FEED SYSTEM:
BAR FEED LENGTH CAPACITY .... 20'L
POWERED GRIPPER INFEED ...... YES
AUTO-FEED ................... YES
UNSCRAMBLER SYSTEM .......... YES

HYDRAULIC SYSTEM:
SELF CONTAINED .............. YES
MOTOR ....................... 75 HP

Brand
ADVANCED MACHINE
Type
Shears, Bar & Billet
Stock No.
24104
