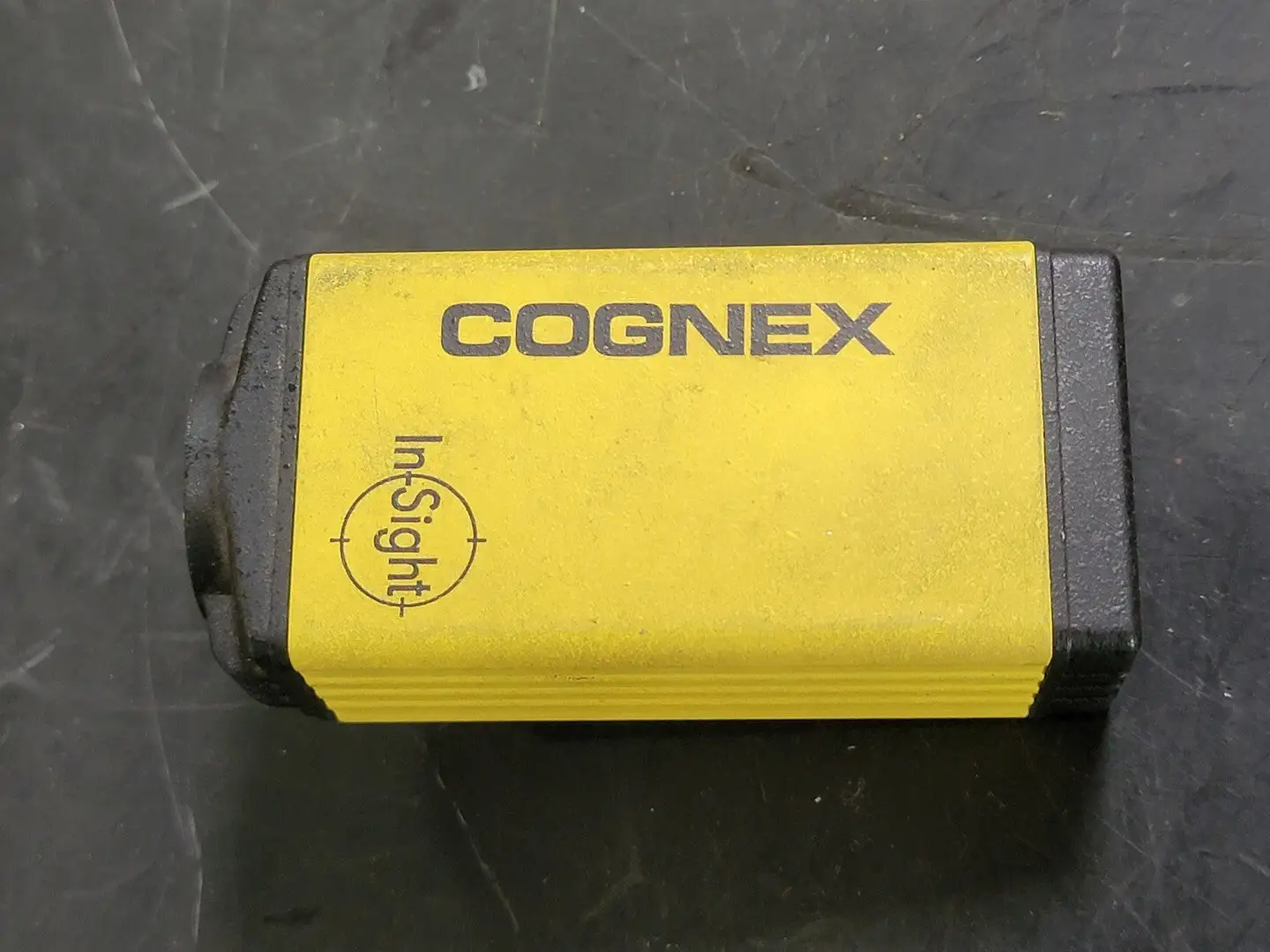

USED COGNEX 800-5715-1

Sensor Type: Digital CCD
Resolution: Up to 2448 x 2048 (model dependent)
Frame Rate: Up to 16 fps (approximate, depends on resolution and model)
Shutter Type: Electronic shutter (approx. 14 us to 1000 ms range)
Lens Mount: Standard C-Mount (lens not included)
Image Processing Memory: 256 MB SDRAM
Program Memory: 128 MB flash
Input/Output: 1 opto-isolated trigger input, additional I/O via modules
Communication: Ethernet, RS-232 (via I/O module or cable)
Power: 24 VDC, approx. 6.5 to 7.5 W (depending on configuration)
Housing: Rugged enclosure
Operating Temperature: 0C to 40C (32F to 104F)
Humidity: <95% non-condensing
Certifications: CE, FCC, RoHS compliant
Software Support: Cognex In-Sight Vision Suite (Explorer, EasyBuilder, Spreadsheet)
