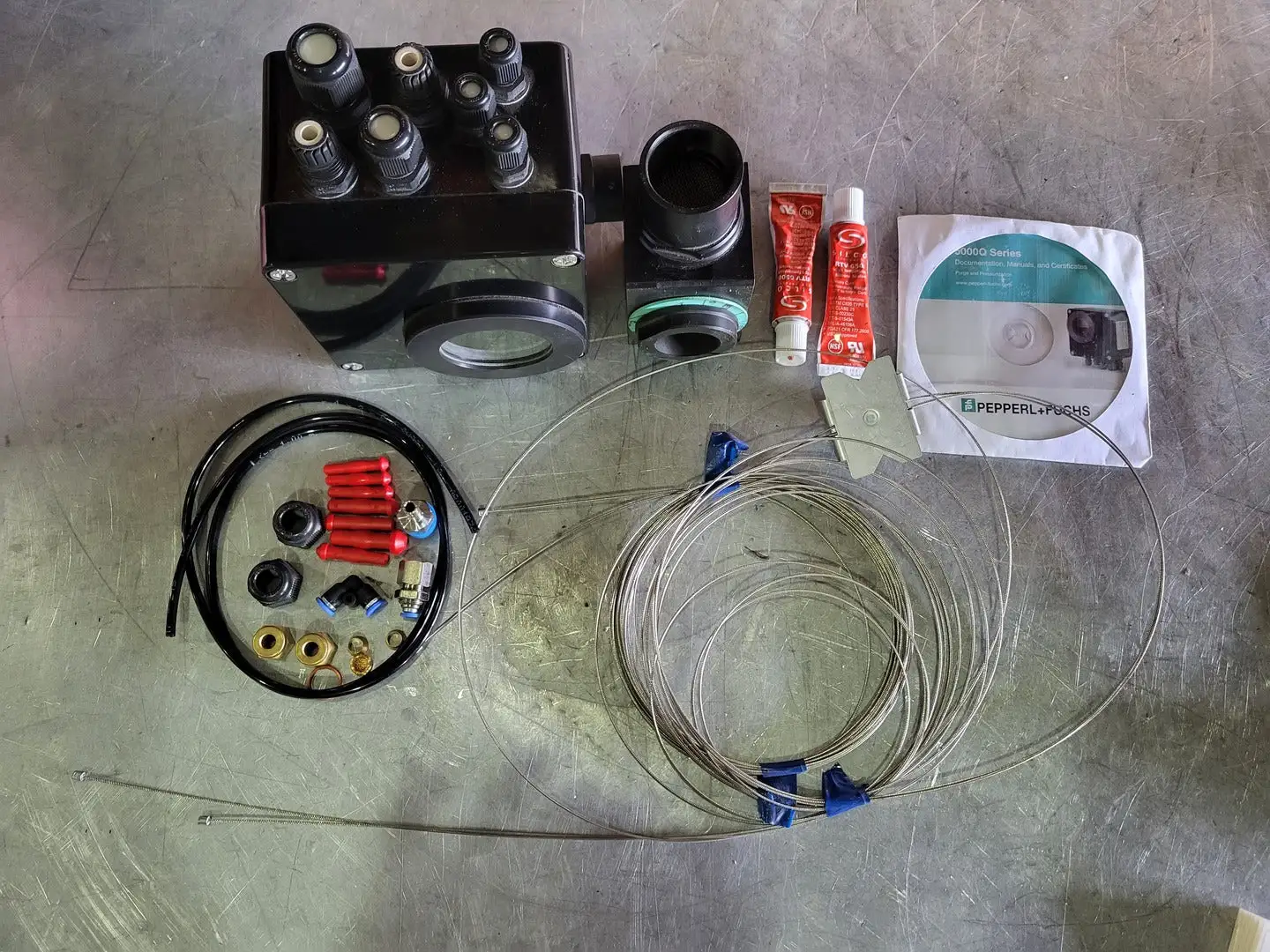

5000Q Internal Adaptor Kit 236400

Part Number: 236400

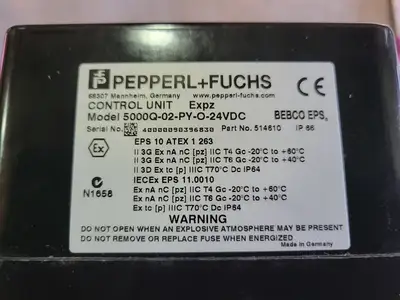

Control Unit
Function: The 5000Q series EX pz purge and pressurization system allows general purpose equipment to be mounted in enclosures and operate safely in Zone 2 or Zone 22 hazardous areas.
Model: 5000Q-02-PY-O-24VDC
Housing Material: Polyester
Mounting Configuration: outside enclosure
Voltage Requirement: 24 VDC
Vent Unit
Function: The EPV-5000Q vent allows the purge gas to exit the enclosure but provides a seal when the enclosure is pressurized and operating. The vent also has a spark arrestor, a requirement for hazardous areas.
Model: EPV-5000Q-PY-4 Expz
Pneumatic Filter
Brand: Parker Watts
Model: F504-02AH
Ports: 1/4"
Max. Pressure: 10 bar (150 psi)
Max. Temp.: 52C (125F)
Additional

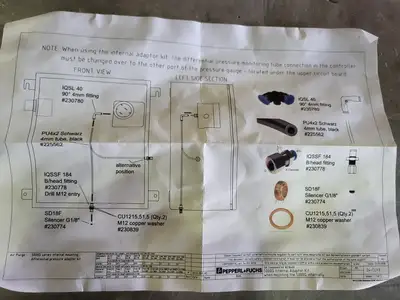

CD for documentation, manuals and certificates

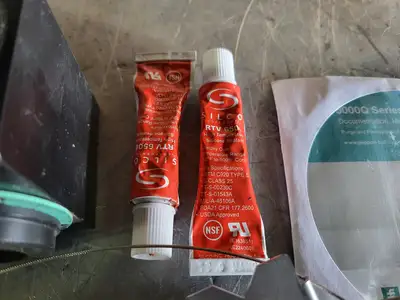

High temperature silicone sealant

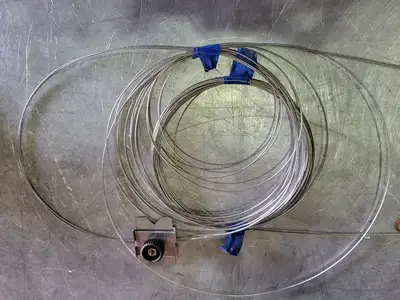

cables
