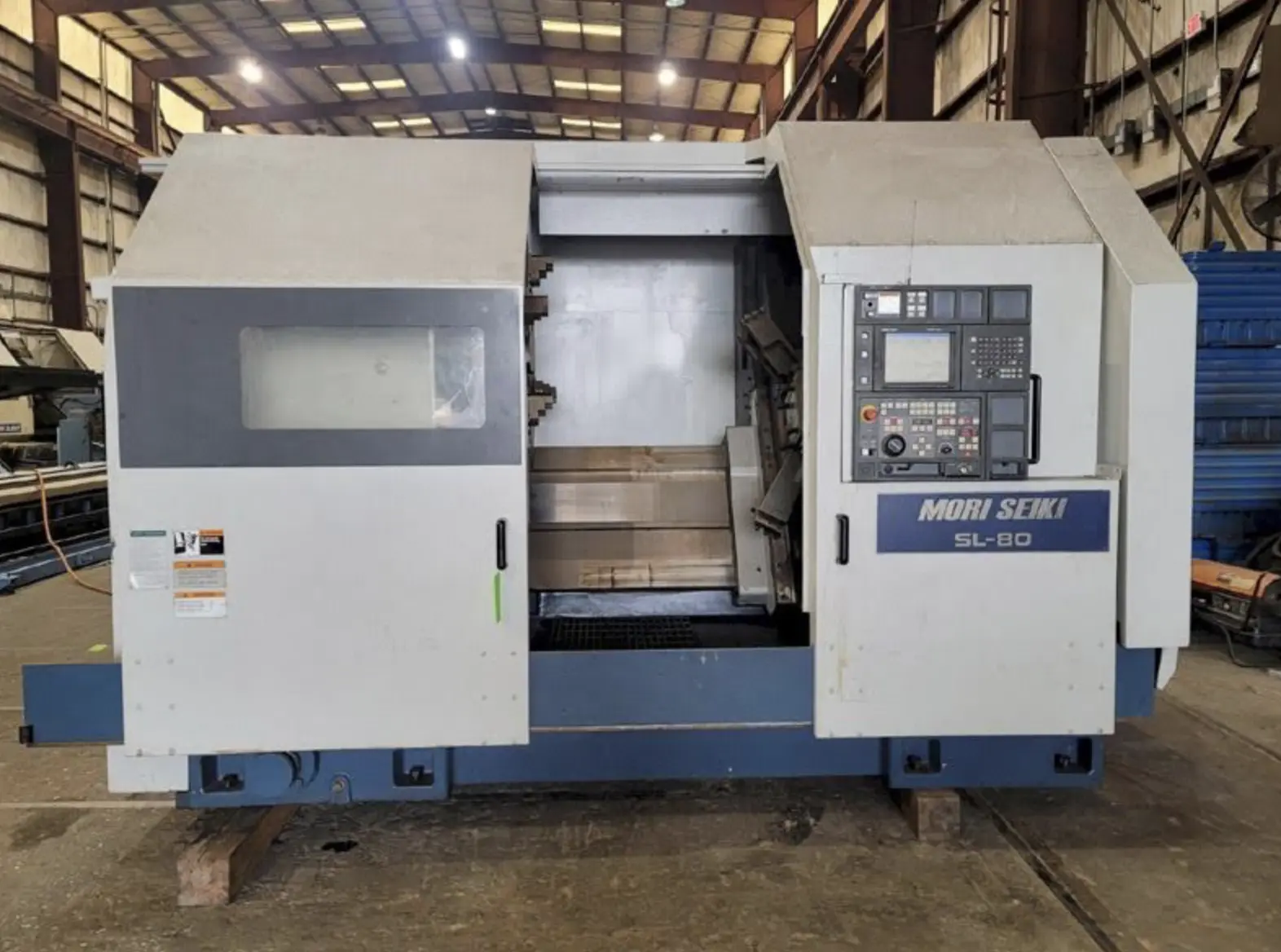

Used CNC Lathe. Swing: 51.2", Machining Length: 9.8", Chuck Size: 39.4", Bar Capacity: 8.5", Power: 50.0, Max RPM: 143.0. Ideal for heavy-duty turning. No tailstock, live tooling, or sub spindle.
| Swing | 51.8" | 1,315.7 mm |
| Machining Length | 9.8" | 248.92 mm |
| Chuck Size | 39.4" | 1,000.8 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 550 RPM | 550 RPM |
| Turning Dia | 43" | 1,092.2 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 127" x 38" x 104" High | 127" x 38" x 104" High |
| Weight | 35,200 Lbs | 35,200 Lbs |
Swing Over Bed: 51.8"
Maximum Turning Diameter: 43"
Spindle Speeds: 550 RPM
Spindle Motor: 60 HP
Spindle Bore: 8.5"
Spindle Nose: A2-15
X Axis Travel: 16.7"
Z Axis Travel: 43.3"
Rapid Traverse (X / Z): 196 / 315 IPM
Fanuc MSC501 CNC Control
39" 4-Jaw Chuck
6 Position Tool Turret
Chip Conveyor
