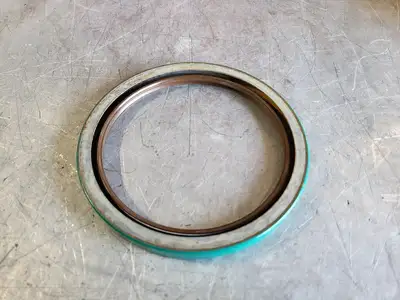

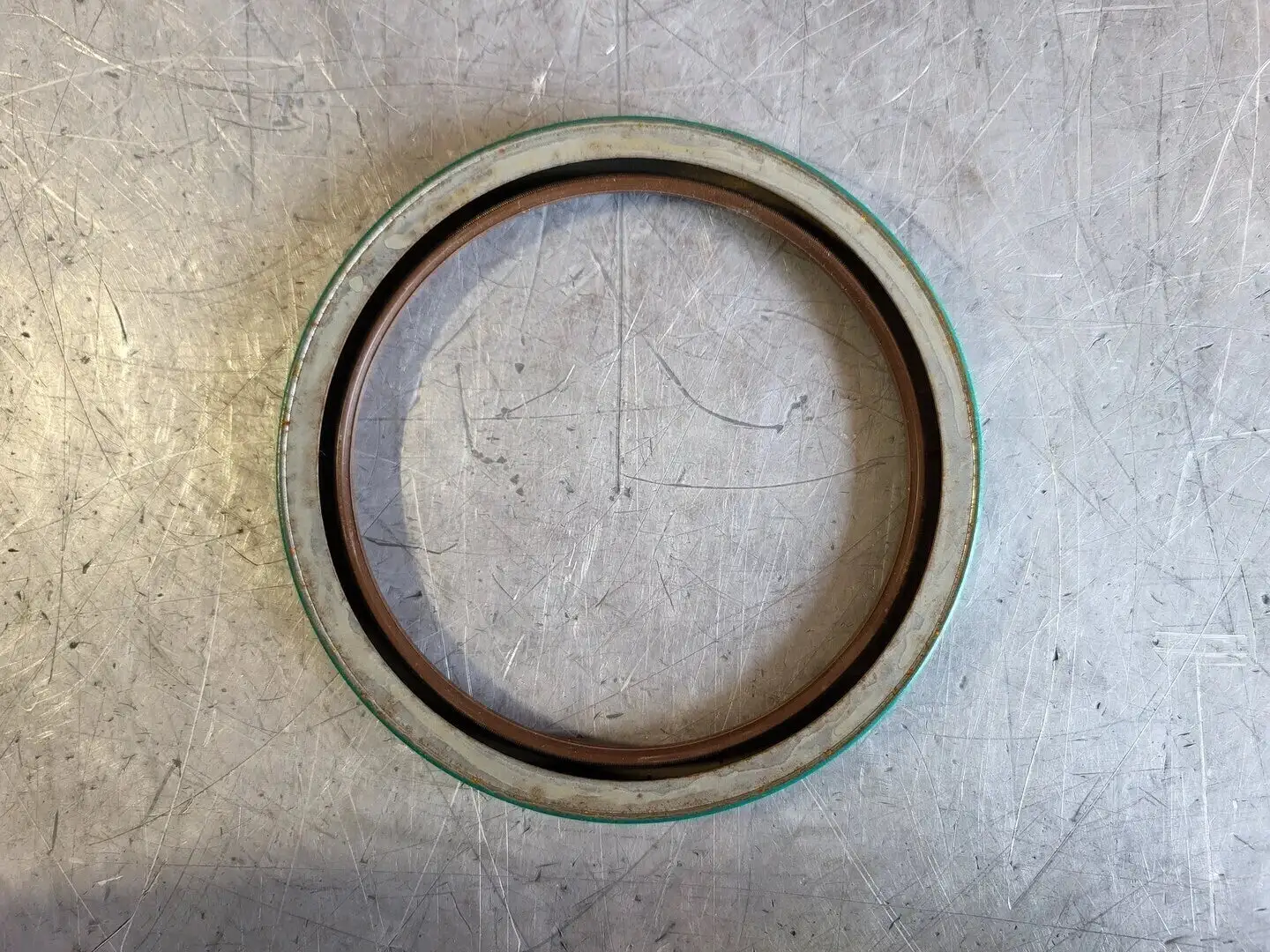

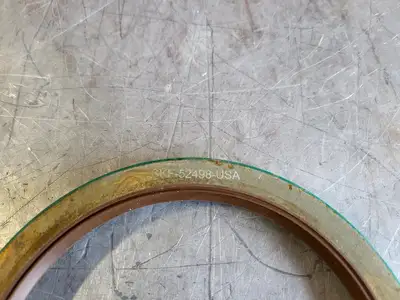

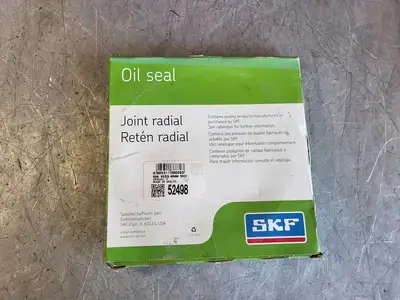

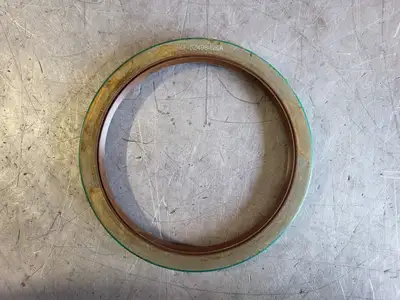

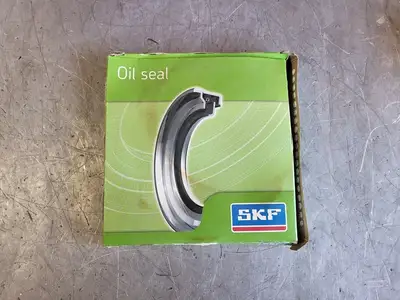

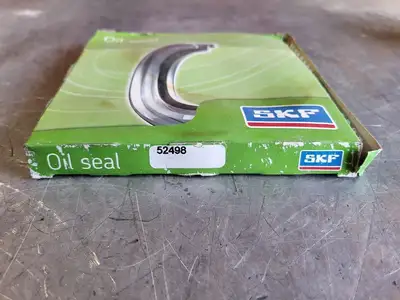

NEW SKF 52498

OVERVIEW
SKF Wave lip seal has a metal OD and delivers industry's highest pump rate
Sinusoidal motion of this seal generates up to 30% less heat and 20% less friction
Easy installation and a firm and accurate fit in the housing bore
SPECIFICATIONS
Case Design: Metal case, inner case
Casing: Steel
Compatible V-Rings: 401300;401301;401304;401305
Compatible Wear Sleeves: 99525
Construction Description: Oil seal, SKF WAVE lip
Design Type: CRWHA1
Installation Method: Housing press fit
Lip Material: Fluoro Rubber (FKM)
Lip Type: Wave Lip
Lubricant Type: Oil or Grease
Number of Lips: 2
Operating Temperature Range: -5 to 390 °F
Outside Diameter: 6.3750 in - 6-3/8 in
Overall Width: 0.5000 in - 1/2 in
Pressure Tolerance: 10 psi
Seal Type: Rotary shaft seal/Radial shaft seal, Rotary shaft seal/Radial shaft seal
Shaft Diameter: 5.2500 in - 5-1/4 in
Solid / Split: Solid
Spring Material: Carbon Steel
Spring Type: Garter Spring
Typical Application: Gearboxes, speed reducers, transmissions, motors, pumps, wheel ends, rollers
