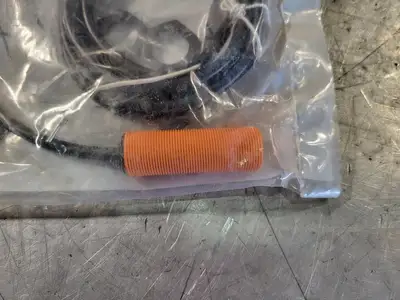

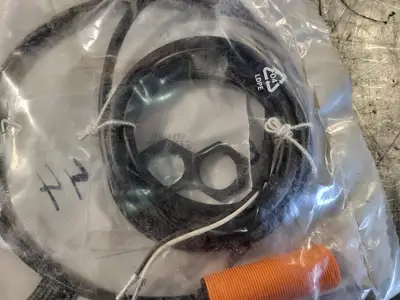

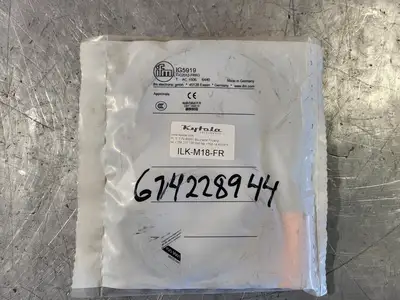

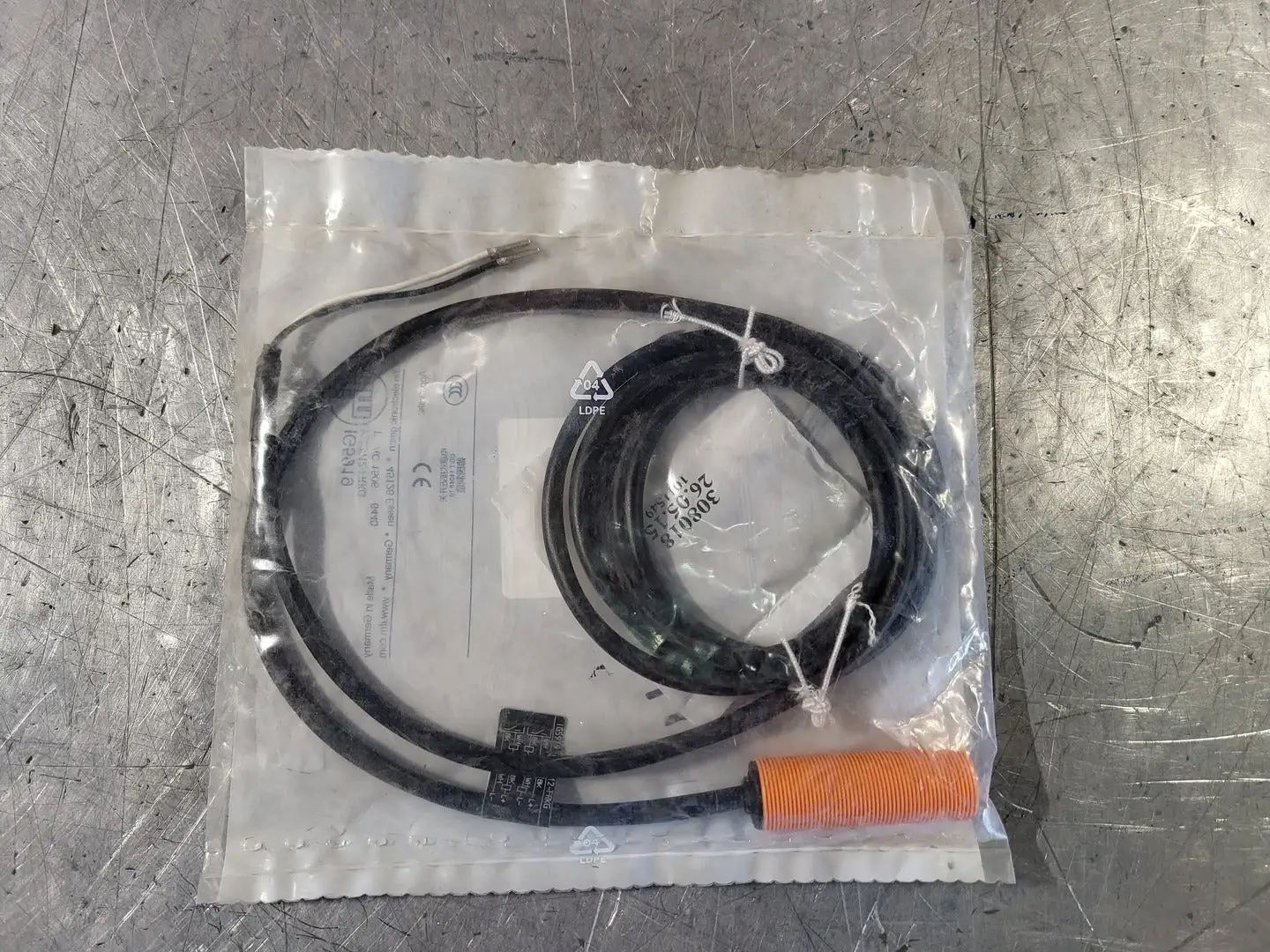

NEW KYTOLA INSTRUMENTS ILK-M18-FR

Electrical Design: DC PNP/NPN
Output: normally open / closed programmable
Size: M18
Operating Voltage (V): 10-55 DC
Current Rating (mA): 400
Minimum Load Current (mA): 4
Voltage Drop (V): <4.7
Leakage Current (mA): <0.5
Real Sensing Range (mm): 12+/-10%
Operating Distance (mm): 0-9.7
Switch Point Drift (% / Sr): -10 to +10
Hysteresis (% / Sr): 3 - 15
Switching Frequency: (Hz): 100
Correction Factors: mild steel = 1/ stainless steel approx. 0.7/ brass approx. 0.5/ Al approx. 0.4/ Cu approx. 0.3
Function Display Switching status LED: Red
Operating Temperature (deg. C): -25 to 70
Protection: IP 67
EMC: EN 60947 -5-2; EN 55011 class B
Housing Material: PBTP
Connection: PUR cable/ 2m; 2 x 0.5 mm2
Used For: Variable Area Flow Meter
