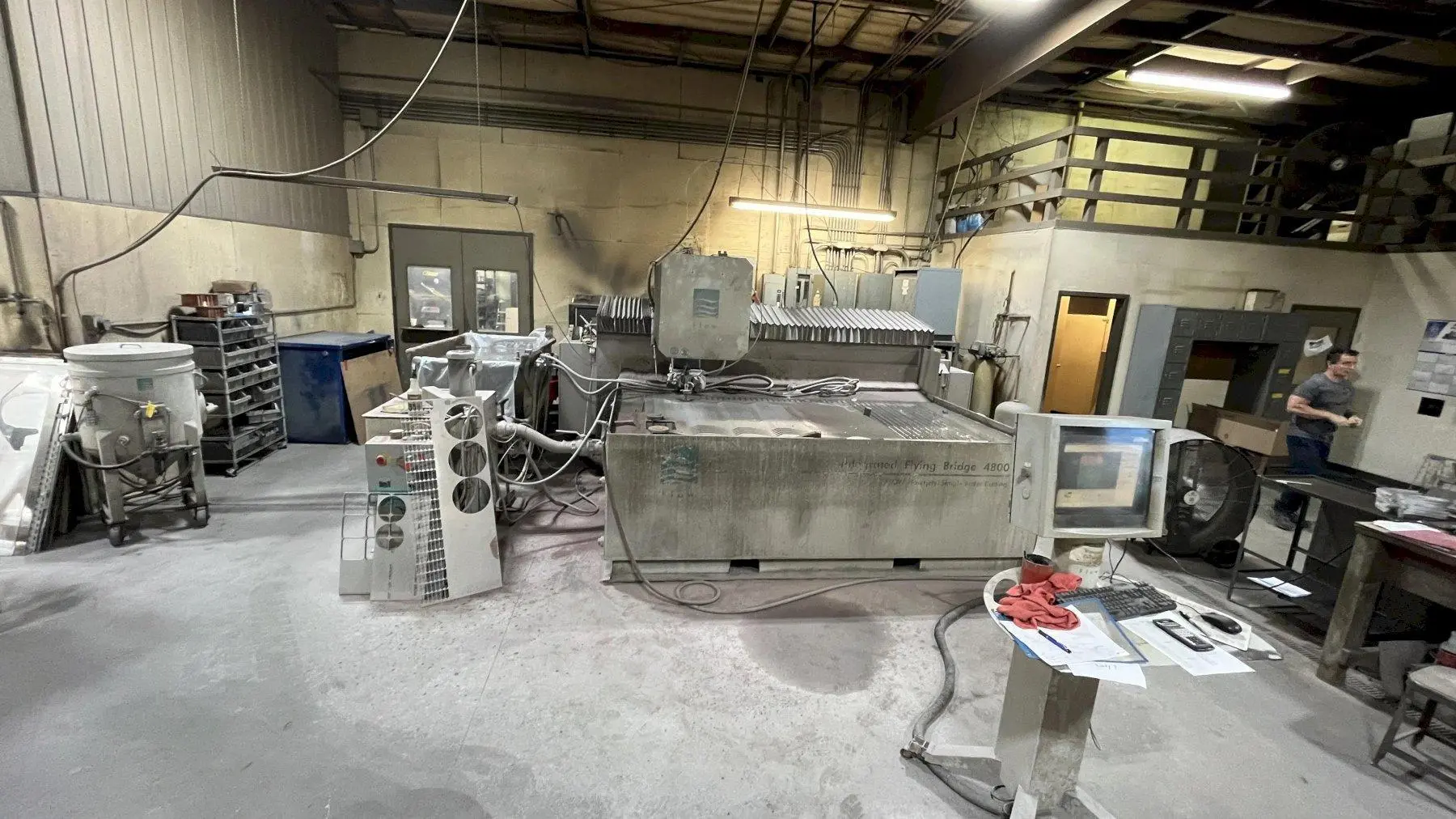

Flow IFB 4800 Waterjet Cutting System - New 2004
| Pump Output | 60,000 PSI | 4,136.8 bar |
| X-Axis | 48" | 1,219.2 mm |
| Y-Axis | 96" | 2,438.4 mm |
| Z-Axis | 9" | 228.6 mm |
| Table Size-W | 48" | 1,219.2 mm |
| Table Size-L | 96" | 2,438.4 mm |
| Power | 50 hp | 37.3 kW |
Flow IFB 4800 4x8 Dynamic CNC Waterjet Cutting System
New: 2004 S/N: 313394
Specifications:
Table Width: 4'
Table Length: 8'
Travels: 4' x 8' x 9"
Control: Flowmaster
Pump: 50 HP
Max Cutting Pressure: 60,000 PSI
Power Requirement: 460-480/3/60
Speed Range: 500 IPM
Accuracy: +/- 0.0015"
Equipped With:
600lbs Abrasive Bulk Tank with Low/Out Sensor Tied into Controller
Dynamic Cutting Head for Taper Compensation
Waterveyour Garnet Remove System
FlowCUT Machine Interface with SmartStream Technology
FlowNEST - Optimizes Material Yield With Full Geometric Nesting
Flowpath CAD/CAM System
Hardened Ball Screw Linear Motion System
Roll Around Control For Easy Operation
Rigid Open Gantry Design
Simply Choose Material And Thickness And Software Does The Rest
Allows For Off-Line Time Studies And Creates Quotations
Built-in CAD Functions and Automatic Tool Path Generation
Easy To Load Catcher Tank With 3 Open Sides
Ethernet Network and USB Drive Compatible
Flying Bridge Design Easy Access on 3 Sides of the Tank
Full Wrap Around Bellows To Protect Drive Components
Heavy Duty Welded Steel Base And Catcher Tank
Came out of a high precision facility!
