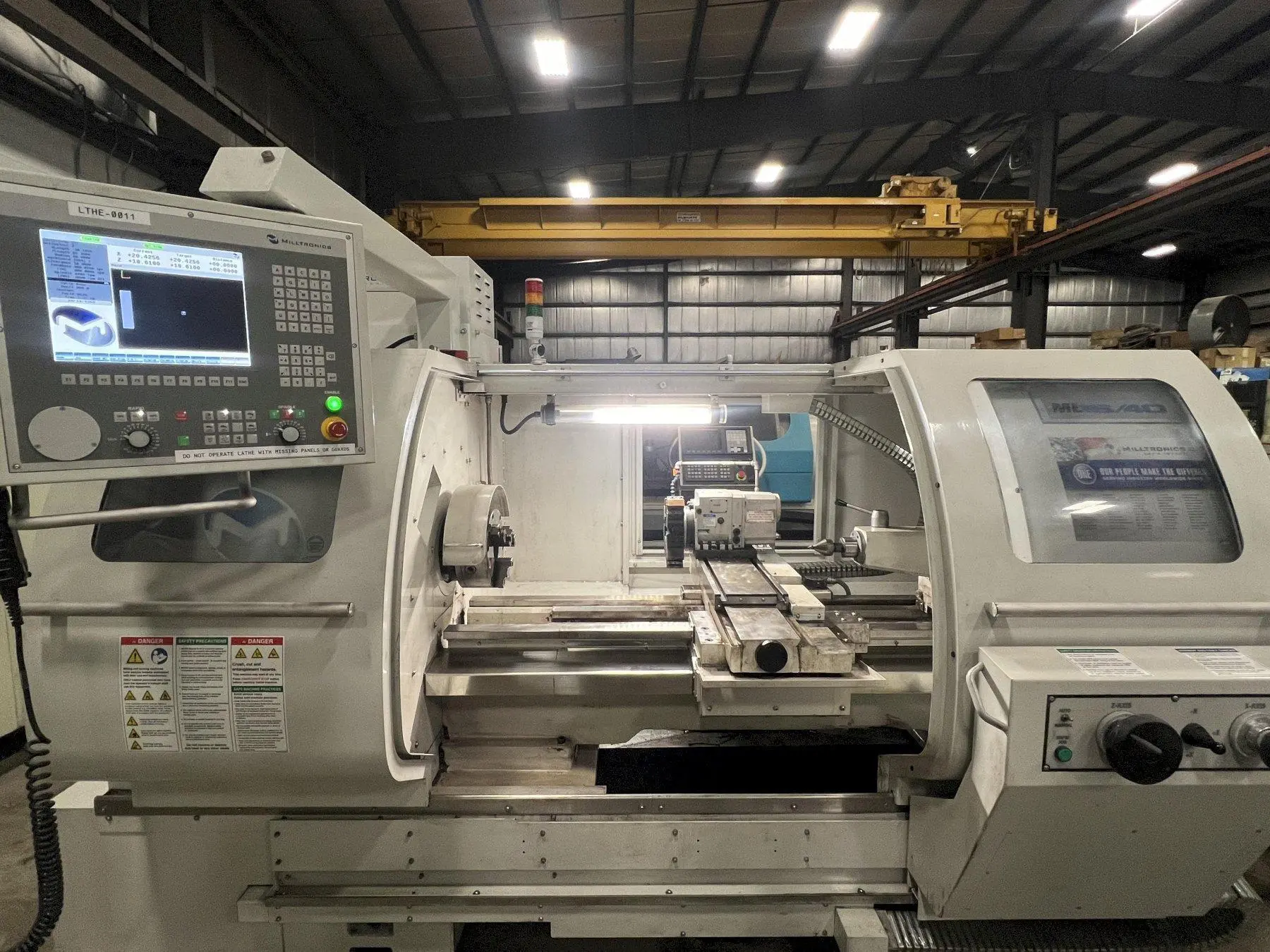

CNC Lathe, used, featuring a 16" swing, 48" machining length, 2-axis control, 8" chuck, 2.04" bar capacity, 18 hp, and 4,000 RPM. Equipped with MILLTRONICS 8200-B, tailstock, 8-position turret, belt grinder, LCD display, auto lubrication, and more.
| Swing | 16" | 406.4 mm |
| Machining Length | 48" | 1,219.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.04" | 51.816 mm |
| Power | 18 hp | 13.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 22" | 558.8 mm |
| Tailstock | Yes | Yes |
| Control | CNC (MILLTRONICS 8200-B) | CNC (MILLTRONICS 8200-B) |
| Dimensions | 120"L x 74"W x 81"H | 120"L x 74"W x 81"H |
| Weight | 6000 pounds | 6000 pounds |
Chuck Size 8 inches
Swing 16 inches
Center Distance 40 inches
Spindle Bore 2.04 inches
X Axis Travel 11 inches
Z Axis Travel 44.5 inches
Spindle Speed (RPM) 4000
Main Motor 18 HP
Turret Capacity 8 STATION 3/4"
8" 3 JAW CHUCK
8 POSITION TURRET
REMOTE HAND WHEEL
BELT GRINDER
DIAMOND PLATE
12" LCD COLOR DISPLAY
TAILSTOCK
FULL ENCLOSURE WITH SLIDING DOORS
A2-5 SPINDLE NOSE
AUTO LUBRICATION
FLOOD COOLANT
SOLID MODEL GRAPHIC DISPLAY
USB PORT
GAP BED DESIGN
CONSTANT SURFACE SPEED
