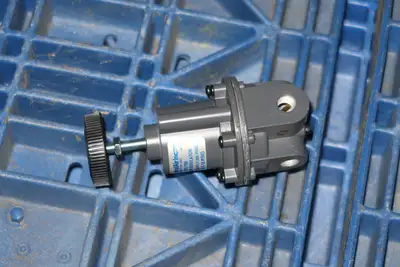

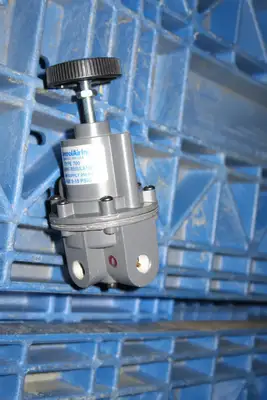

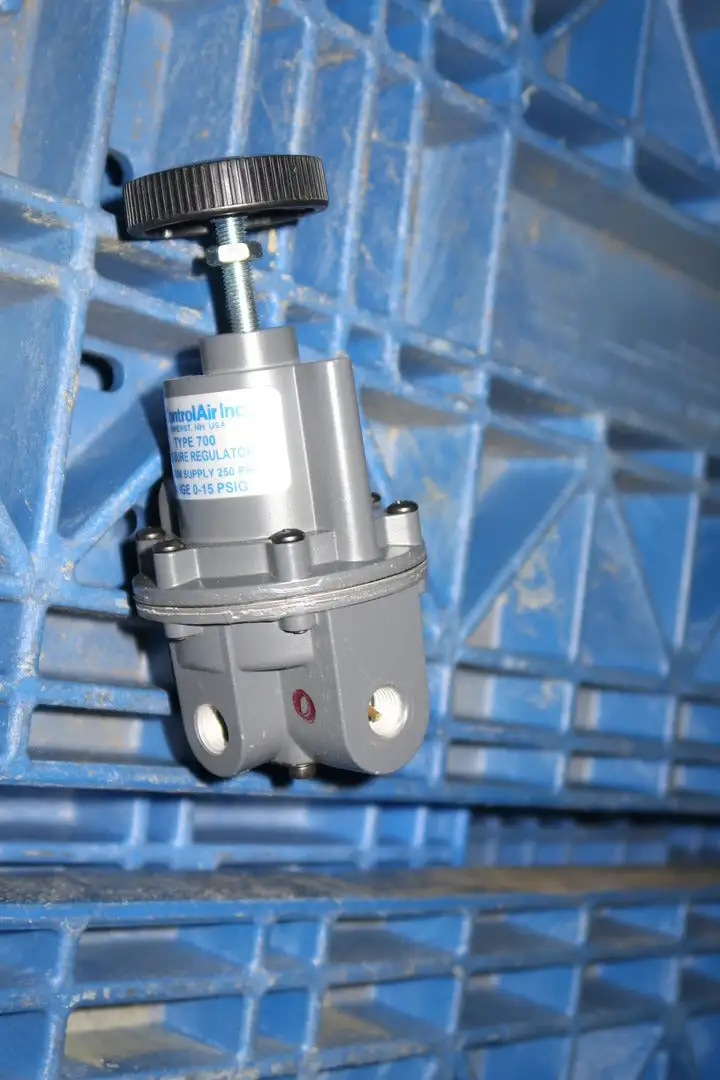

NEW CONTROL AIR INC. 700-BC

Flow Capacity: 80 scfm (2,264 Nl/min)
Exhaust Capacity: 4 scfm (120 Nl/min) [downstream pressure 5 psi (3.5 bar) above set pressure]
Sensitivity: 1/8" (3.2 mm) water
Effect of Supply Pressure Variation on Output: Less than 0.1 psi (0.007 bar) for 100 psi (6.7 bar) change
Air Consumption, Maximum: Steady State: From 1.0 to 12.5 scfh (30 to 375 Nl/hr), depending on output pressure range
Supply Pressure: 250 psi (17.5 bar)
Operating Temperature: -40 deg. F to 160 deg. F (-40 deg. C to 71 deg. C)
Output Pressure Range: 0-15 psig
Port Size: 1/4"
Mounting: Pipe, Panel, or Bracket
Body Material: Diecast Aluminum Alloy
Internal Components: Stainless Steel, Brass, Plated Steel, Acetal
Diaphragm: Buna-N Elastomer, Polyester Fabric
Knob: Phenolic Plastic
