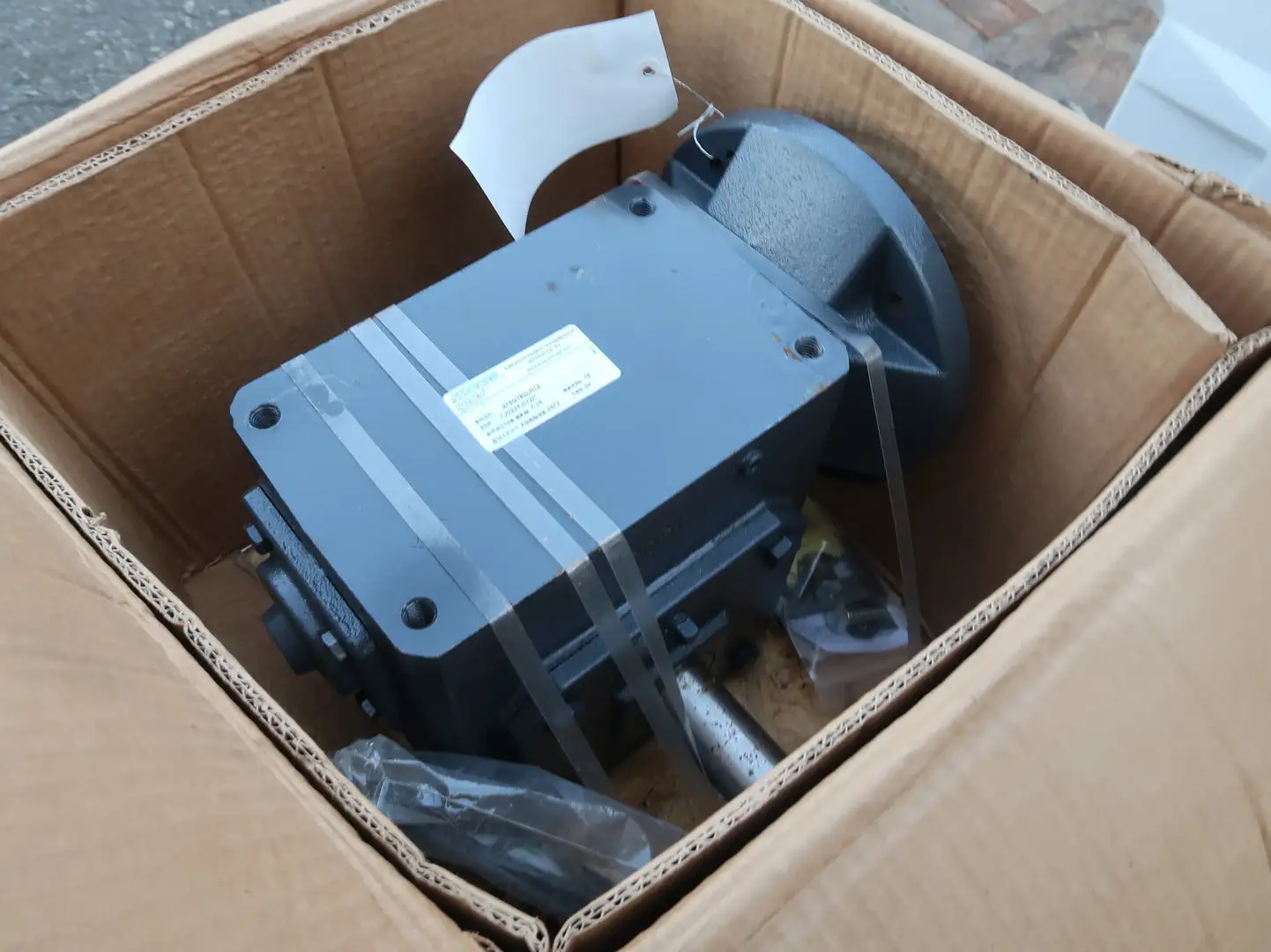

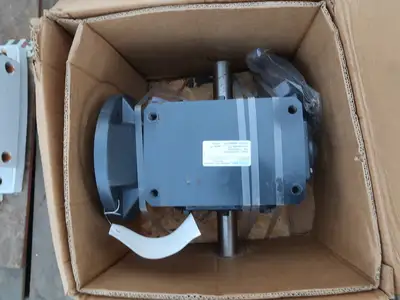

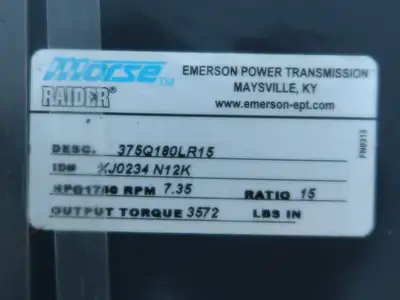

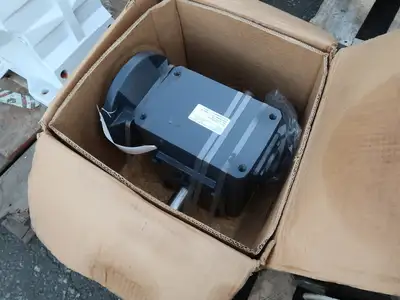

NEW MORSE 375Q180LR15

Ratio: 15:1
Type: Worm Reduction
Center Distance: 3.7500 in.
Reduction: Single
Maximum Input Horsepower: 6.39 hp @ 1750 rpm
Input Type: C-Face Quill
Input Size: 1.1250 in.
Output Type: Solid
Output Size: 1.6250 in.
Output Direction: Double
NEMA/ IEC Frame Size: 182/184TC
Maximum Output RPM: 116.6 rpm
Maximum Output Torque: 3572 in-lbs @ 1750 input RPM
Housing Material: Cast Iron
Overhung Load Capacity: 1678 lb
Keyway Size: 1/4x1/8
Service Factor: 1
Series: Raider
Reducer Size: 375
Mounting Type: No Base
